Pop Up Conference Table AV Box, Power, Data, USB, HDMI - Silver

8 reviews   |   Q&A

$280.31

Free shipping on orders over $99

Part #: TNP125S
Vendor: Altinex
Ships from manufacturer
You will be notified within 1 business day of the expected ship date
Ship To:
Check Arrival Date and Cost
Estimated Arrival
Estimated Cost
Maximum quantity available reached.

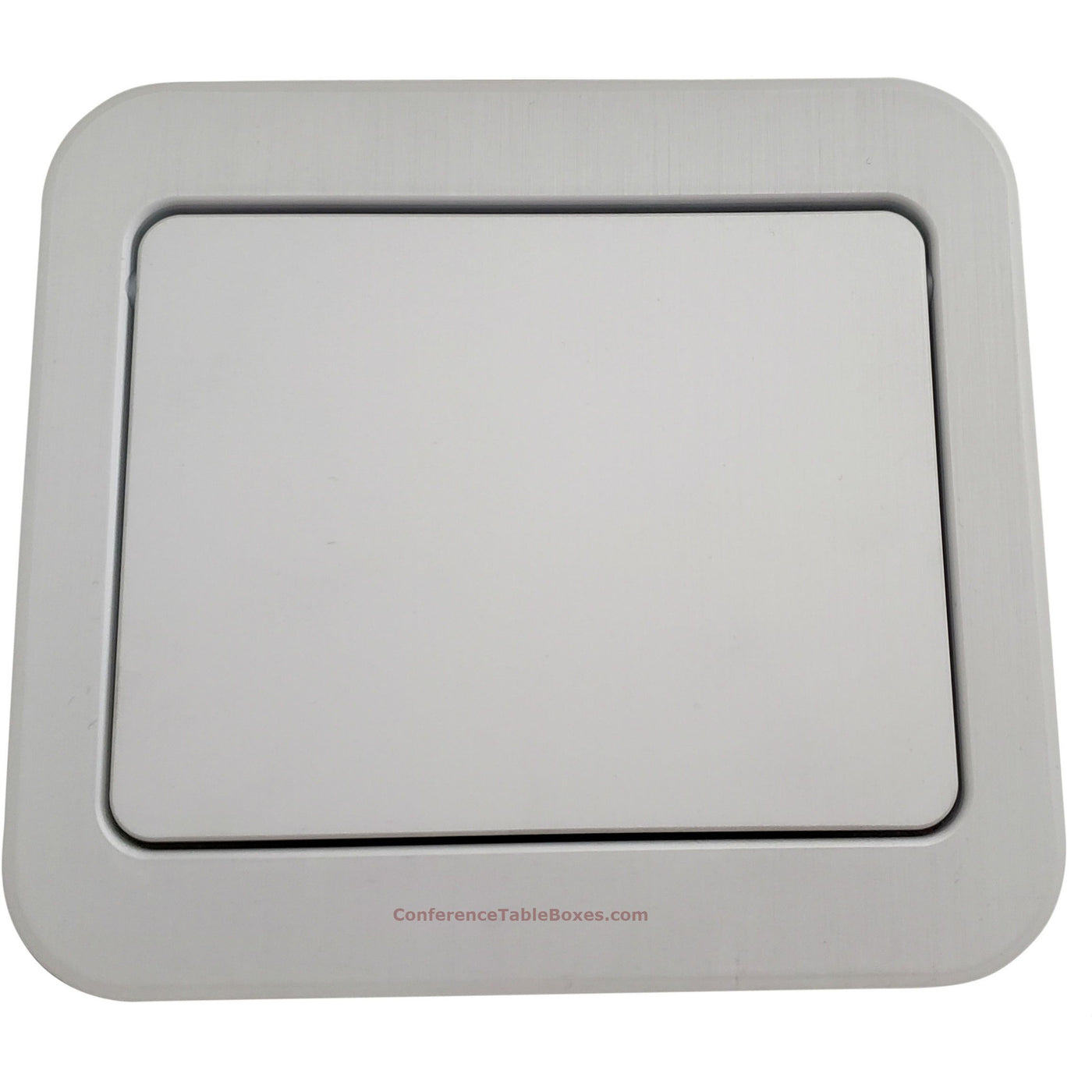

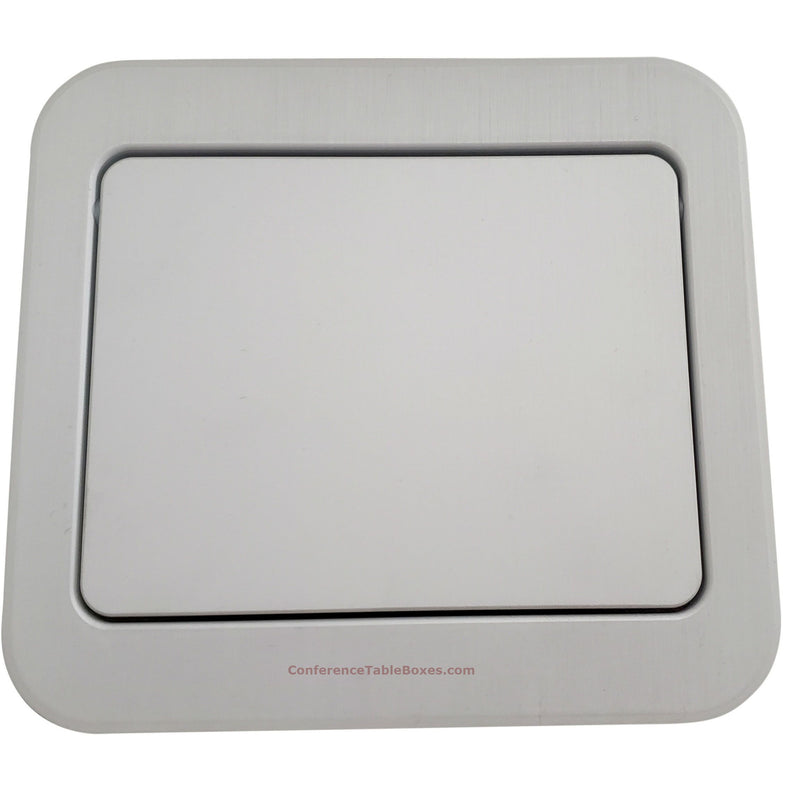

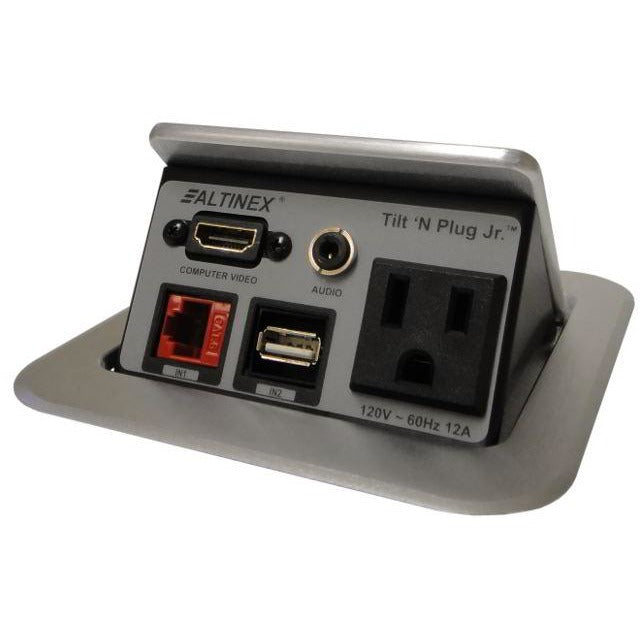

The TNP125S from Altinex is a single sided pop up box enclosure that houses your video, audio, data, and power connections discretely in your conference room table.  The cable management box holds one each of your HDMI, audio, passive USB 3.0, and RJ45 Cat6 data jacks. If you want to turn the USB connection into a charging USB connection, just plug the end of the cable into a USB charger. When in the closed position the silver anodized aluminum top is nearly flush with your table, when you press the top the unit flips up at a 45 degree angle so you can plug in your connections. To close, unplug your connections and press the top till it latches and it is back to being hidden in your table. The hydraulic spring provides a super smooth and quiet operation for opening and closing.

The pop up can be installed in table thicknesses up to 2.25", if your table is thicker than this you will need to thin down the table where the pop up is to be installed. After cutting the 4.5" x 4.2" hole in your table, place the pop up in the hole, then secure the unit to the underside of the table with the included brackets. Your cables can then be plugged in, the audio video cables are 6' long with male ends, the power is 9' long.

The tilt up box has been UL certified to work in the USA, and cUL certified for installations in Canada. The pop up can be installed in any table surface or podium that wants a concealed way to manage your connections in an attractive, functional, and affordable pop up for nearly any table surface.

Color:  Silver anodized aluminum
1 each power, USB 3.0, RJ45, audio, HDMI
6' male ended AV cables, 9' power
UL listed for USA, cUL listed for Canada

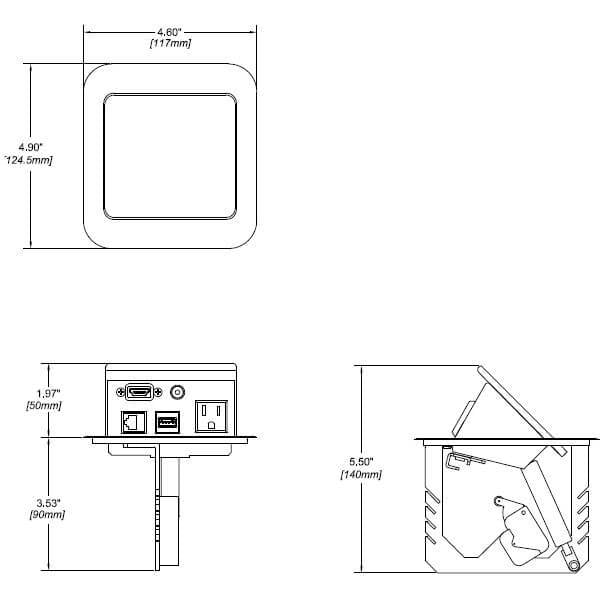

Bezel size:  4.9" x 4.6"
Cutout size:  4.5" x 4.2"
Depth:  3.53"
Pop up height:  1.97"
Works in table thickness up to 2.5"
Weight:  2.8lbs
Includes all mounting hardware
10 year warranty, 1 year on spring

Color:  Silver anodized aluminum
1 each power, USB 3.0, RJ45, audio, HDMI
6' male ended AV cables, 9' power
UL listed for USA, cUL listed for Canada
Bezel size:  4.9" x 4.6"
Cutout size:  4.5" x 4.2"
Depth:  3.53"
Pop up height:  1.97"
Works in table thickness up to 2.5"
Weight:  2.8lbs
Includes all mounting hardware
10 year warranty, 1 year on spring
