Pop Up Conference Table AV Box, 2 Power, 1 Data, 1 HDMI, 2 USB - Black

28 reviews   |   Q&A

$409.28

Free shipping on orders over $99

Part #: TNP329C2
Vendor: Altinex
Maximum quantity available reached.

The TNP329C2 from Altinex is a single sided pop up box enclosure that houses your video, audio, data, and power connections discretely in your conference room table.  The pop up creates a modern and flush look in your meeting room table, when pressed the unit flips up out of the table.

Just the Right Amount of Connections for any Meeting

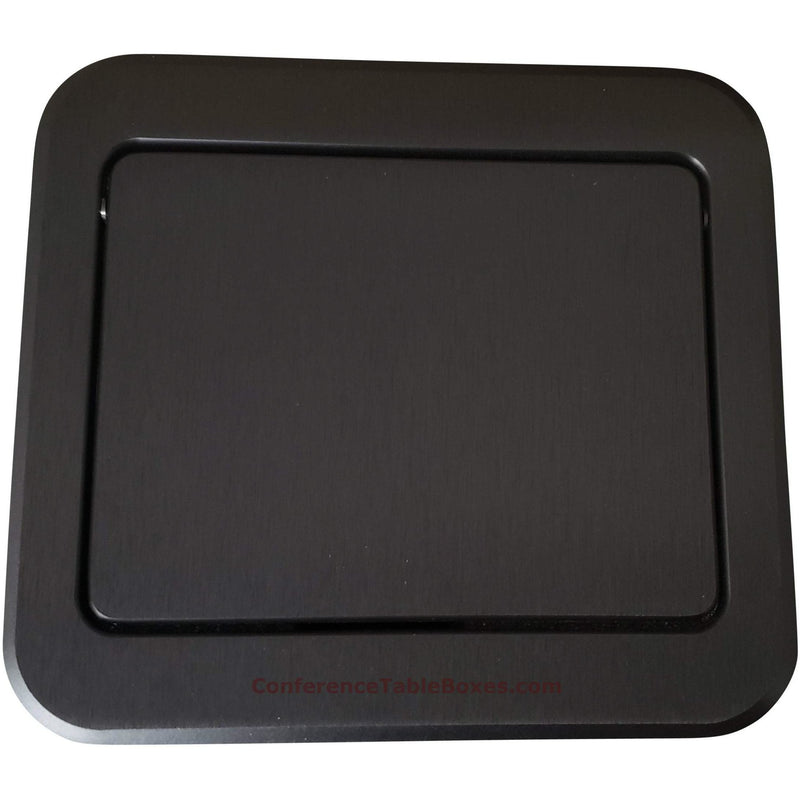

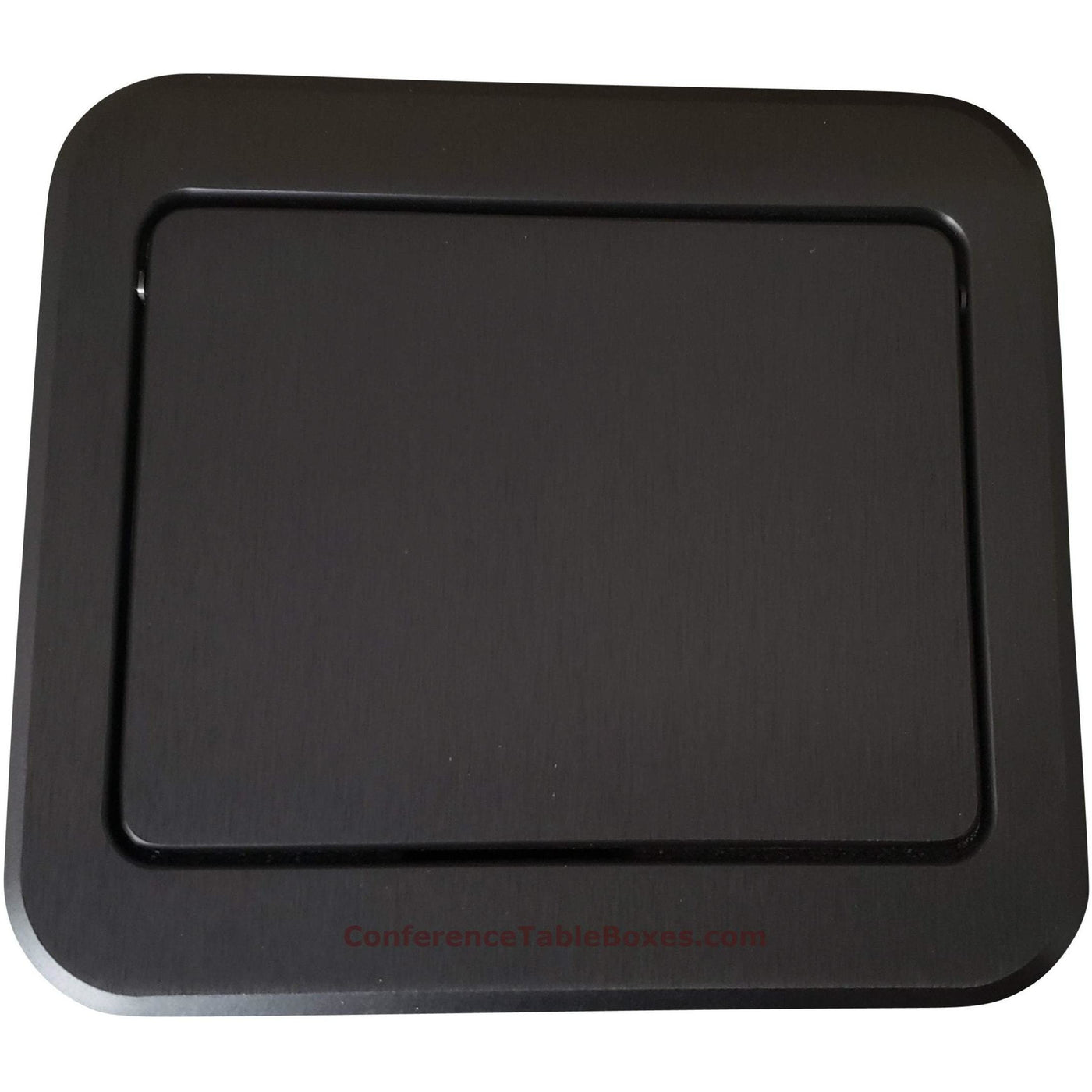

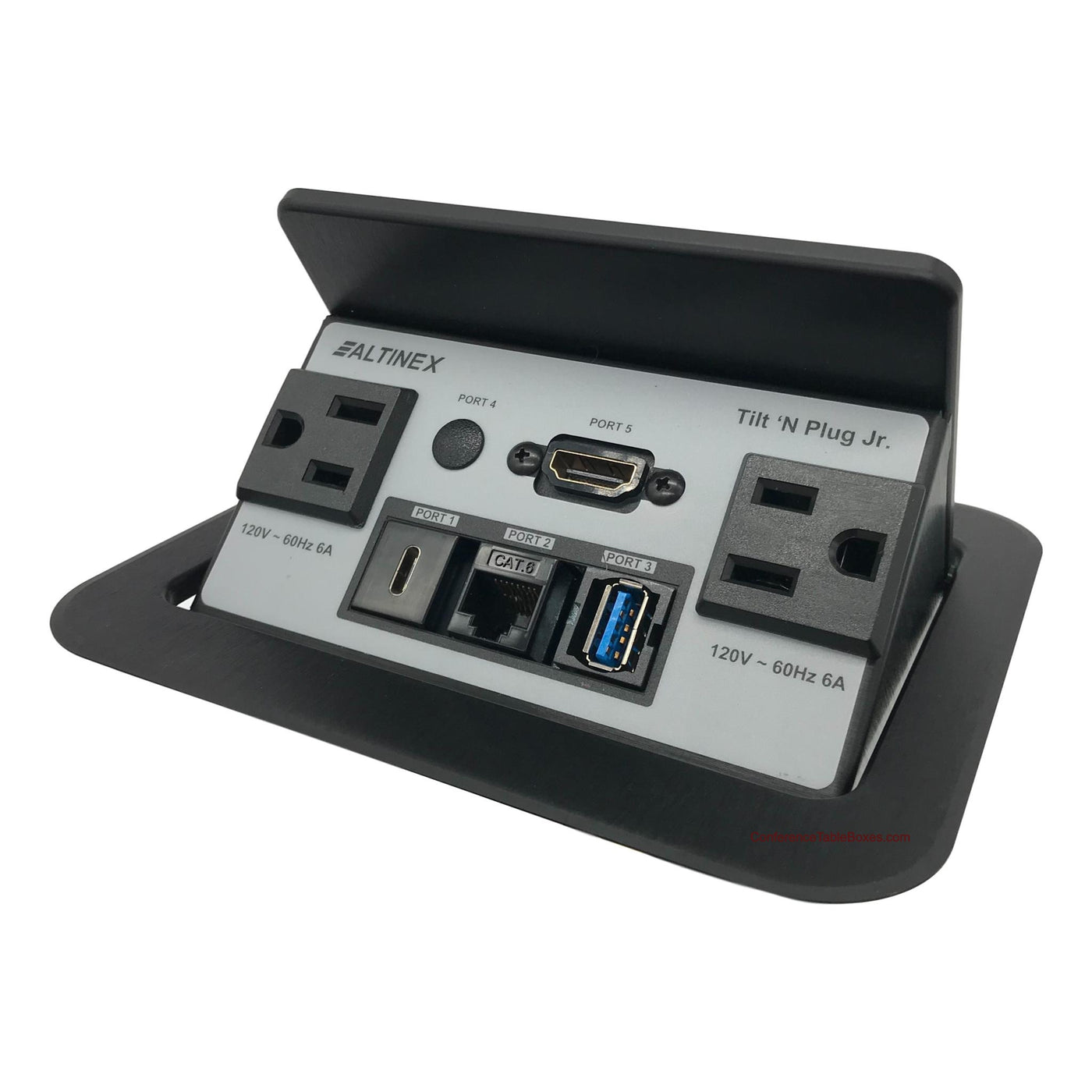

The cable management box holds 2 power, 1 HDMI, 1 USB-A, 1 USB-C, and 1 RJ45 Cat6 data jack. When in the closed position the black anodized aluminum top is nearly flush with your table, when you press the top the unit flips up at a 45 degree angle so you can plug in your connections. To close, unplug your connections and press the top till it latches and it is back to being hidden in your table. The hydraulic spring provides a super smooth and quiet operation for opening and closing.

Easy Installation for USA or Canada

The pop up can be installed in table thicknesses up to 2.25", if your table is thicker than this you will need to thin down the table where the pop up is to be installed. After cutting the 5.3" x 4.8" hole in your table, place the pop up in the hole, then secure the unit to the underside of the table with the included brackets. Your cables can then be plugged in, the video and data cables are 6' long with male ends, the power is a single 9' long 3 prong plug cord.

The tilt up box has been UL certified to work in the USA, and cUL certified for installations in Canada. The pop up can be installed in any table surface or podium that wants a concealed way to manage your connections in an attractive, functional, and affordable pop up for nearly any table surface.

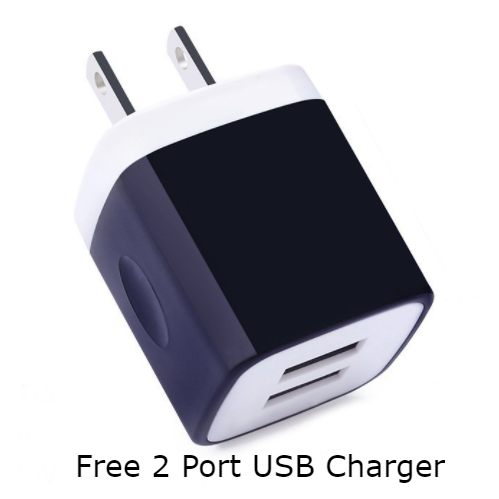

Free Dual Port USB Charger with Each Unit Ordered

If you want to turn the USB connections into USB charging ports, just plug one, or both of the ends of the male USB cables into the included 2 port USB charger.

Customizable if Needed

The connections in this pop up can be changed to meet your needs if required for your application, please contact us for a quote.

Specifications:

Color:  Black anodized aluminum
2 power, 1 RJ45, 1 HDMI, 1 USB-A, 1 USB-C
6' male ended AV cables
Single 9' male ended power cable
UL listed for USA, cUL listed for Canada

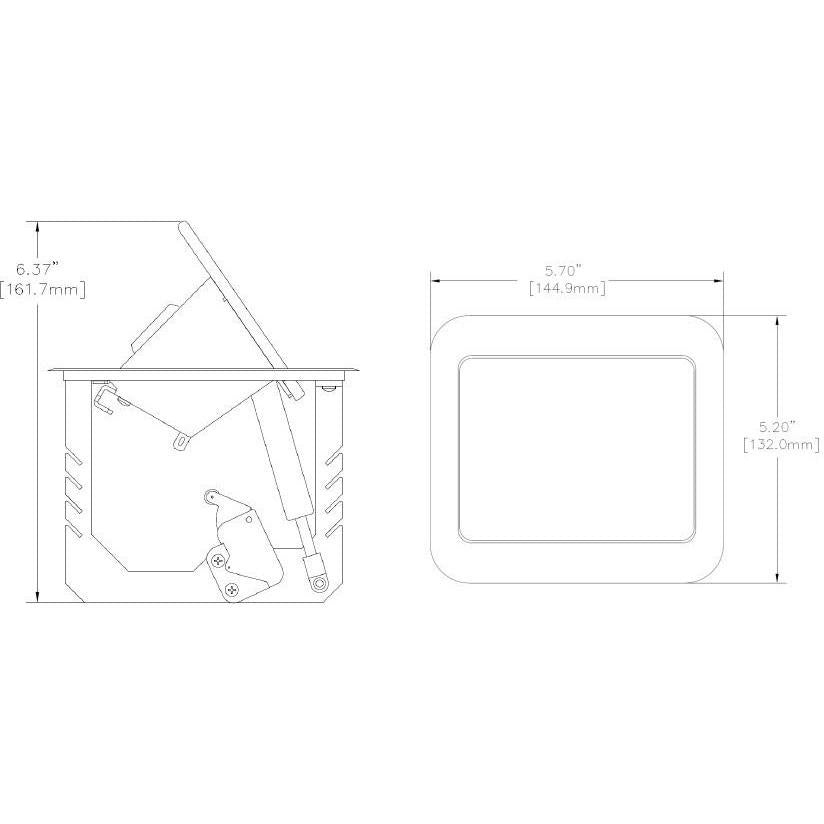

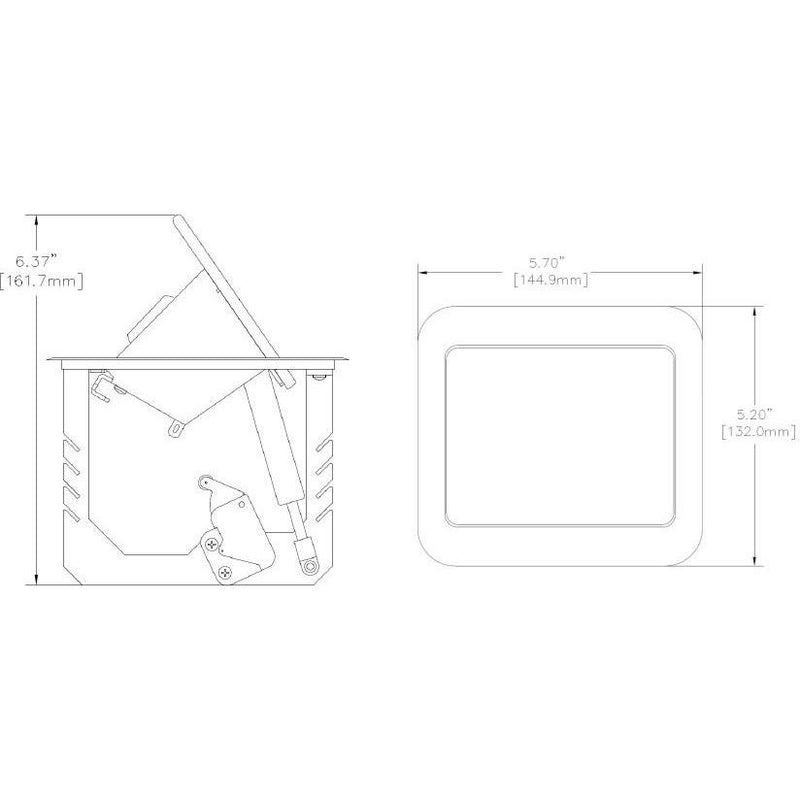

Bezel size:  5.7" x 5.2"
Cutout size:  5.3" x 4.8"
Depth:  3.86"
Pop up height:  2.51"
Works in table thickness up to 2.25"
Weight:  2.8lbs
Includes all mounting hardware
10 year warranty, 1 year on spring
Altinex TNP329C2 User Guide (PDF)
Altinex TNP329C2 Cutout Template (PDF)


Color:  Black anodized aluminum
2 power, 1 RJ45, 1 HDMI, 1 USB-A, 1 USB-C
6' male ended AV cables
Single 9' male ended power cable
UL listed for USA, cUL listed for Canada
Bezel size:  5.7" x 5.2"
Cutout size:  5.3" x 4.8"
Depth:  3.86"
Pop up height:  2.51"
Works in table thickness up to 2.25"
Weight:  2.8lbs
Includes all mounting hardware
10 year warranty, 1 year on spring
Altinex TNP329C2 User Guide (PDF)
Altinex TNP329C2 Cutout Template (PDF)
