Pop Up Charging Station Box with 2 Power and 2 Charging USB - Silver

  |   Q&A

$256.50

Free shipping on orders over $99

Part #: TNP155S
Vendor: Altinex
Ships directly from manufacturer
Maximum quantity available reached.

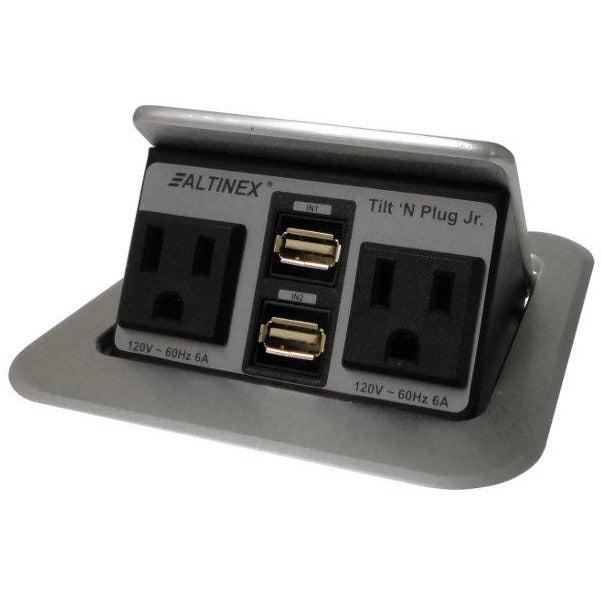

The TNP155S from Altinex is a single sided pop up box enclosure that houses your charging USB and power connections discretely in your conference room table.  The cable management box holds two power outlets, and two charging USB ports. When in the closed position the silver anodized aluminum top is nearly flush with your table, the edges are rounded to create a near seamless look.  When you press the top the unit flips up at a 45 degree angle so you can plug in your connections. To close, unplug your connections and press the top till it latches and it is back to being hidden in your table. The hydraulic spring provides a super smooth and quiet operation for opening and closing.

Included with your order is the Altinex PS5594UB 4 port charging USB hub. Simply connect the USB cable ends from table box into this hub to turn the USB ports in the pop up into charging USB ports. The smart charging hub provides up to 8 amps with a single port having a max charge of 2.4 amps.

The pop up can be installed in table thicknesses up to 2.25", if your table is thicker than this you will need to thin down the table where the pop up is to be installed. After cutting the 4.5" x 4.2" hole in your table, place the pop up in the hole, then secure the unit to the underside of the table with the included brackets. Your cables can then be plugged in, the USB cables are 6' long with male ends, the power is a single 9' long 3 prong cord.

The tilt up box has been UL certified to work in the USA, and cUL certified for installations in Canada. The pop up can be installed in any table surface or podium that wants a concealed way to manage your connections in an attractive, functional, and affordable pop up for nearly any table surface.

Color:  Silver anodized aluminum
Connections: 2 power, 2 charging USB
6' male ended USB 3.0 cables
Single 9' power 3 prong cord
Includes 4 port USB charging hub
UL listed for USA, cUL listed for Canada
Bezel size:  4.9" x 4.6"
Cutout size:  4.5" x 4.2"
Depth:  3.53"
Pop up height:  1.97"
Works in table thickness up to 2.5"
Weight:  2.8lbs
Includes all mounting hardware
10 year warranty, 1 year on spring

Color:  Silver anodized aluminum
Connections: 2 power, 2 charging USB
6' male ended USB 3.0 cables
Single 9' power cable
Includes 4 port USB charging hub
UL listed for USA, cUL listed for Canada
Bezel size:  4.9" x 4.6"
Cutout size:  4.5" x 4.2"
Depth:  3.53"
Pop up height:  1.97"
Works in table thickness up to 2.5"
Weight:  2.8lbs
Includes all mounting hardware
10 year warranty, 1 year on spring
