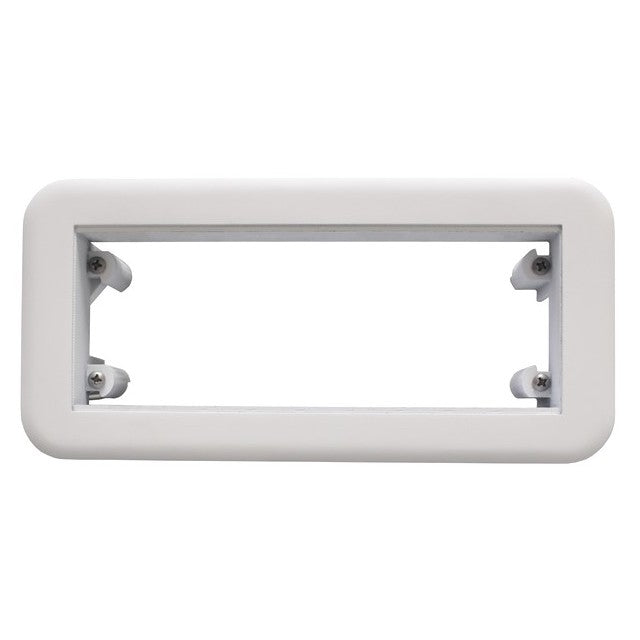

The Altinex TB100-001 as an empty modular conference table cable for that was designed for use with Altinex Table Buddy Snap-on Connectors. This fully customizable frame allows for a variety of the top Audio Video connections available to be instantly at the ready in your conference room table. This includes: HDMI, USB, RJ45, Power, Data, DisplayPort and beyond.
Built for Growth

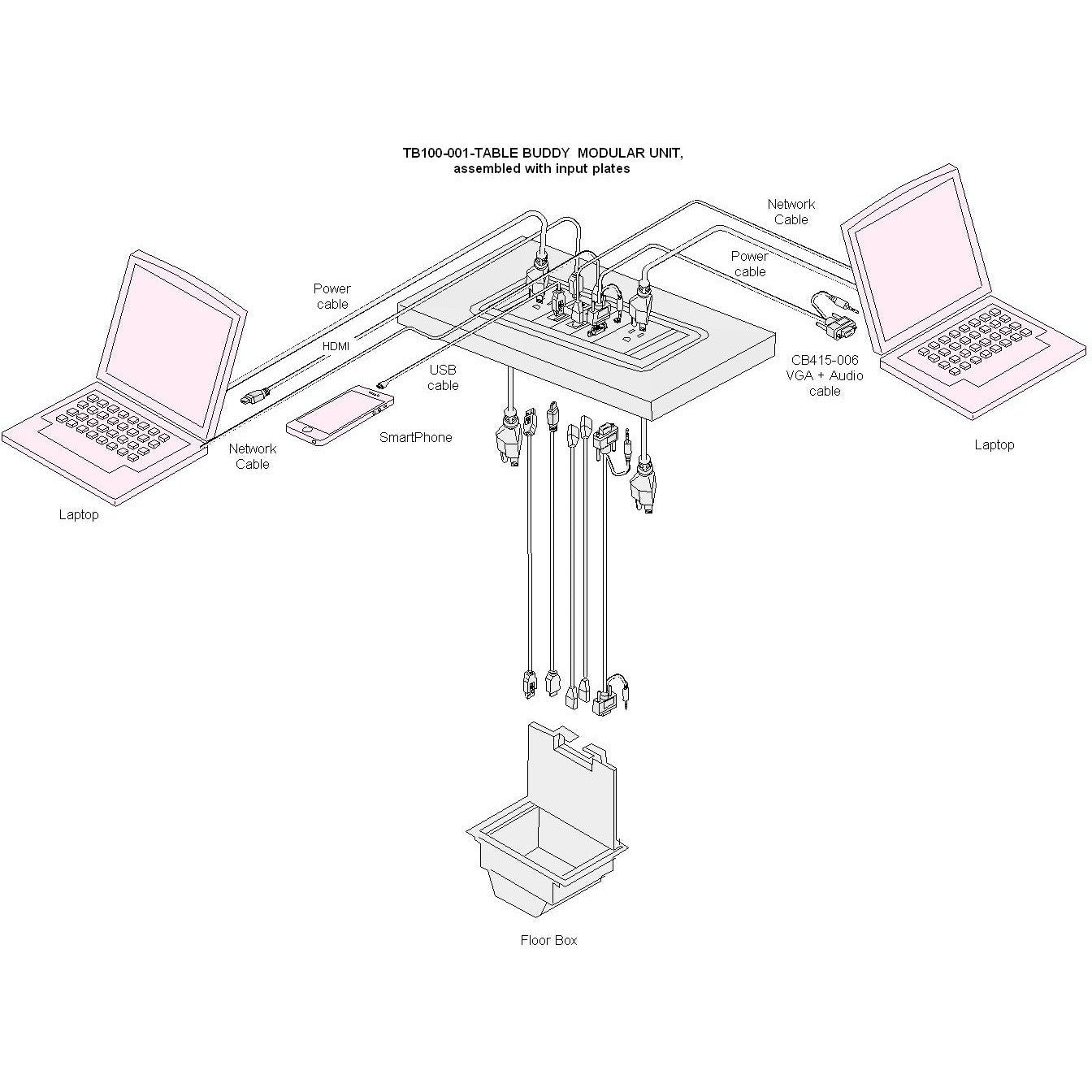

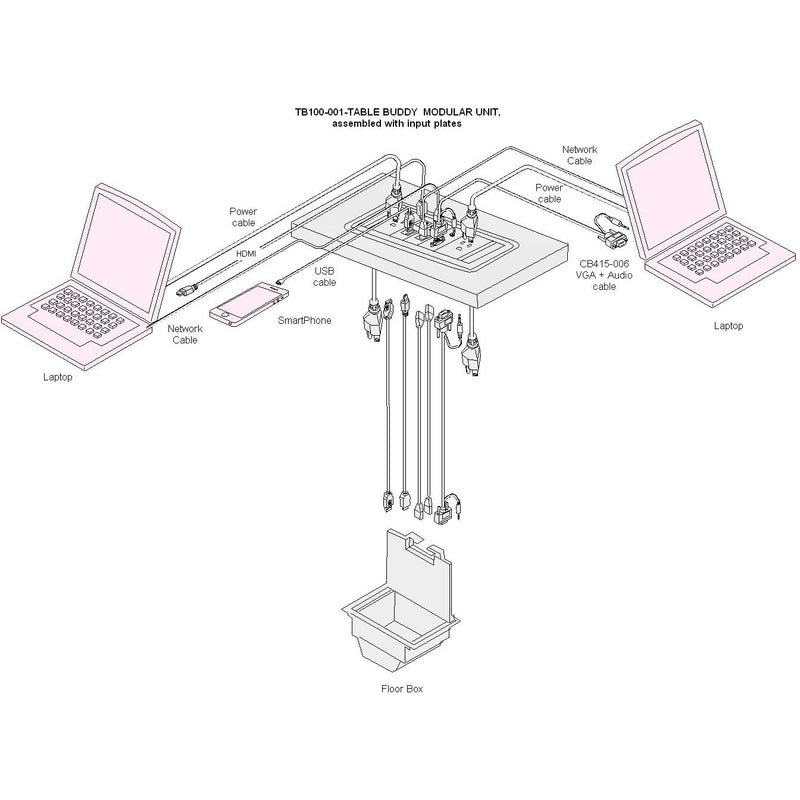

By being a blank frame, the TB100 series of frames allows users to get the exact connections they need now, while offering complete customization in the future as new technology comes out. The snap-in modules are flush with the surface of the unit coupler connectors, allowing cables to connect to the presentation system underneath the surface and have easy user access to connectors on the table’s surface.
To install cut an 8.6" x 3.2" hole using the cutout template. Next, place the box in the hole and use the included two brackets to secure to the underside of the table. The connections simply snap in and out of the box with no tools required, the connections can even be changed while the box is installed. The box is backed by an industry leading 10-year warranty.
Want help building a custom table box? Just not finding exactly what you want? If you need help finding the perfect table box with your exact connections, we would love to help. Please contact us via live chat, or call 888-507-5957.
|Device: Blank Modular Frame for Altinex Table Buddy Boxes
|Color: White matte plastic

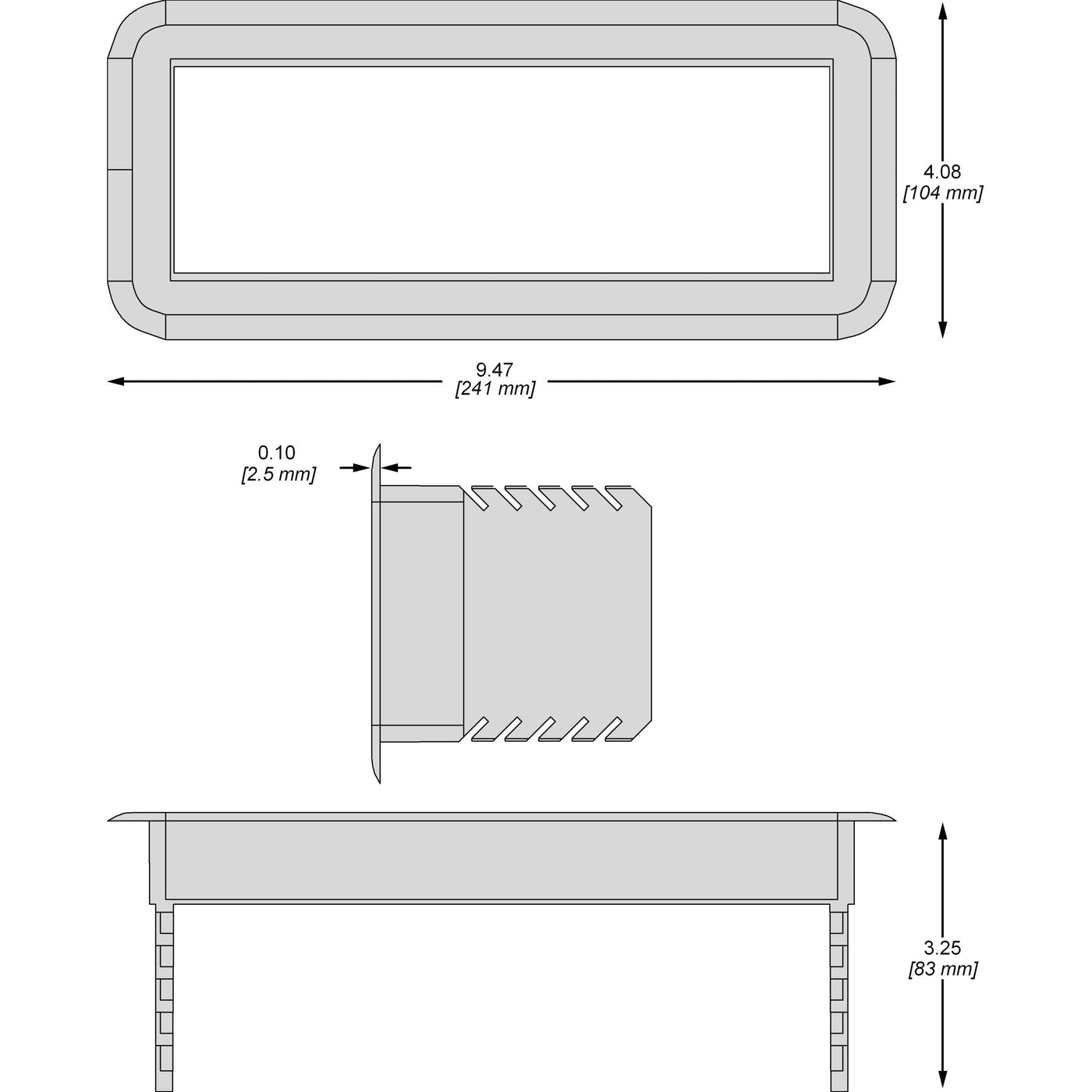

|Top dimensions: 9.47" x 4.08"
|Top thickness: .1" thick with beveled edge
|Cutout dimensions: 8.6" x 3.2"
|Configurable for future changes
|Made in the USA
|Includes: Box and Mounting Hardware
|10 year warranty
Device: Blank Modular Frame for Altinex Table Buddy Boxes
Color: White matte plastic
Top dimensions: 9.47" x 4.08"
Top thickness: .1" thick with beveled edge
Cutout dimensions: 8.6" x 3.2"
Configurable for future changes
Made in the USA
Includes: Box and Mounting Hardware
10 year warranty
