Pop Up Conference Table Box with 2 Power, 1 HDMI, 1 USB-C, Black

  |   Q&A

$358.72

Free shipping on orders over $99

Part #: TNP150C4
Vendor: Altinex
Made to order
3 to 5 business day lead time to build before shipping
Ship To:
Check Arrival Date and Cost
Estimated Arrival
Estimated Cost
Maximum quantity available reached.

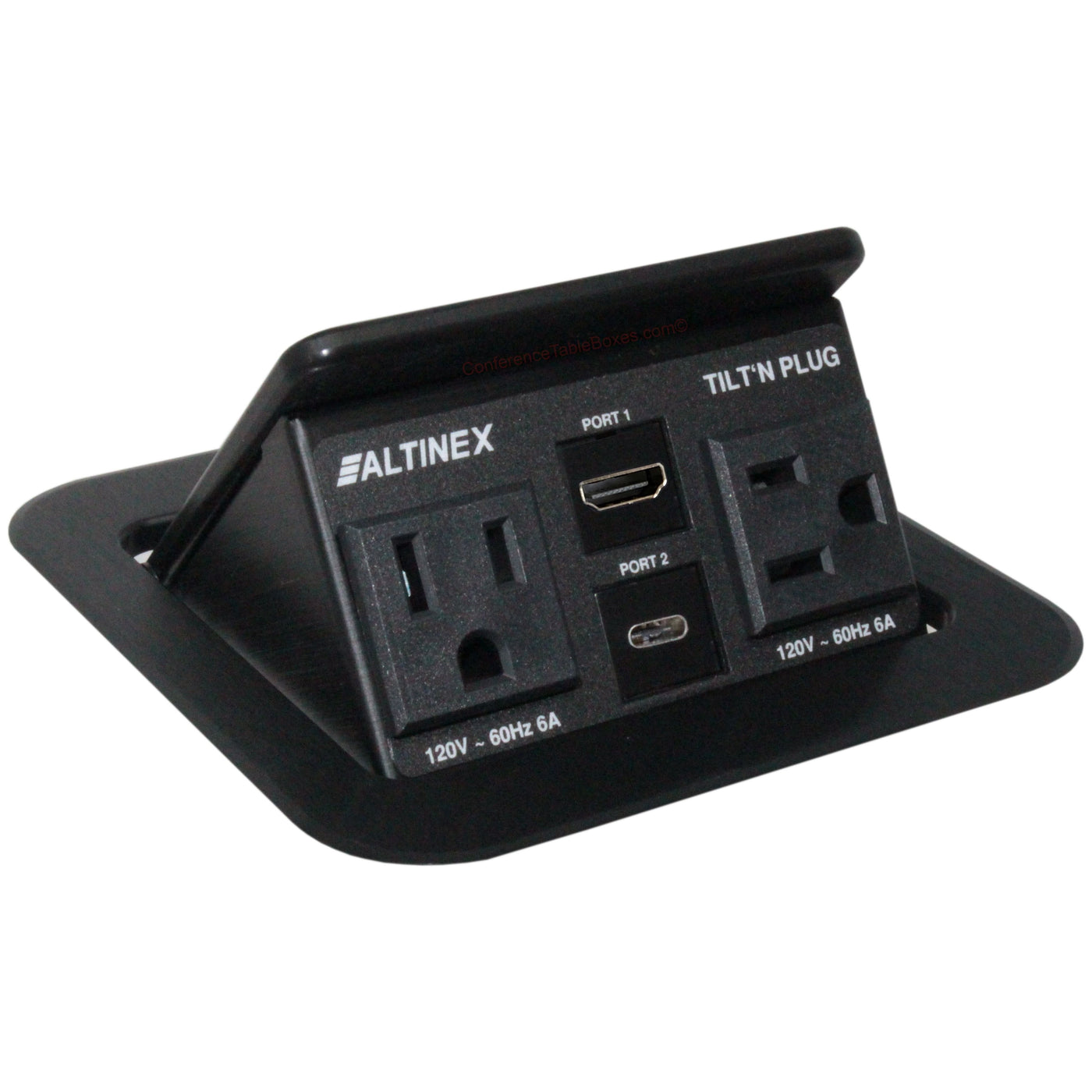

Pop Up Power Box With 1 HDMI and 1 USB-C Port

The TNP150C4 from Altinex is a single sided pop up box enclosure that houses your USB charging ports and power connections discretely in your conference room table.  The cable management box holds two power, 1 HDMI, and 1 USB-C to USB-C male connection. The USB-C can't be used for video, it can be used for data, or for charging if plugged into a charging hub. When in the closed position the black anodized aluminum top is nearly flush with your table, the edges are rounded to create a near seamless look.  When you press the top the unit flips up at a 45 degree angle so you can plug in your connections. To close, unplug your connections and press the top till it latches and it is back to being hidden in your table. The hydraulic spring provides a super smooth and quiet operation for opening and closing.

Easy Installation

The pop up can be installed in table thicknesses up to 2.25", if your table is thicker than this you will need to thin down the table where the pop up is to be installed. After cutting the 4.5" x 4.2" hole in your table, place the pop up in the hole, then secure the unit to the underside of the table with the included brackets. Your cables can then be plugged in, the cables are 6' long with male ends, the power is a single 9' long cord.

UL Certified

The tilt up box has been UL certified to work in the USA, and cUL certified for installations in Canada. The pop up can be installed in any table surface or podium that wants a concealed way to manage your connections in an attractive, functional, and affordable pop up for nearly any table surface.

Color:  Black anodized aluminum
Power: 2 plugs
Connections:  1 HDMI, 1 USB-C
6' USB-C to USB-C male ended cable
6' HDMI to HDMI male ended cable
Single 9' power cable
UL listed for USA, cUL listed for Canada
Bezel size:  4.9" x 4.6"
Cutout size:  4.5" x 4.2"
Depth:  3.53"
Pop up height:  1.97"
Works in table thickness up to 2.5"
Weight:  2.8lbs
Includes all mounting hardware
10 year warranty, 1 year on spring

Color:  Black anodized aluminum
Power: 2 plugs
Connections:  1 HDMI, 1 USB-C
6' USB-C to USB-C male ended cable
6' HDMI to HDMI male ended cable
Single 9' power cable
UL listed for USA, cUL listed for Canada
Bezel size:  4.9" x 4.6"
Cutout size:  4.5" x 4.2"
Depth:  3.53"
Pop up height:  1.97"
Works in table thickness up to 2.5"
Weight:  2.8lbs
Includes all mounting hardware
10 year warranty, 1 year on spring
