Cable Well Wireless Charging 4 AC, 2 USB, Retractable HDMI/Cat6, Silver
| Q&A$967.20
Free shipping on orders over $99

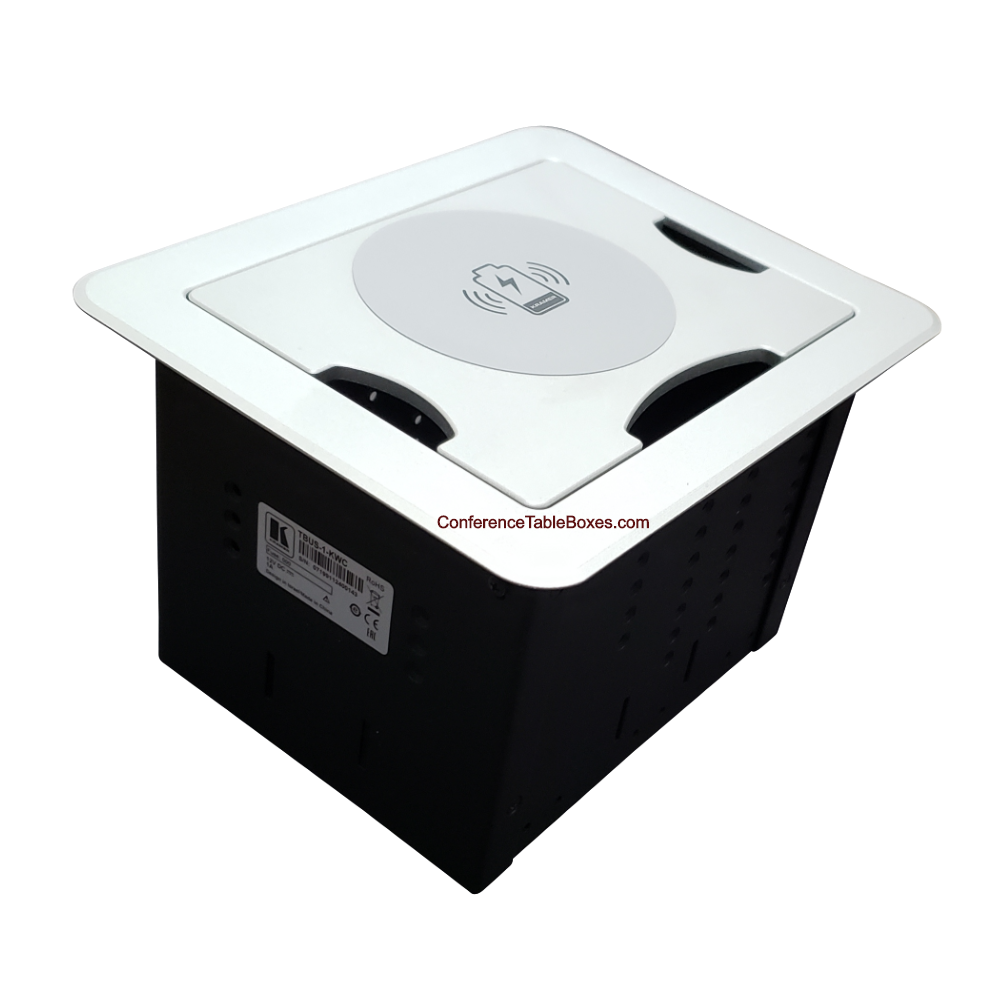

The Kramer TBUS-1-KWC-S5 holds your connections in a stylish and compact box for your conference room or meeting room table. The top is made out of an extremely durable sand blasted silver anodized aluminum finish that is scratch resistant.
Just the Right Amount of Connections

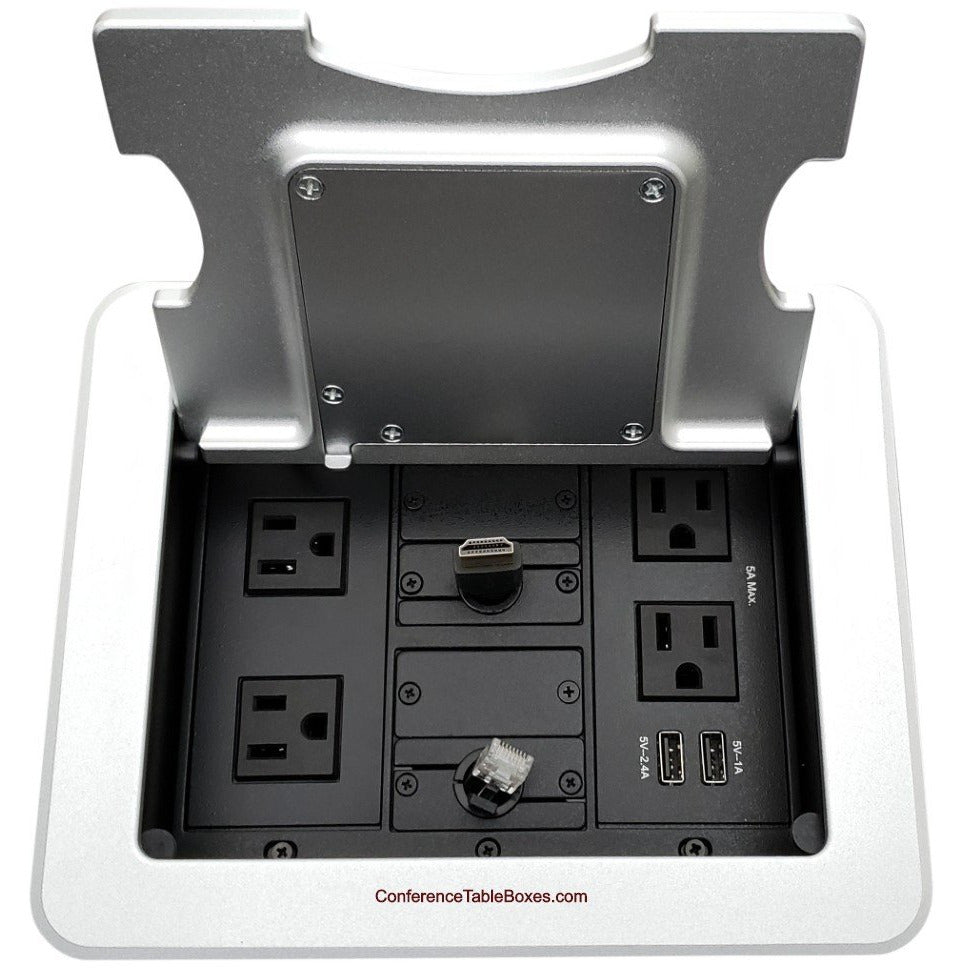

Inside the cable well you will find 4 power outlets, 2 charging USB ports, 1 HDMI, and 1 Cat6 connection. The HDMI and Cat6 connections are retractable cables and pull out an industry leading 5.9', the retractable cables are easy to install since they attach directly to the box under the table.
The 2 USB charging ports are integrated into the power, so no additional power cords are required. There is one 2.4 Amp fast charging port, and one 1 Amp charging port.

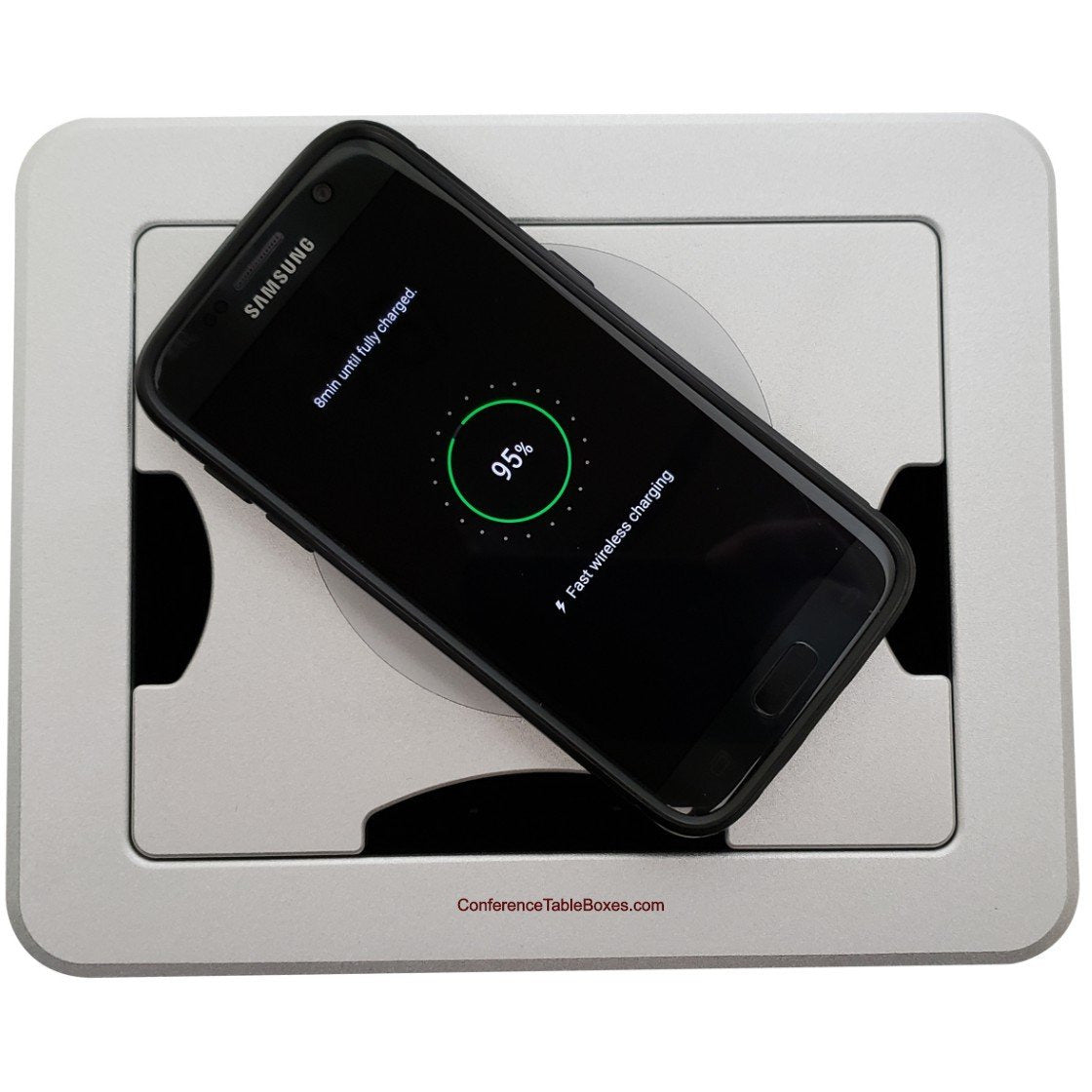

Wireless Charging Spot in Lid
The top of the lid features a QI wireless charging spot that can supply 6 to 15 Watts of power to a QI enabled phone. QI can also charge though any plastic phone case by simply setting the phone on the QI charging spot.
There are 3 openings in the lid that allows you to keep cables plugged in and the lid closed. An example where this is a perfect scenario, is if you will always have a phone plugged in that sits on your table next to the box.
The top bezel is only .06" thick creating a near flush and sleek appearance in the table.
Easy Installation

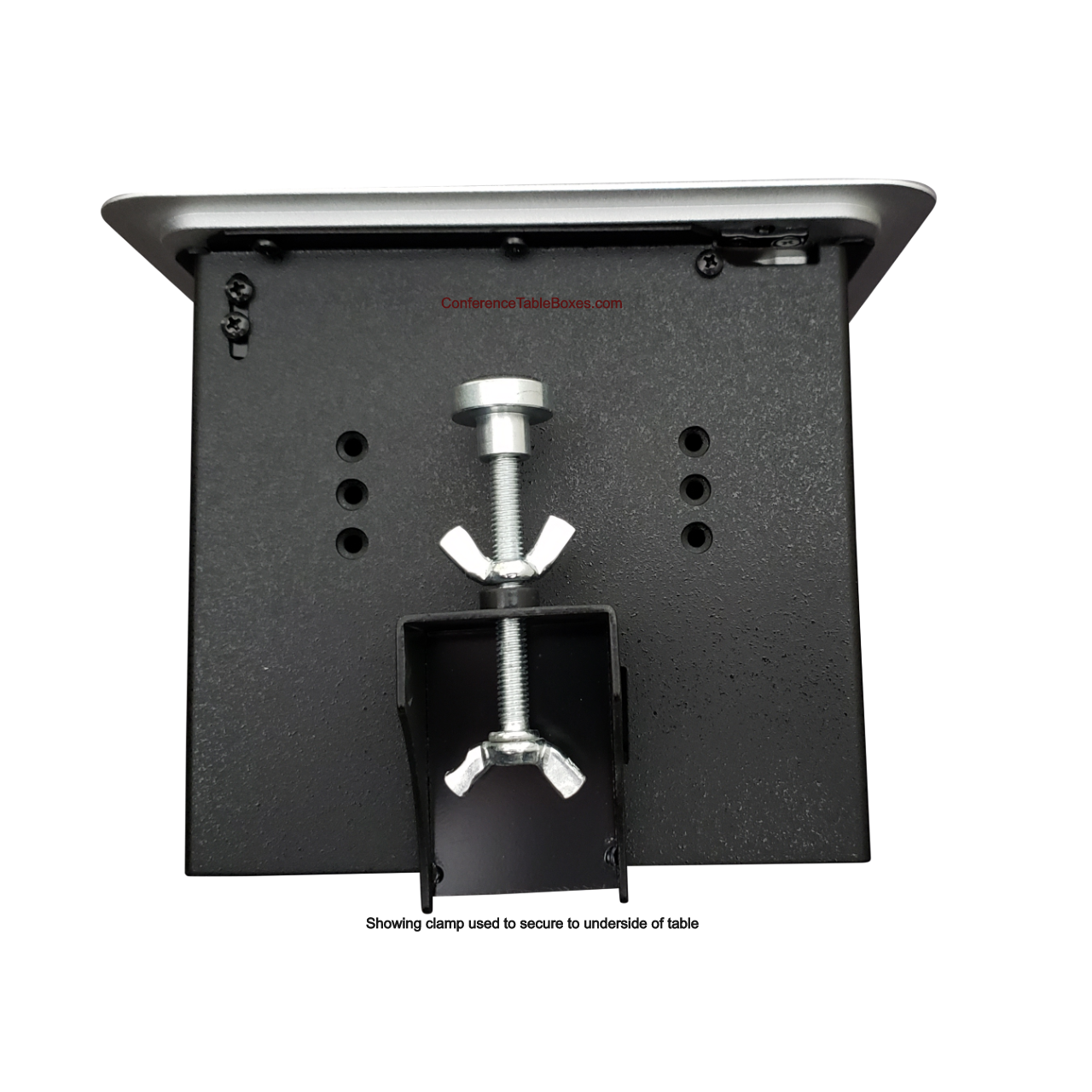

Installing the box is a quick and simple process, cut your hole with the included metal template and place the box in the cutout. Use the supplied bracket to attach to the side of the box, you then can tighten the brackets to the bottom of your table to make the box secure so it won't move. The box can be installed in tables with a thickness of up to 3". There are two 6' long power cables, the HDMI and Cat6 connections are female on the backside making it a snap to just plug in your own cables to complete installation.
The box is modular so you can change the connections in the box down the road if your requirements change, or new technologies become available. The box and the connections inside have a long 7 year warranty.
Customizable
Like the box but need different connections? Just not finding exactly what you want? If you need help finding the perfect table box with your exact connections, we would love to help. Please contact us via live chat, or call 888-507-5957.
Specifications:
Color: Sand blasted silver anodized aluminum
Power outlets: 4
USB charging: 2
Wireless charging QI spot in lid
5.9' retractors: 1 HDMI, 1 Cat6
Connections are female on the back side
Bezel size: 8.07" x 6.69"
Depth: 5.2"
Cutout size: 7.52" x 5.98"
Works in tables up to 3" thick
Opening in lid for cable pass through
Connections inside are height adjustable
Two 6' power cords with 3 prong plug
All mounting hardware included
cUL listed, #E226674
Configurable for future changes
7 year warranty
Specifications (PDF)
User Manual (PDF)
Cutout Template (PDF)
Color: Sand blasted silver anodized aluminum
(2) power outlets inside the box
(2) charging USB ports
Wireless charging QI spot in lid
5.9' retractors: 2 HDMI, 2 Cat6
Connections are female on the back side
Bezel size: 8.07" x 6.69"
Depth: 5.2"
Cutout size: 7.52" x 5.98"
Works in tables up to 3" thick
Opening in lid for cable pass through
Connections inside are height adjustable
Two 6' power cords with 3 prong plug
All mounting hardware included
cUL listed, #E226674
Configurable for future changes
7 year warranty
Specifications (PDF)
User Manual (PDF)
Cutout Template (PDF)
Kramer TBUS-1-KWC-S5 Specifications (PDF)
Kramer TBUS-1-KWC-S5 User Manual (PDF)
Kramer TBUS-1-KWC-S5 Cutout Template (PDF)
