CRS-PlugNView-DP Active Optical Armored 8K@60 DisplayPort Cable - 50'

  |   Q&A

$520.00

Free shipping on orders over $99

Part #: CRS-PlugNView-DP-50
Vendor: Kramer
Ships from manufacturer
You will be notified within 1 business day of the expected ship date
Ship To:
Check Arrival Date and Cost
Estimated Arrival
Estimated Cost
Maximum quantity available reached.

The Kramer CRS-PlugNView-DP-50 is a high-speed DisplayPort active optical cable (AOC). It features extreme durability and supports resolutions up to 8K@60Hz, 32 Gbps without the need for an external power supply or additional extenders for up to 50 feet.

High Resolution and Data Transfer Rate Over Long Range

This active cable supports resolutions up to 8K@60Hz and data transfer rate up to 32 Gbps over long cable runs up to 50'. It supports the latest display technology including: HDCP 1.4/2.2, HDR-10, HLG, Dolby Vision, deep color, x.v.Color, 5.1/7.1 lossless Dolby TrueHD, DTS-HD Master Audio, and EDID.

Extremely Durable

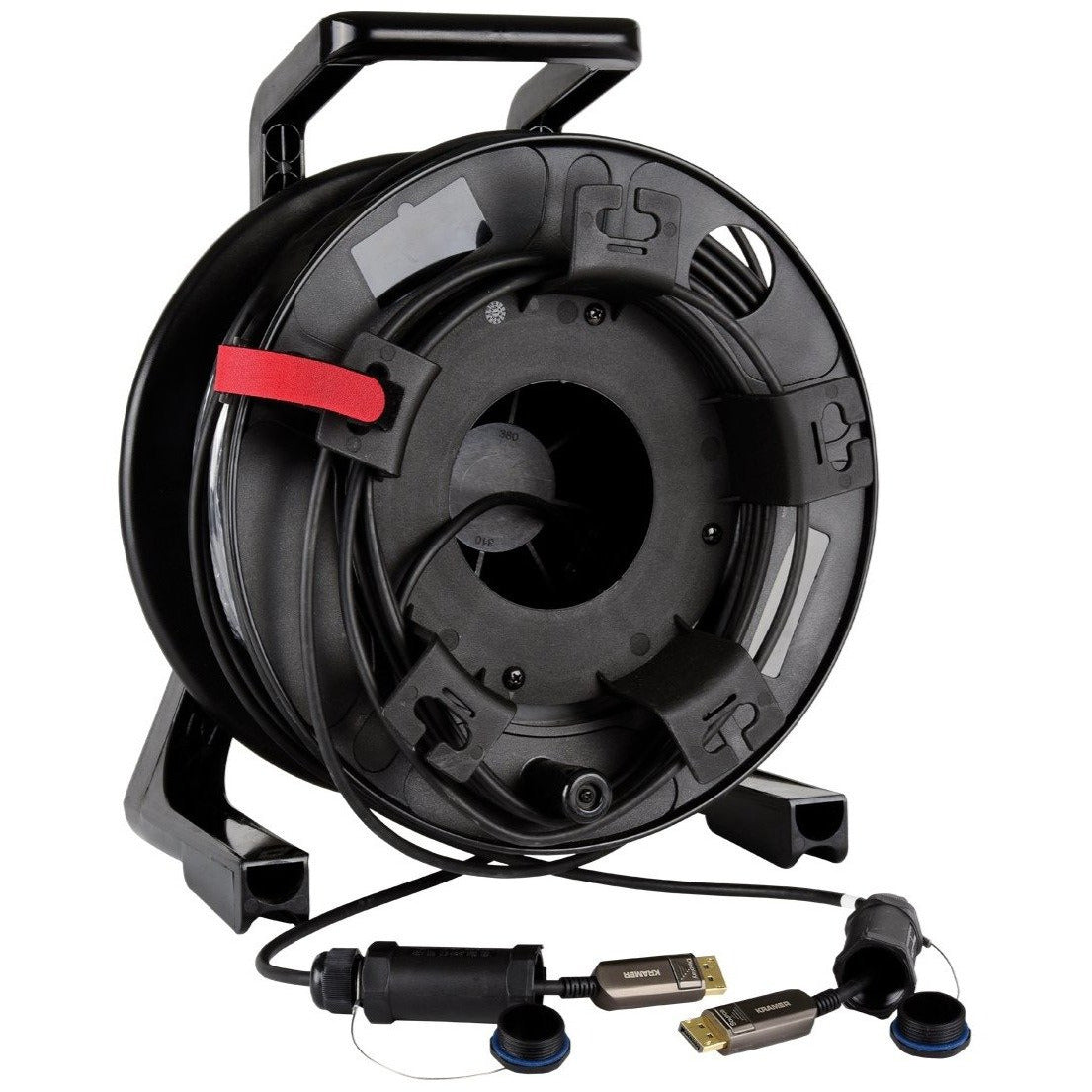

The CRS-PlugNView-DP-50 is designed to withstand the harshest use and abuse from rental and road applications. Integrated, stainless steel, corrugated tube with Kevlar reinforcement ensures the internal optical fibers are always protected. A TPU jacket, heavy-duty connectors and robust waterproof & impact resistant connector covers provide high pulling strength and compression load for maximum durability. For easy removal and storage, the cable is dispensed from a solid, mobile plastic spool.

Plug and Play - No External Power Needed

The cable draws power from the display source via the DisplayPort connector with a power consumption of less than 0.5W for each end. The CRS-PlugNView-DP-50 simplifies long distance AV installations without the need for an external power source.

Specifications:

Length: 50'
Video Resolution: Up to 8K@60Hz
Data Rate: Up to 32 Gbps
Supported Video: HDCP 1.4/2.2, HDR-10, HLG, Dolby Vision, EDID
Supported Audio: Dolby Digital Plus, Dolby TrueHD, DVD Audio,
DTS-HD Master Audio, SA-CD
Connector (Source): Male DisplayPort, 24K gold-plated
Connector (Display): Male DisplayPort, 24K gold-plated
Long Term Crush Resistance: 1000N (225lbs)
Short Term Crush Resistance: 2000N (450lbs)
Bending Radius: 10 D (Dynamic) / 20 D (Static)
Long Term Tensile Strength Test: 400N (90lbs)
Short Term Tensile Strength Test: 800N (180lbs)
No External Power Source (draws from video source and sink)
Dimensions: 9.45" x 7.87" x 12.60"
Weight: 11.5lbs
1 Year Warranty
Kramer CRS-PlugNView-DP Specifications (PDF)

Kramer SKU: ****missing SKU******
Length: 50'
Video Resolution: Up to 8K@60Hz
Data Rate: Up to 32 Gbps
Supported Video: HDCP 1.4/2.2, HDR-10, HLG, DOlby Vision, EDID
Supported Audio: Dolby Digital Plus, Dolby TrueHD, DVD Audio,
DTS-HD Master Audio, SA-CD
Connector (Source): Male DisplayPort, 24K gold-plated
Connector (Display): Male DisplayPort, 24K gold-plated
Long Term Crush Resistance: 1000N (225lbs)
Short Term Crush Resistance: 2000N (450lbs)
Bending Radius: 10 D (Dynamic) / 20 D (Static)
Long Term Tensile Strength Test: 400N (90lbs)
Short Term Tensile Strength Test: 800N (180lbs)
No External Power Source (draws from video source and sink)
Dimensions: 9.45" x 7.87" x 12.60"
Weight: 11.5lbs
1 Year warranty
Kramer CRS-PlugNView-DP Specifications (PDF)
