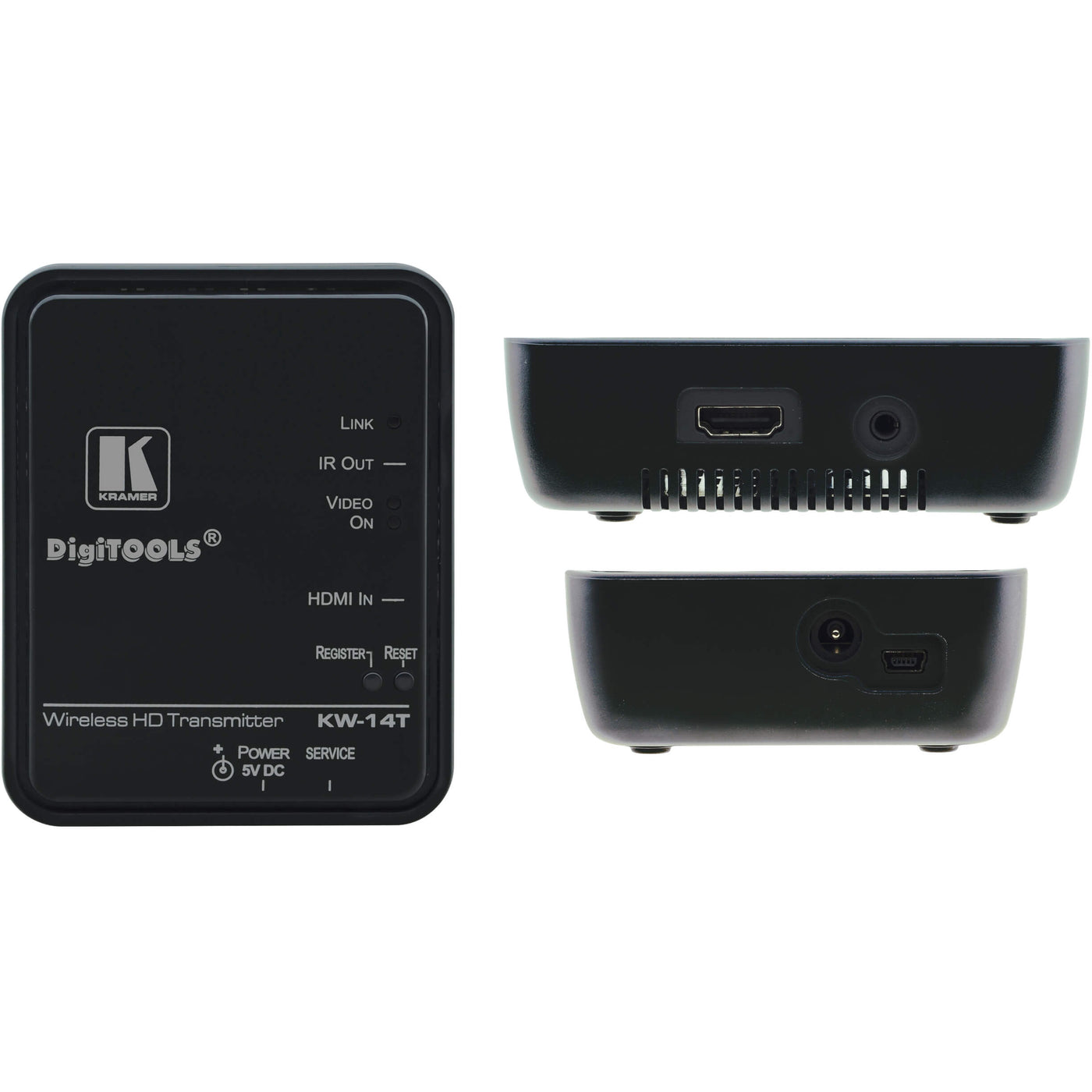

Kramer KW-14T Wireless HDMI Transmitter HD Resolutions - 100'

  |   Q&A

$648.00

Free shipping on orders over $99

Part #: KW-14T
Vendor: Kramer
Ships from manufacturer
You will be notified within 1 business day of the expected ship date
Ship To:
Check Arrival Date and Cost
Estimated Arrival
Estimated Cost
Maximum quantity available reached.

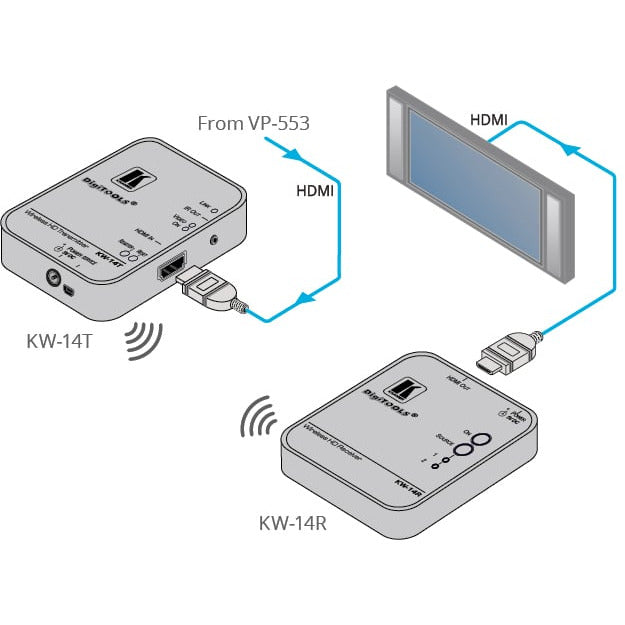

The Kramer KW-14T is a wireless Transmitter that can send HD resolution signals wirelessly up to 100' through walls* and furniture to compatible KW-14R receiver. This short range solution for wireless AV distribution is ideal for office presentations inside of meeting rooms, classrooms, and huddle spaces.

Please note this is just the transmitter, you will need a KW-14R receiver to make this system work.

Ability to Expand Beyond 1 to 1 Signal Distribution

One of the top features Kramer built into the KW-14 extender set, is the option to pair multiple devices together. Users with the need to provide additional sources or displays have the ability to pair up to 4 KW-14R receivers to a single KW-14T transmitter. Equally up to 3 transmitters can be paired to a single receiver, simultaneously. By providing this linking technology, end users can go well beyond point to point signal distribution by having a 1 to many solution or a many to 1 signal solution. This in essence gives you a wireless 1x4 distribution amplifier, so you can display 1 source across 4 displays. And, a wireless switching solution where 3 different sources can be displayed onto 1 screen (1 source at a time).

Features and Benefits

Beyond creating a system that provides many input and output options, Kramer has added a robust set of features to include: 6.75Gbps Data Rates, AES-128 bit encryption, high-quality transmission range up to 100', HDCP compliant, and a virtually zero latency signal transmission.

Simple Setup and Use

Each kit comes pre-paired between the transmitter and receiver, adding additional units is very straight forward process (see user manual). To prevent RF interference with other devices there is Auto Frequency Selection to ensure you are not crossing over to an already in use radio frequency. Auto EDID Adjustment enables you to use a wide array of displays and resolutions. For setup and configuration there is also an OSD (on-screen display) function and included IR remote control.

*Please note, depending on the thickness and materials of the wall, signal degradation and limited distances may occur.

Specifications
Inputs: 1 HDMI connector (KW–14T), internal antenna (KW–14R)
Outputs: 1 IR on a 3.5mm mini jack, internal antenna (KW–14T), 1 HDMI connector (KW–14R)
Video Resolution: Up to 1080p @60hz
Max Data Rate: 6.75Gbps (2.25 Gbps per channel), Deep Color up to 12–bit
Audio Formats: PCM, Dolby Digital 2/0, Dolby Digital 2/0 Surround, Dolby Digital 5.1, Dolby Digital Surround EX, DTS 2–channel, DTS Digital Surround 5.1, DTS 96/24
Audio Rate: Digital Audio from the HDMI input up to 6Mbps
RF Communication Frequency: 5.19 to 5.795GHz
Secure Link: Uses AES–128 bit encryption
System Latency: <1ms
Standards: HDCP 2.0 works with sources that support HDCP repeater mode
Unobstructed Transmission Range: 100'
Compliance Standards: CE, c-UL, UL Listed
Automatic Frequency Selection: Selects the most suitable frequencies to prevent RF interference
Auto EDID Adjustment: To allow multi–screen support.
IR Remote Control: Enables the OSD menu to be displayed on the output display.
Connection Capacity: Up to four receivers can receive from one transmitter simultaneously; up to three transmitters associated with one receiver at any given time
Kramer SKU: 60-0000295
Warranty: 7 Years
Specifications

Inputs: 1 HDMI connector (KW–14T), internal antenna (KW–14R)
Outputs: 1 IR on a 3.5mm mini jack, internal antenna (KW–14T), 1 HDMI connector (KW–14R)
Video Resolution: Up to 1080p @60hz
Max Data Rate: 6.75Gbps (2.25 Gbps per channel), Deep Color up to 12–bit
Audio Formats: PCM, Dolby Digital 2/0, Dolby Digital 2/0 Surround, Dolby Digital 5.1, Dolby Digital Surround EX, DTS 2–channel, DTS Digital Surround 5.1, DTS 96/24
Audio Rate: Digital Audio from the HDMI input up to 6Mbps
RF Communication Frequency: 5.19 to 5.795GHz
Secure Link: Uses AES–128 bit encryption
System Latency: <1ms
Standards: HDCP 2.0 works with sources that support HDCP repeater mode
Unobstructed Transmission Range: 100'
Compliance Standards: CE, c-UL, UL Listed
Automatic Frequency Selection: Selects the most suitable frequencies to prevent RF interference
Auto EDID Adjustment: To allow multi–screen support.
IR Remote Control: Enables the OSD menu to be displayed on the output display.
Connection Capacity: Up to four receivers can receive from one transmitter simultaneously; up to three transmitters associated with one receiver at any given time
Kramer SKU: 60-0000295
Warranty: 7 Years
