4K HDMI over Anywire Transmitter, any 2-conductor cable, 984'

  |   Q&A

$446.25

Free shipping on orders over $99

Part #: TP316-101
Vendor: Altinex
Ships from manufacturer
You will be notified within 1 business day of the expected ship date
Ship To:
Check Arrival Date and Cost
Estimated Arrival
Estimated Cost
Maximum quantity available reached.

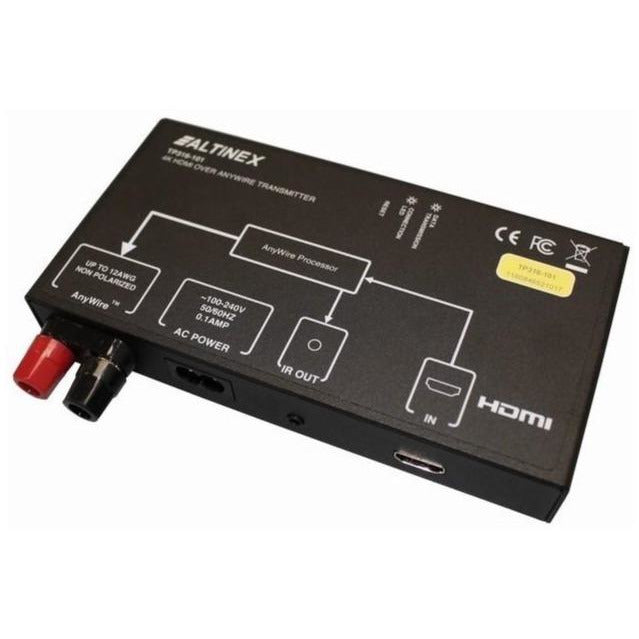

The Altinex TP316-101 is an HDMI over Anywire transmitter. It provides transmission of 4K HDMI signals up to 984 ft. using any 2-conductor cable when paired with Altinex's coordinating TP316-102 receiver (sold separately). The TP316-101 is an easy to install and simple to use solution for many AV installations requiring extended length signal delivery.

High Performance Extender

The TP316-101 transmitter provides stable video transmission up to 4Kx2K over greater distances than straight HDMI cable systems. It features one set of Anywire terminals to transmit HDMI feed over any 2-conductor wire up to 984' when paired with Altinex's coordinating TP316-102 receiver (available for purchase). For added convenience, the TP316-101 provides IR (Infrared) support for remote control of cable TV and related output boxes without corrupting the HDMI signal.

Easy Installation and operation

Using any 2-conductor wire, the TP316-101 is a simple and economical solution. It eliminates the need to splice wires, install expensive connectors, or purchase costly cables. For installation, simply route your wires, expose a little bare wire, and connect them to the red and black terminals (either wire to either terminal). Operation of the TP316-101 does not require any user control or interaction. Connect the HDMI input and the transmitter will scan for the separately purchased receiver, when detected the transmitter automatically pairs to the receiver and begins video transmission for effortless use.

Specifications:

Inputs: Female HDMI, Digital Video + Audio, AC power, C7 M
Outputs: Female HDMI, Female Terminal Post (2), AnyWire Video,
Digital Video + Audio, female 3.5mm Audio, IR (from receiver side)
Included: Transmitter, AC power cord, HDMI cable, IR emitter
Resolutions: 720p, 1080i, 1080p, 4Kx2K
Dimensions: 6.73" x 3.51" x 1.05"
Weight:  1.0 lbs
3 year warranty
User Manual (PDF)

Inputs: Female HDMI, Digital Video + Audio, AC power, C7 M
Outputs: Female Terminal Post (2), AnyWire Video,
IR (from receiver side), female 3.5mm Audio
Includes: Transmitter, AC power cord, HDMI Cable, IR emitter
Resolutions: 720p, 1080i, 1080p, 4Kx2K
Dimensions: 6.73" x 3.51" x 1.05"
Weight:  1.0 lbs
3 year warranty
User Manual (PDF)
