4x1 VC Collaboration Table Box Extender & Auto Switcher, 3 HDMI, 1 USB-C

  |   Q&A

$1,493.88

Free shipping on orders over $99

Part #: DL-SC41UP-BXTX
Vendor: Liberty AV
Ships from manufacturer
You will be notified within 1 business day of the expected ship date
Maximum quantity available reached.

The Liberty DL-SC41UP-BXTX is a multi-format audio/video and USB table box that was designed to accommodate your video teleconference needs. The video resolution is of the highest standard with support for HDMI 2.0b 4K60 4:4:4. The 4 port USB hub can be used for cameras and microphones.

Video Collaboration Connections

The box has 3 HDMI and 1 USB-C input for video, the USB-C supports video and charging up to 40 watts. There is a 4-port USB hub that can switch between the PC hosts automatically, or can be assigned to follow a video input in auto switching mode. This means that when the video is triggered the corresponding USB host will switch as well. The USB-C port supports Alt-DP mode for AV signals as well as USB data and power, when used with a USB 3.2 Gen 1 USB Type C cable.

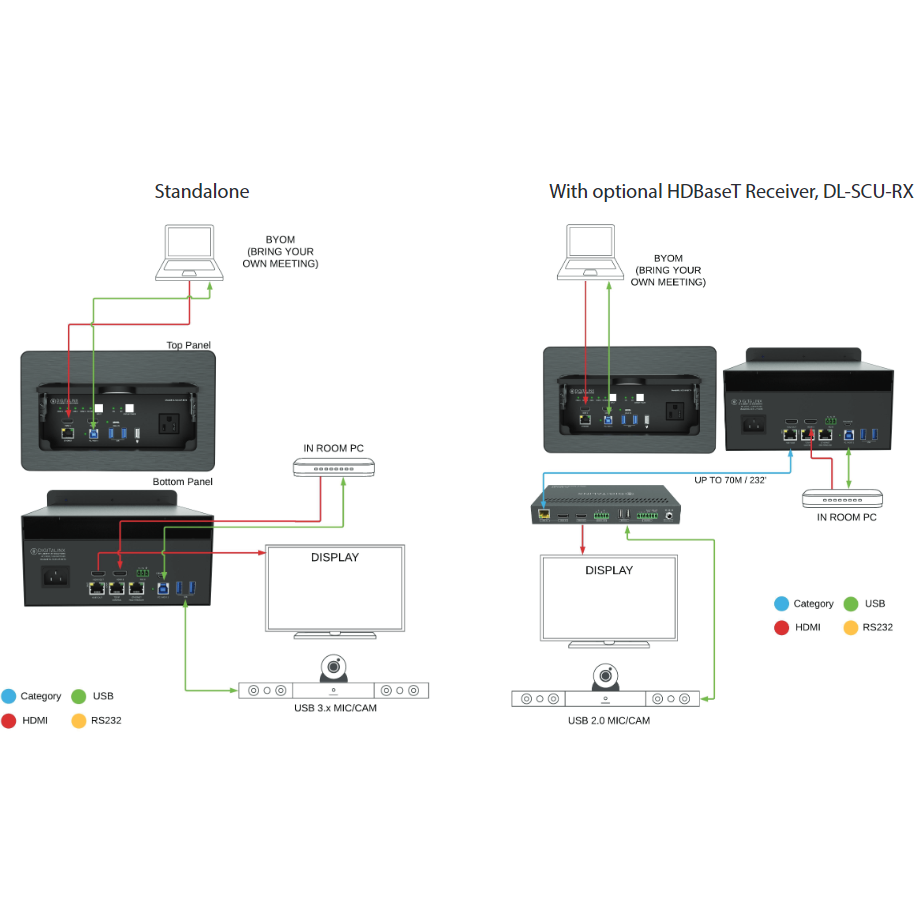

Additionally the box has a built-in transmitter to make it a 5x1 table box, with the two HDMI outputs you can send up to two mirrored images. There is one standard HDMI output, and one HDMI HDBaseT 2.0 output. You can send your signal up to 232' using Cat6 cable to the sold separately Liberty DL-SCU-RX receiver.

Retracting Lid Ensures No Interference Connecting Cables

The box features a retracting lid, lift up and slide it back down into the box so it is out of the way when plugging in your connections. There is an opening in the lid that allows you to keep cables plugged in and the lid closed. An example where this is a perfect scenario, is if you will always have a microphone plugged in that sits on your table next to the box. The top bezel is thin and beveled creating a near flush and sleek appearance in the table.

Automatic Display Power On Capable, Easy Control Options

The table box can automatically to the TV display on via RS-232 commands, whenever a video signal is detected or the DISPLAY button is pressed the TV will turn on. Control the table box with RS-232, or the web interface over Ethernet. This gives you the ability to control the audio/video and USB switching, display control, and EDID management. The box is plug-and-play, no drivers are required for installation.



Specifications:

Color: Black
Power outlets: 1
Video connections: 3 HDMI, 1 USB-C
Data connections: 1
USB connections: 4
Bezel size:  9.0" x 5.57"
Depth:  7.3"
Cutout size:  8.10" x 4.69"
Opening in lid for cable pass through
Retracting lid
Includes power cable
All mounting hardware included
5 year warranty
User Manual (PDF)
Cutout Template (PDF)

Color: Black
Power outlets: 1
Video connections: 3 HDMI, 1 USB-C
Data connections: 1
USB connections: 4
Bezel size:  9.0" x 5.57"
Depth:  7.3"
Cutout size:  8.10" x 4.69"
Opening in lid for cable pass through
Retracting lid
Includes power cable
All mounting hardware included
5 year warranty
User Manual (PDF)
Cutout Template (PDF)
