Liberty AV DL-PLUSB3.1AA-030M USB 3.2 Gen2 Active Optical Cable 10Gbps - 98'

  |   Q&A

$736.42

Free shipping on orders over $99

Part #: DL-PLUSB3.1AA-030M
Vendor: Liberty AV
Ships from manufacturer
You will be notified within 1 business day of the expected ship date
Maximum quantity available reached.

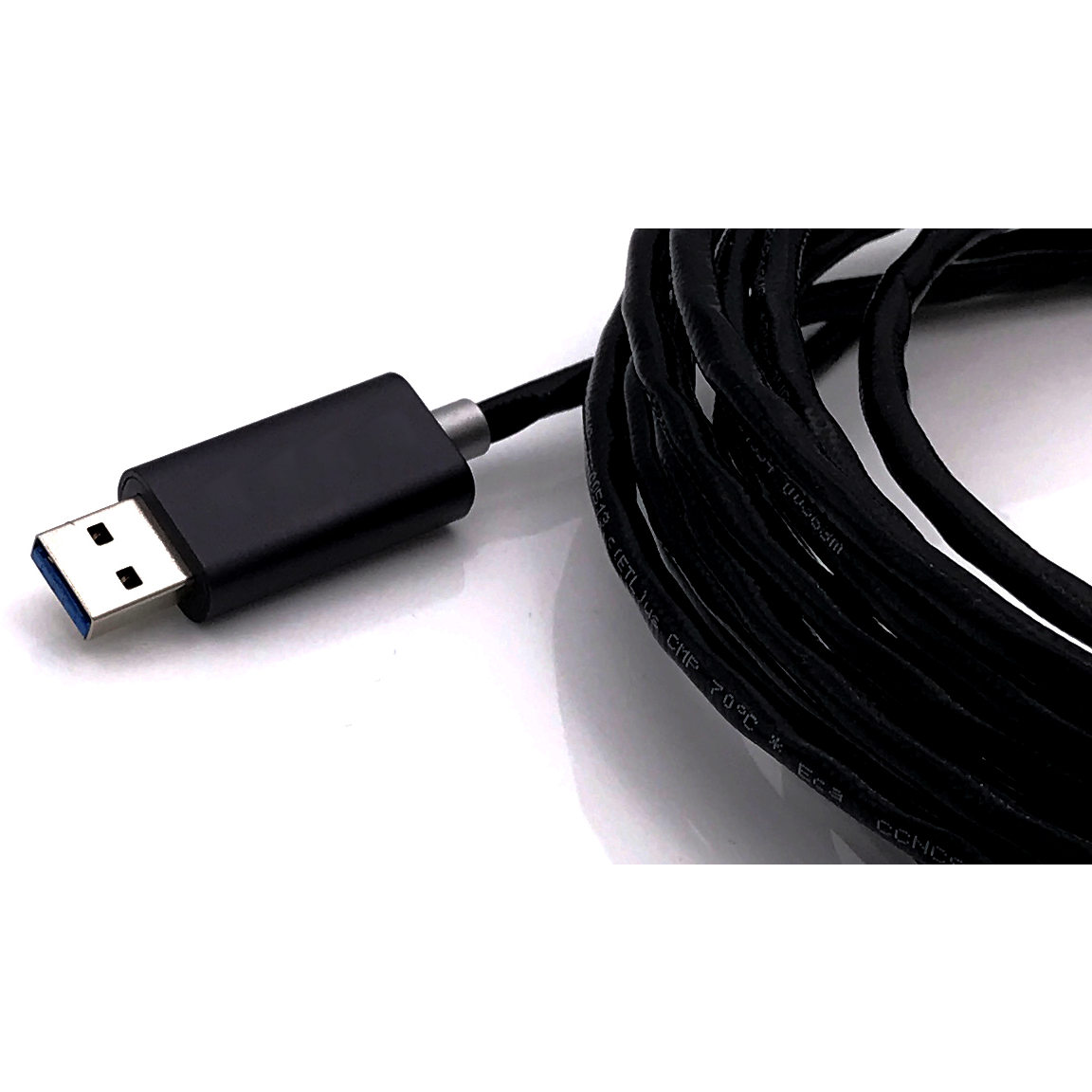

The Liberty DigitaLinx Series DL-PLUSB3.1AA-030M is 98' Active Optical USB 3.2 Gen 2 USB Cable. This cable assembly is considered a USB Data plus limited power support cable, it does not support Alternate Mode Video at this time.

Fast Speeds and Backwards Compatible

The DL-PLUSB3.1AA cable series is backwards compatible with USB 3.0/2.0/1.1 and is rated up to 10Gbps data speeds. Being a hybrid optical cable means this cable is immune to electromagnetic (EM) and radio frequency (RF) interference, which could degrade signal performance. Equally the signals on the cable will not interfere with other sensitive electronic equipment.

Key Applications

Primary applications of use for this type of USB includes: USB Extension and Routing, USB peripheral control, Video over USB, Boardroom Collaboration, and Education.

Specifications
Length: 98'
Connections: Male USB Type A Connectors on both ends, gold plated contacts
USB Signals: USB 3.2 GEN 2, backwards compatible with USB 2.0 at full speed
ARC (Audio Return Channel) Support
Data Rates: 10Gbps
Backwards compatible to USB 3.0/2.0/1.1
Plenum Rated
Powered by the USB BUS of the associated Host
Compatible with all major operating systems
Delivers up to 1.5W continuous Power up to 15M
Bulk Plenum rated cable for all indoor applications
NEC Rated CMP-OF, CEC FT6, RoHS/REACH Compliant
Available in 3, 5, 8, 10, 15, 23, 30, 40 and 50m lengths
Warranty: 3 Years
Specifications

Length: 98'
Connections: Male USB Type A Connectors on both ends, gold plated contacts
USB Signals: USB 3.2 GEN 2, backwards compatible with USB 2.0 at full speed
ARC (Audio Return Channel) Support
Data Rates: 10Gbps
Backwards compatible to USB 3.0/2.0/1.1
Plenum Rated
Powered by the USB BUS of the associated Host
Compatible with all major operating systems
Delivers up to 1.5W continuous Power up to 15M
Bulk Plenum rated cable for all indoor applications
NEC Rated CMP-OF, CEC FT6, RoHS/REACH Compliant
Available in 3, 5, 8, 10, 15, 23, 30, 40 and 50m lengths
Warranty: 3 Years
