Pop Up Dual Sided AV Box, 2 Power, 2 RJ45, 2 HDMI, 2 VGA - Black
1 | Q&A$363.20
Free shipping on orders over $99
Dual Sided Pop Up Connections for Each Side of the Table

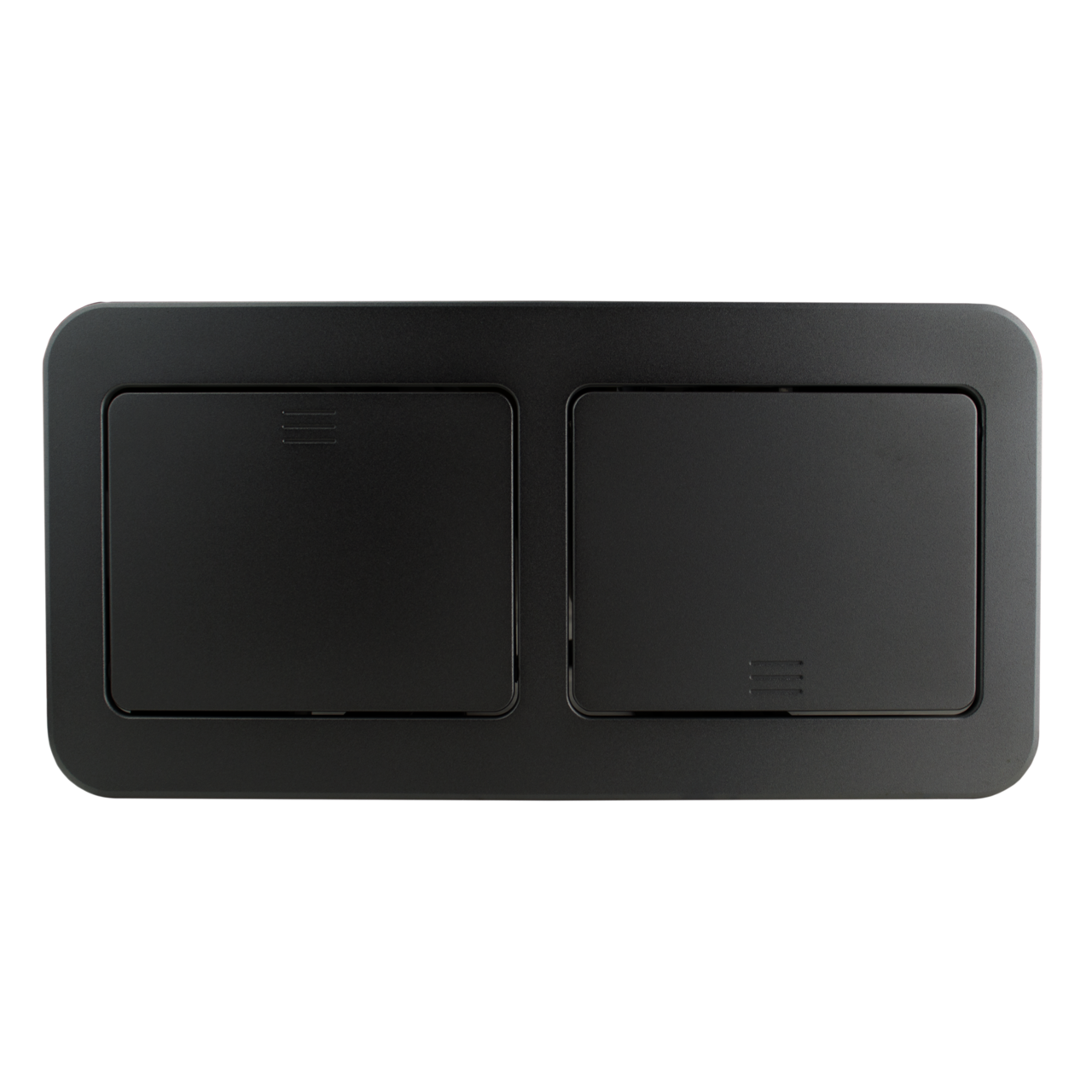

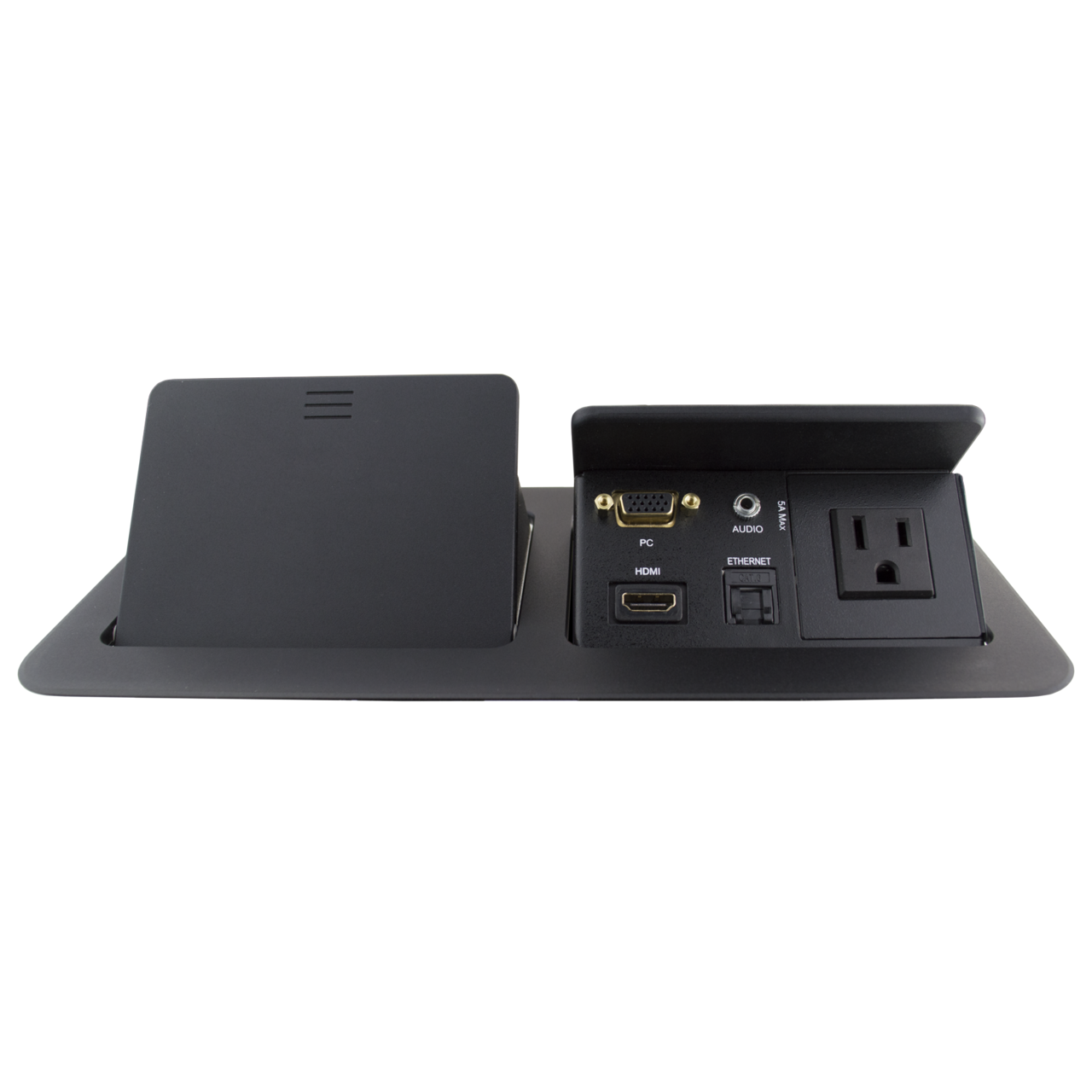

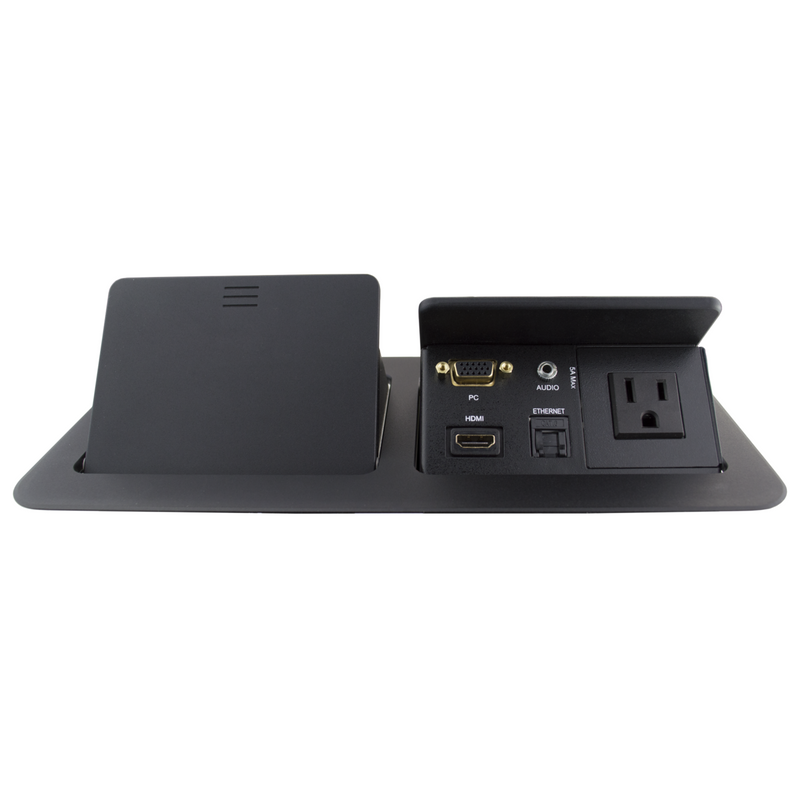

The TBUS-202B from Kramer Electronics is a pop up style box designed to be installed in a conference room table to hide your audio, video, data, and power connections. Once installed the durable black anodized aluminum top is almost flush with your table at only .06" thick. Each top can be pressed independently of each other, when you press one of the tops, a gas spring flips the cover up to a 45 degree angle allowing you to plug in your connections. Each flip up box hides 1 USA power, 1 HDMI, 1 VGA, 1 audio, and 1 Cat6 connection.
Each pop up box faces opposite of each other, this is perfect so users from each side of the table can access the connections easily.
Easy Installation
The box is easy to install, cut your hole with the included template, place the box in the hole, and secure to the underside of the table by simply twisting with your hand, the included screw clamps. After that, the only task left is to plug in your connections, this is where the TBUS-202B really shines. The connections coming out of the bottom of the box are all short female connections, just plug in your male ended cables. For power there is a single 6' cable that will need to be plugged into any USA outlet. The pop up can be installed in any table thickness up to 3". All mounting hardware, and even the cutout template, are included.
Perfect for Conference Rooms
Finally an affordable dual sided pop up for your conference room, meeting room, boardroom, or any table or desk surface that you need audio, video, data, and power connections. Enjoy the ultimate peace of mind with Kramer's 7 year warranty.
Specifications
Color: Black anodized aluminum
Each side: 1 power, 1 VGA, 1 RJ45, 1 audio, 1 HDMI
Cables on bottom are female ended
Single 6' power cable, 3 prong ended
UL listed for USA
Bezel size: 11.22" x 5.51"
Cutout size: 10.51" x 4.8"
Depth: 6.81"
Works in table thickness up to 3"
Weight: 3.9lbs
cUL listed, #E226674
Includes all mounting hardware and template
7 year warranty
Kramer TBUS-202B Specifications (PDF)
Kramer TBUS-202B User Manual (PDF)
Kramer TBUS-202B Cutout Template (PDF)
Color: Black anodized aluminum
Each side: 1 power, 1 VGA, 1 RJ45, 1 audio, 1 HDMI
Cables on bottom are female ended
Single 6' power cable, 3 prong ended
UL listed for USA
Bezel size: 11.22" x 5.51"
Cutout size: 10.51" x 4.8"
Depth: 6.81"
Works in table thickness up to 3"
Weight: 3.9lbs
cUL listed, #E226674
Includes all mounting hardware and template
7 year warranty
Specifications (PDF)
User Manual (PDF)
Cutout Template (PDF)
Kramer TBUS-202B Specifications (PDF)
Kramer TBUS-202B User Manual (PDF)
Kramer TBUS-202B Cutout Template (PDF)
