Cable Nook w/ Sliding Lid, 4 AC & 6 Charging USB, 2 HDMI, 2 Cat6, Black

5 reviews   |   Q&A

$613.94

Free shipping on orders over $99

Part #: CNK222-B1
Vendor: Altinex
Maximum quantity available reached.

The Altinex CNK222-B1 is a cable well style box that houses your power and connections, all in a compact and stylish box. Inside the box you will find 4 power, 4 charging USB-A ports, 2 charging USB-C ports, 2 HDMI, and 2 RJ45 data connections. All the connections on the back side are all female so you can easily run your cable into the back of the box and plug in, two 9' power cables come out of the box. There is still one extra empty keystone port to add in an additional connection if needed. The 4 USB-A ports supply up to 2.7 amps, the USB-C charging ports supply up to 3.3 amps of power per port to your mobile devices.  They are smart charging ports so they will intelligently adjust the power to the device being plugged in, keeping your device safe and charged correctly

When not in use all you see in your table is the attractive black anodized aluminum top, when you lift the lid you can gain access to your connections. The lid when opened, slides back down and out of the way in the box. A retracting lid creates a sleeker look in your table, and allows users to more easily gain access to the connections from any seating position. There is an opening in the lid that allows you to close the lid with the cables still plugged in. The connections in the box can be set to your desired level. You can keep them high in the box to plug in fast and easy, or low in the box for cable storage.  If desired you can keep the connections low and keep your cables plugged in so they never get lost.

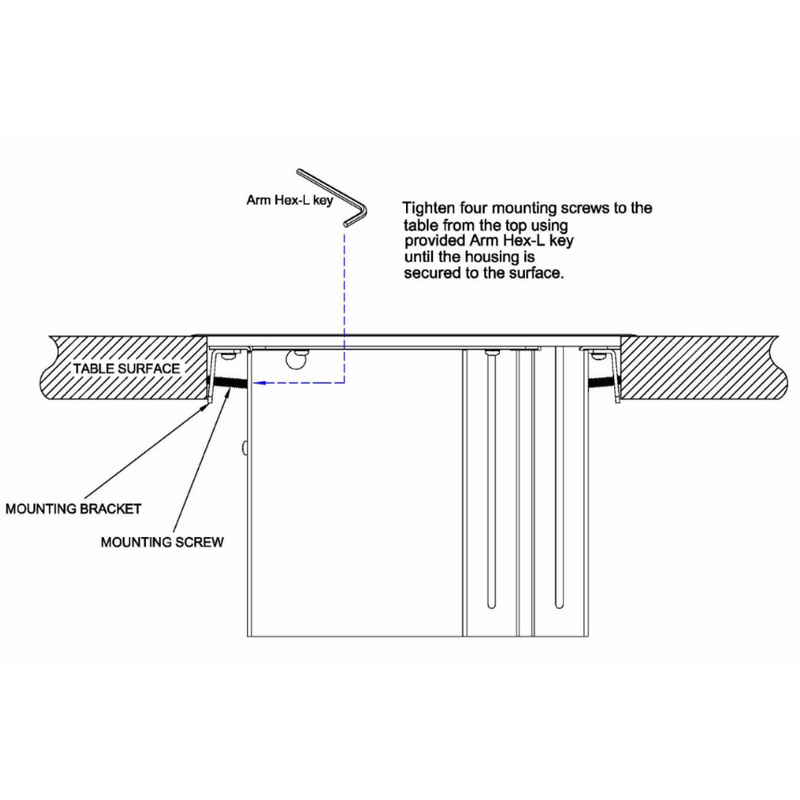

An exclusive feature of this cable well is the ability to install from the top of the unit, you are not required to have to install from under the table.  Simply use the supplied mounting hardware and installation tool to install after the unit is installed. The components in the cable well are already pre-installed saving valuable installation time.

The box is UL approved for the USA, and cUL approved for Canada installations. This cable well is an affordable solution for your cable management needs in a gorgeous and functional box for your conference room or meeting room table.


Color:  Black anodized aluminum
Outlets:  4 power, 6 charging USB
Connections: 2 RJ45, 2 HDMI
All connections are female to female
USB: 4 USB-A (2.7A), 2 USB-C (3.3A)
1 empty keystone port
Retracting lid
UL listed for USA, cUL listed for Canada
Bezel size:  7.9" x 7.1"
Depth:  4.7"
Cutout size:  7.46" x 6.66"
Max table thickness:  3.5"
Opening in lid for cable pass through
Two 9’ corded 3 prong plugs
All mounting hardware included
10 year warranty



Color:  Black anodized aluminum
Outlets:  4 power, 6 charging USB
Connections: 2 RJ45, 2 HDMI
All connections are female to female
USB: 4 USB-A (2.7A), 2 USB-C (3.3A)
1 empty keystone port
Retracting lid
UL listed for USA, cUL listed for Canada
Bezel size:  7.9" x 7.1"
Depth:  4.7"
Cutout size:  7.46" x 6.66"
Max table thickness:  3.5"
Opening in lid for cable pass through
Two 9’ corded 3 prong plugs
All mounting hardware included
10 year warranty
