Table Audio Video Box, 1 Universal Power, 1 RJ45, 1 HDMI, 1 VGA - Black
1 | Q&A$261.60
Free shipping on orders over $99

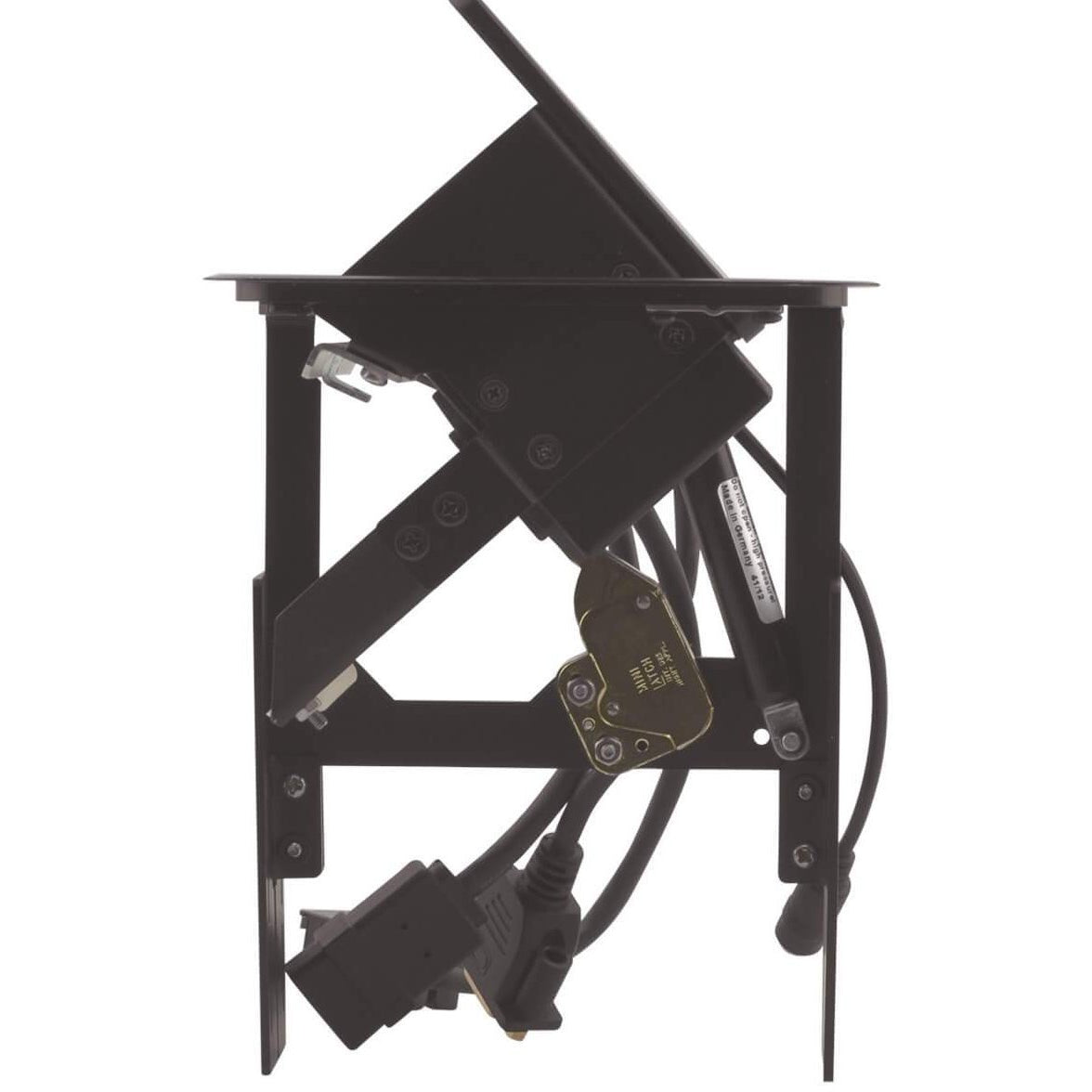

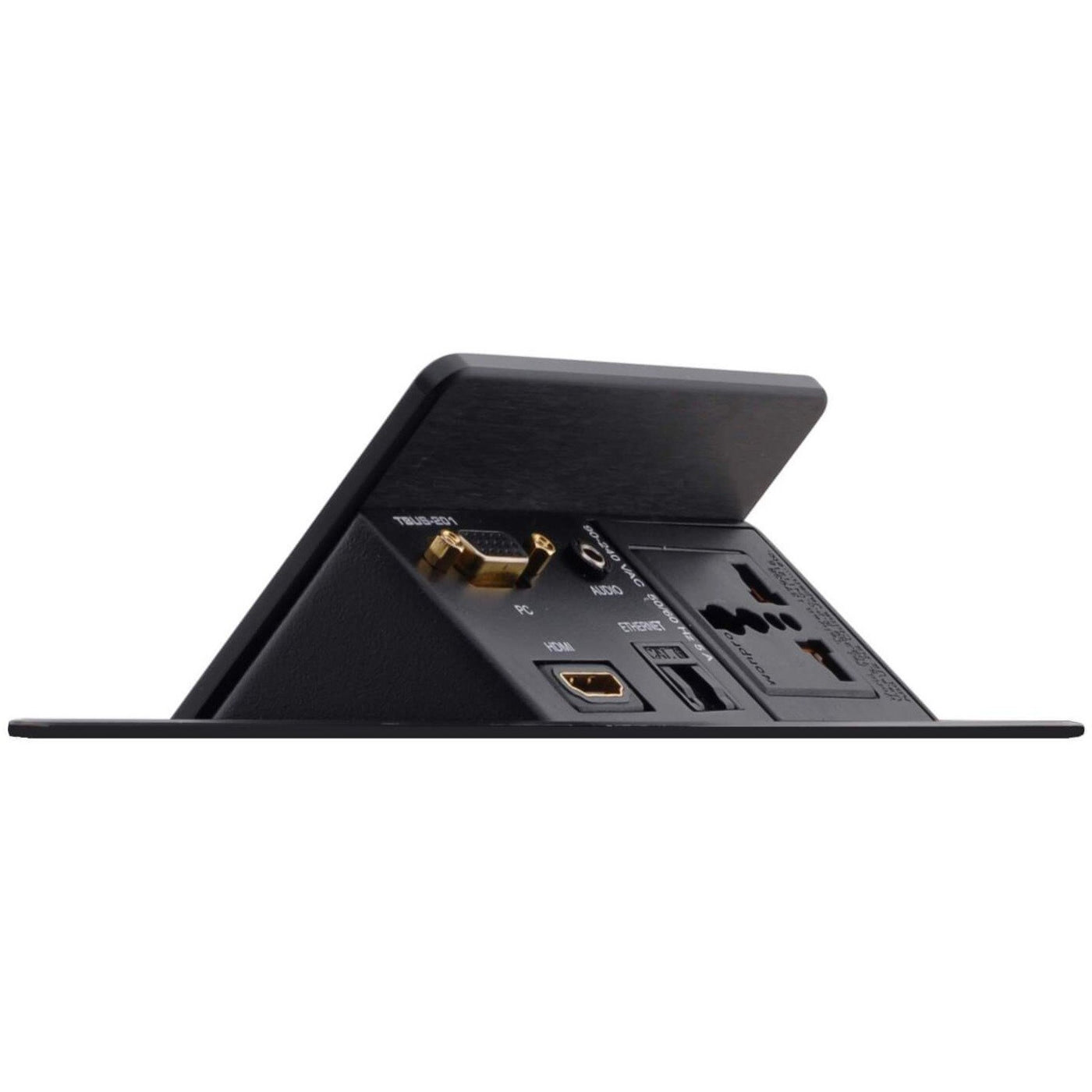

The TBUS-201UB from Kramer Electronics is a pop up style box designed to be installed in a conference room table to hide your audio, video, data, and power connections. Once installed the durable black anodized aluminum top is almost flush with your table. When you press the top, a gas spring flips the cover up to a 45 degree angle allowing you to plug in your connections. The box hides 1 Universal power, 1 HDMI, 1 VGA, 1 audio, and 1 Cat6 connection. All these connections are concealed in a small and compact box, the top is only 5.71" x 5.2".
Note: The Universal power socket is fully compatible with power plugs in the UK, India, Italy and Denmark, as well as with the 2–prong Europlug. It is partially compatible (if the polarity is reversed) with plugs in China, Switzerland, Israel and the USA. The universal power socket does not supply grounding to plugs in Central Europe and France (you should order country specific sockets instead). It is not compatible with South African plugs.
The box is easy to install, cut your hole with the included template, place the box in the hole, and secure to the underside of the table by simply twisting with your hand, the included screw clamps. After that, the only task left is to plug in your connections, this is where the TBUS-201UB really shines. The connections coming out of the bottom of the box are all short female connections, just plug in your male ended cables. For power there is a single 6' cable that will need to be plugged into any USA outlet. The pop up can be installed in any table thickness up to 3". All mounting hardware, and even the cutout template, are included.
Finally an affordable pop up for your conference room, meeting room, boardroom, or any table or desk surface that you need audio, video, data, and power connections. Enjoy the ultimate peace of mind with Kramer's 7 year warranty.
Color: Black anodized aluminum
Ports: Universal power, VGA, RJ45, audio, HDMI
Cables on bottom are female ended
6' power cable, 3 prong ended
UL listed for USA
Bezel size: 5.71" x 5.2"
Cutout size: 5.2" x 4.7"
Depth: 6.81"
Works in table thickness up to 3"
Weight: 2.65lbs
Includes all mounting hardware and template
cUL listed, #E226674
7 year warranty
Specifications (PDF)
User Manual (PDF)
Cutout Template (PDF)
Color: Black anodized aluminum
1 each power, VGA, RJ45, audio, HDMI
Cables on bottom are female ended
6' power cable, 3 prong ended
UL listed for USA
Bezel size: 5.71" x 5.2"
Cutout size: 5.2" x 4.7"
Depth: 6.81"
Works in table thickness up to 3"
Weight: 2.65lbs
Includes all mounting hardware and template
cUL listed, #E226674
7 year warranty
Specifications (PDF)
User Manual (PDF)
Cutout Template (PDF)
Kramer TBUS-201UB Specifications (PDF)
Kramer TBUS-201UB User Manual (PDF)
Kramer TBUS-201UB Cutout Template (PDF)
