Cable Well Table Box 1 Power, 1 HDMI, 1 Cat6, 1 VGA, 1 Audio - Silver
| Q&A$339.00 $357.68
Free shipping on orders over $99
The Kramer TBUS-5-S4 holds your connections in a stylish and compact box for your conference room or meeting room table. The multimedia box organizes all your connections in one location with easy access to plug-in.
Connections

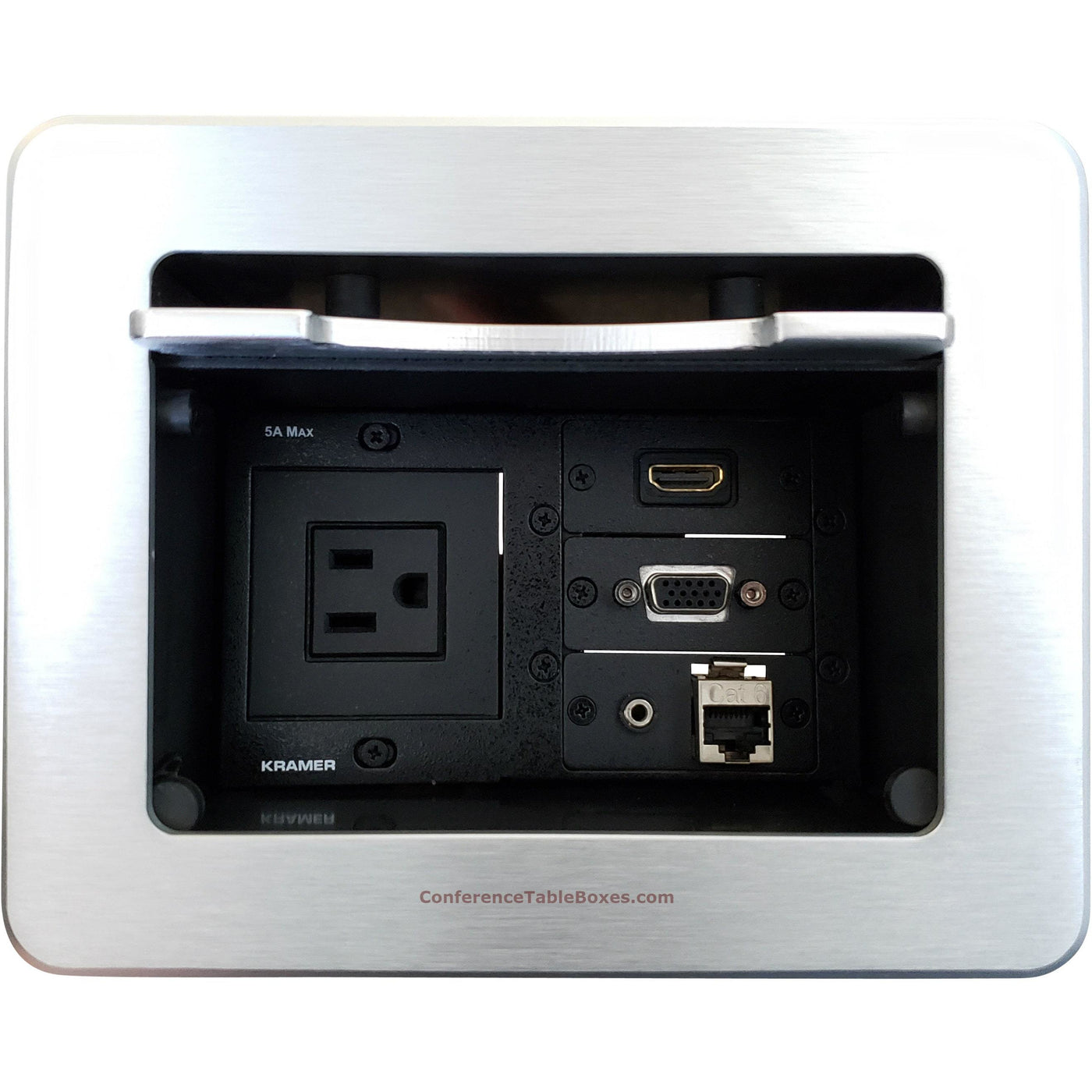

Inside the cable well you will find 1 power outlet, 1 Cat6, 1 VGA, 1 audio, and 1 HDMI connection. The connections are all female on the back side so you can easily plug in your cables. The power cable is a 6' long three prong plug.
Retracting Slide-Away Lid
The box features a retracting lid, lift up and slide it back down into the box so it is out of the way when plugging in your connections. The top is made out of an extremely durable sand blasted silver anodized aluminum finish that is scratch resistant. There is an opening in the lid that allows you to keep cables plugged in and the lid closed. The top bezel is only .06" thick creating a near flush and sleek appearance in the table.
Easy Installation
Installing the box is very easy, cut your hole with the included metal template and place the box in the cutout. Use the supplied bracket to attach to the side of the box, you then can tighten the brackets to the bottom of your table to make the box secure so it won't move. The box can be installed in tables with a thickness of up to 3". You can then insert the connections in the box in your desired locations, as well as the height that you want you connections in the box. The connections can be moved lower in the box to accommodate larger plugs, or if you just want to keep your cables plugged in and close the lid. The power cable is a single 6' long cord, the HDMI connection is female on the backside making it a snap to just plug in your own cables to complete installation.
The box is modular so you can change the connections in the box down the road if your requirements change, or new technologies become available. The box and the connections inside have a long 7 year warranty.
Customizable
Like the box but need different connections? Just not finding exactly what you want? If you need help finding the perfect table box with your exact connections, we would love to help. Please contact us via live chat, or call 888-507-5957.
Specifications:
Color: Sand blasted silver anodized aluminum
Power outlets: 1
Connections: 1 HDMI, 1 Cat6, 1 VGA, 1 audio
Bezel size: 6.9" x 5.5"
Depth: 4"
Cutout size: 6.23" x 4.85"
Works in tables up to 3" thick
Opening in lid for cable pass through
Fully retracting lid
Connections inside are height adjustable
One 6' power cord with 3 prong plug
All mounting hardware included
cUL listed, #E226674
Configurable for future changes
Minor installation required
7 year warranty
Specifications (PDF)
User Manual (PDF)
Cutout Template (PDF)
Color: Sand blasted silver anodized aluminum
Power outlets: 1
Connections: 1 HDMI, 1 Cat6, 1 VGA, 1 Audio
Bezel size: 6.9" x 5.5"
Depth: 4"
Cutout size: 6.23" x 4.85"
Works in tables up to 3" thick
Opening in lid for cable pass through
Fully retracting lid
Connections inside are height adjustable
One 6' power cord with 3 prong plug
All mounting hardware included
cUL listed, #E226674
Configurable for future changes
Minor installation required
7 year warranty
Specifications (PDF)
User Manual (PDF)
Cutout Template (PDF)
Kramer TBUS-5-S4 Specifications (PDF)
Kramer TBUS-5-S4 User Manual (PDF)
Kramer TBUS-5-S4 Cutout Template (PDF)
