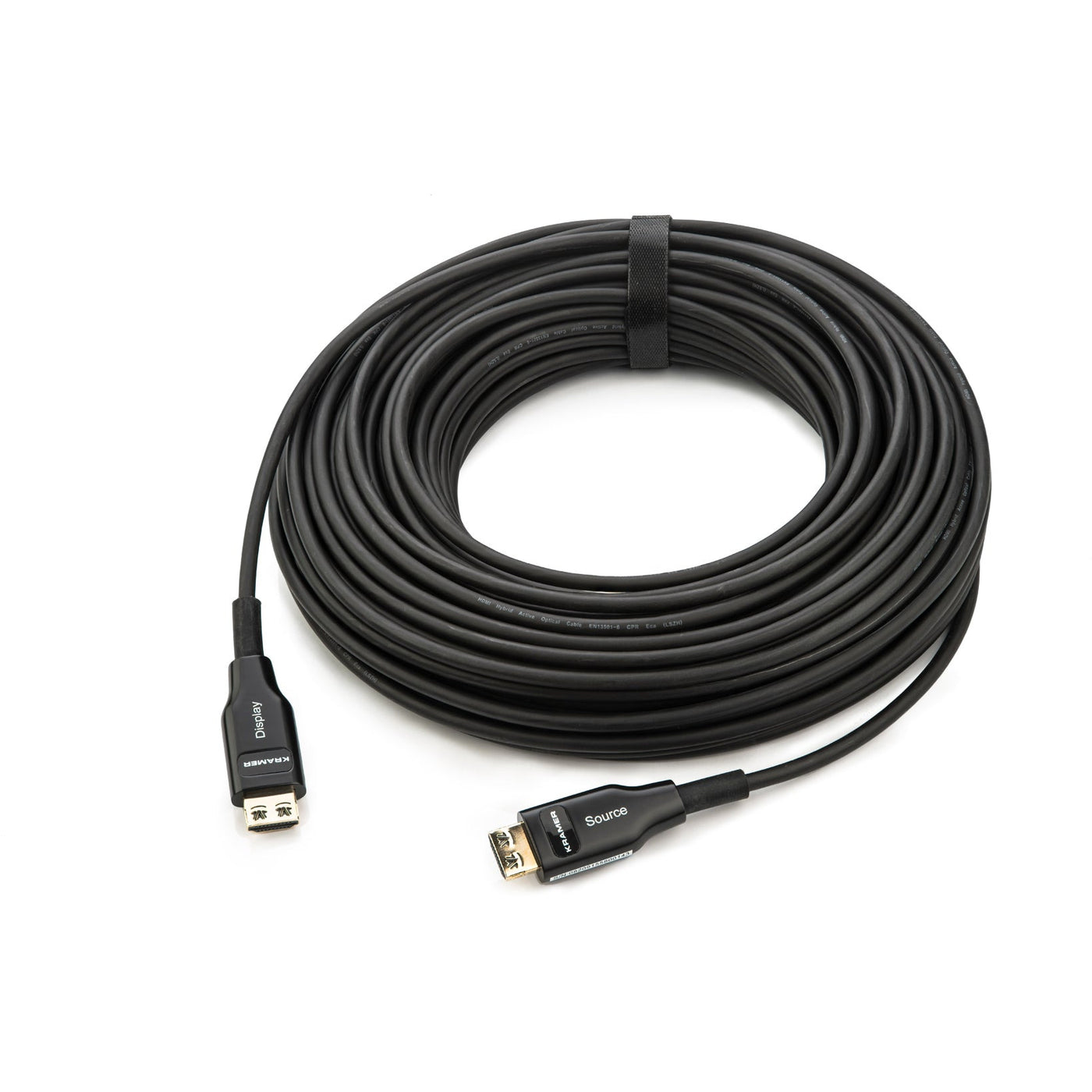

Kramer AV CP-AOCH/60F-66 High Speed Active Optical 4K HDMI Cable - 66'

  |   Q&A

$248.00

Free shipping on orders over $99

Part #: CP-AOCH/60F-66
Vendor: Kramer
Ships from manufacturer
You will be notified within 1 business day of the expected ship date
Maximum quantity available reached.

The Kramer CP-AOCH/60F-66 is a 66' High-Speed Active Optical HDMI Cable that features 4K resolutions, 18Gpbs data rates and no external power required.

Built for Installers and High End Systems

The CP-AOCH/60F series of cables continues to push the boundaries of innovation, Kramer has designed these cables with the installer in mind. To achieve this Kramer has made these cables with a thinner diameter, lighter weight as to not cause cable strain on the connection heads and with a higher more flexible bend rate than that of copper or standard optical cables.

Fast Speeds, High Resolution, and Quality Connector Heads

This lightning fast cable can reach data rates up to 18Gbps while maintaining a video resolution up to True 4K (4K@60/Hz 4:4:4). HDMI Support includes: HDCP 2.2/1.4, HDR, EDID, ARC (Audio Return Channel) and CEC (Consumer Electronics Control). Embedded audio will support PCM 8 channel, Dolby Digital True HD and DTS-HD Master Audio.

This is a directional cable and will need to plugged in correctly. Each head is labeled with "source" or "display". Power will be provided from the source device.

Specifications

Length: 66'
Max Resolution: 4K/60
HDMI Support: HDR, HDCP 2.2/1.4, EDID and CEC, ARC
Cable Type: Hybrid with OM3 fiber and copper wire
Connector Head 1: 24K Plated HDMI Male
Connector Head 2: 24K Plated HDMI Male
Cable Bending Radius: 20mm
Jacket Color: Black
Jacket Diameter: 4.5mm
No external power required
Plenum Rated
Kramer SKU: 97-04161066
Warranty: 7 Years
Specifications Sheet

Length: 66'
Max Resolution: 4K/60
HDMI Support: HDR, HDCP 2.2/1.4, EDID and CEC, ARC
Cable Type: Hybrid with OM3 fiber and copper wire
Connector Head 1: 24K Plated HDMI Male
Connector Head 2: 24K Plated HDMI Male
Cable Bending Radius: 20mm
Jacket Color: Black
Jacket Diameter: 4.5mm
No external power required
Plenum Rated
Kramer SKU: 97-04161066
Warranty: 7 Years
Specifications Sheet
