Kramer PT-101H2 4K HDR HDMI Repeater with HDCP 2.2 Complaint - 33'

  |   Q&A

$308.00

Free shipping on orders over $99

Part #: PT-101H2
Vendor: Kramer
Ships from manufacturer
You will be notified within 1 business day of the expected ship date
Ship To:
Check Arrival Date and Cost
Estimated Arrival
Estimated Cost
Maximum quantity available reached.

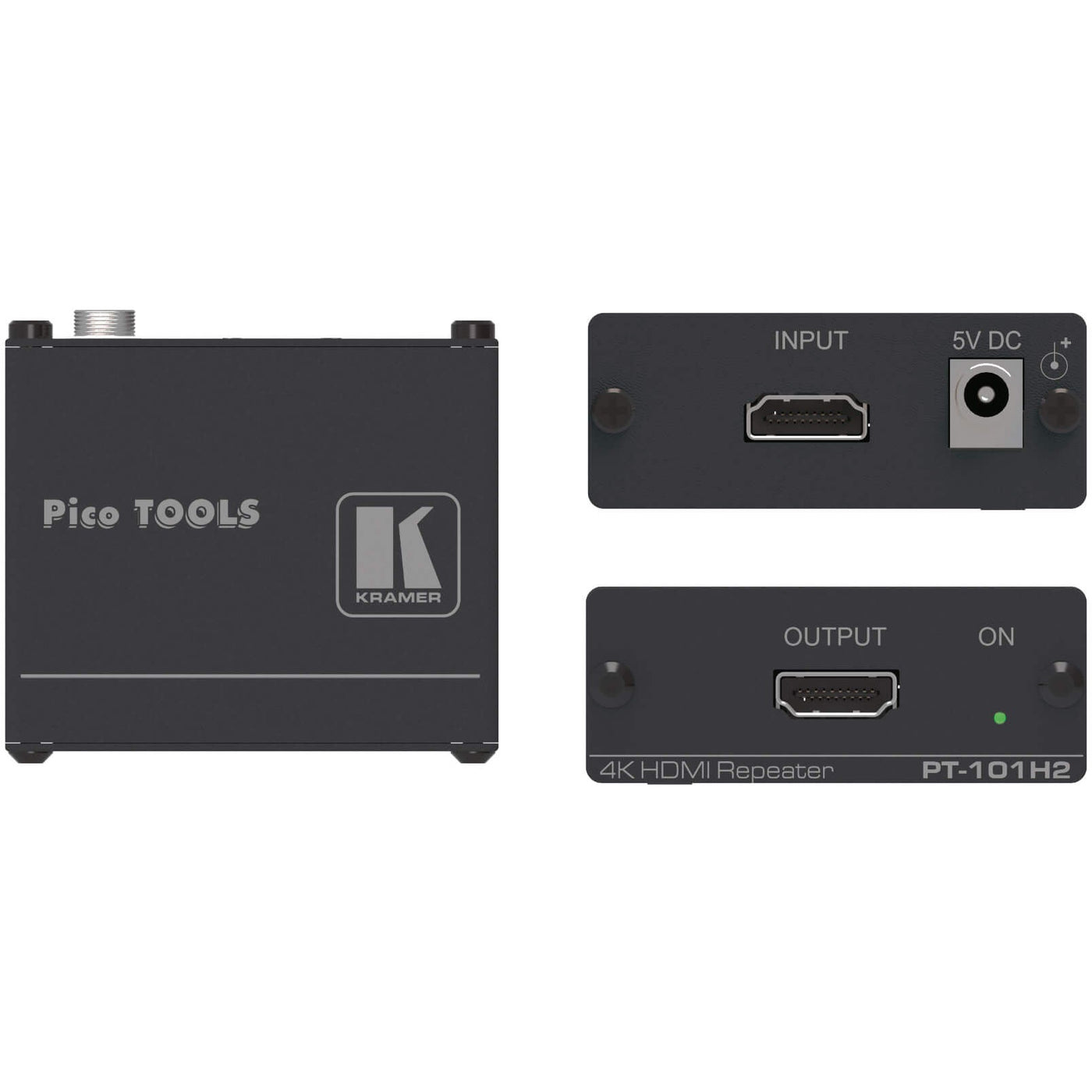

Boost your HDMI signals with the Kramer AV PT-101H2 4K60 HDR HDMI Repeater. This high-powered, yet compact device, allows for users to extend their 4K HDMI signals further than the limitations of standard HDMI cables. This device acts as a signal booster (Repeater) and by using Kramer's Re-clocking and Equalization technology you can place this device in-line between a source and display when longer range applications are required.

Signal Extension Abilities

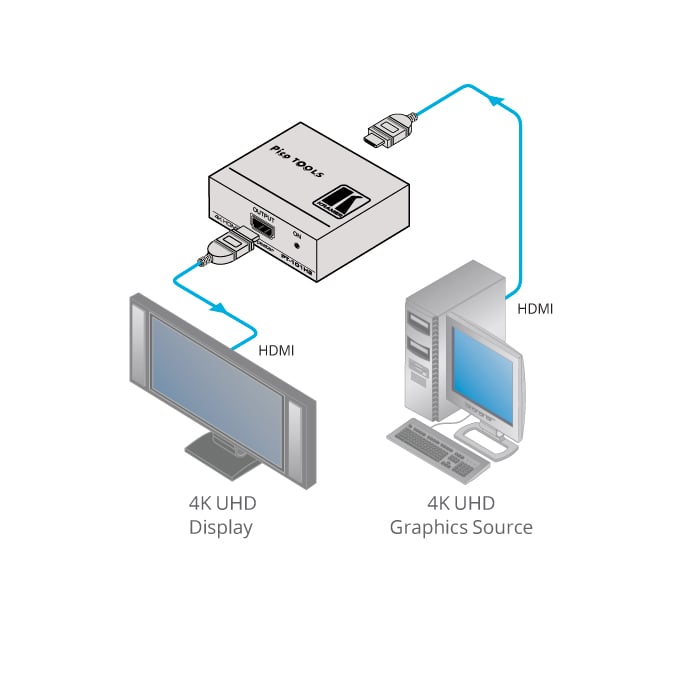

The PT-101H2 can boost your signal to a max of 66' for 4K30 resolutions and 33' for 4K60 resolutions. Range Extension breaks down as follows - 4K@60Hz (4:4:4) up to 10m (33ft), (16.5' on the input to the PT-101H2 and 16.5' on the output); 4K@30Hz (4:4:4) up to 20m (66ft) (50' on the input to the PT-101H2 and 16' on the output). The unit supports HDCP 2.2 and offers 17.82Gbps of Data Rate. An ideal use for this device would be mounted under a conference room table, near a conference room table box, to route the HDMI signal from the table box to a display on the far side of the room.

Specifications
Input: HDMI
Output: HDMI
Bandwidth: 17.82Gbps (5.94Gbps per graphic channel)
Resolutions: Up to 4K @60Hz 4:4:4
Compliance with HDMI Standard: HDR10 as specificed in HDMI 2.0, HDCP 1.4, HDCP 2.2
HDCP 2.2 Compatible
Range 4K@60Hz (4:4:4) - 33'
Range 4K@30Hz (4:4:4) - 66'
Kramer re-Clocking and Equalization
Included Accessories: Power Supply 5.2V DC 2A
Warranty: 7 Years
Kramer SKU: 50-80409090
Specifications

Input: HDMI
Output: HDMI
Bandwidth: 17.82Gbps (5.94Gbps per graphic channel)
Resolutions: Up to 4K @60Hz 4:4:4
Compliance with HDMI Standard: HDR10 as specificed in HDMI 2.0, HDCP 1.4, HDCP 2.2
HDCP 2.2 Compatible
Range 4K@60Hz (4:4:4) - 33'
Range 4K@30Hz (4:4:4) - 66'
Kramer re-Clocking and Equalization
Included Accessories: Power Supply 5.2V DC 2A
Warranty: 7 Years
Kramer SKU: 50-80409090
