The Hubbell RCT620ALU 20A Pop Up Outlet in Aluminum Color

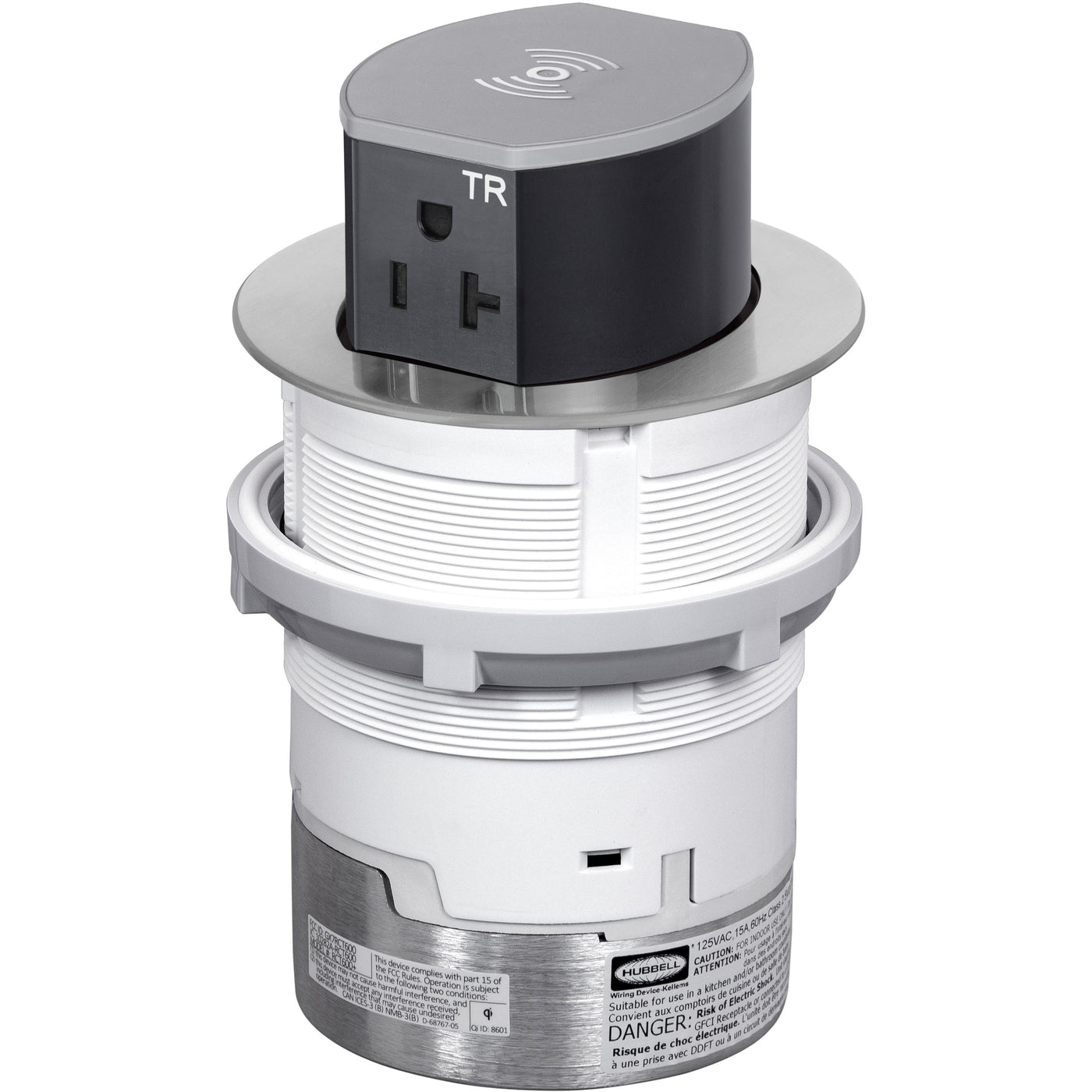

The RCT620ALU is a pop-up outlet that can be installed on a conference room table, or even a kitchen countertop. It has a waterproof spill rating that meets the year 2020 NEC code 406.5E for wet location installations. The top outer ring is aluminum metal, and the middle insert comes with your choice of black, gray, or white plastic.
One 20 Amp Power Outlet Plug, USB A and C Charging Ports, Wireless Charging

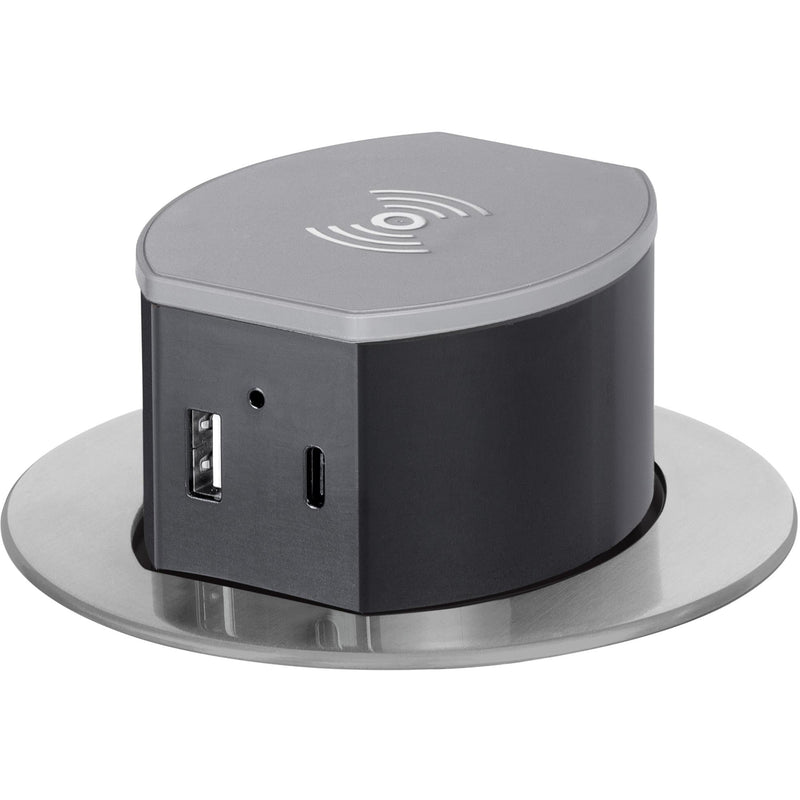

The pop-up outlet is dual-sided and features a 20 Amp power plug on one side, and a USB A and C charging port on the other side. On the top is wireless charging, simply rest any Qi enabled phone and it will automatically start charging. This can be used in the open or closed positions.
The USB-A port is rated for 2.4 Amps and 12 watts of fast charging, the USB-C port is a PD 2.0 port rated for 18 watts. The wireless charging top is rated for 7.5 watts, it will work with any non-metal phone case up to 4.5mm in thickness.
Small Beautiful Appearance

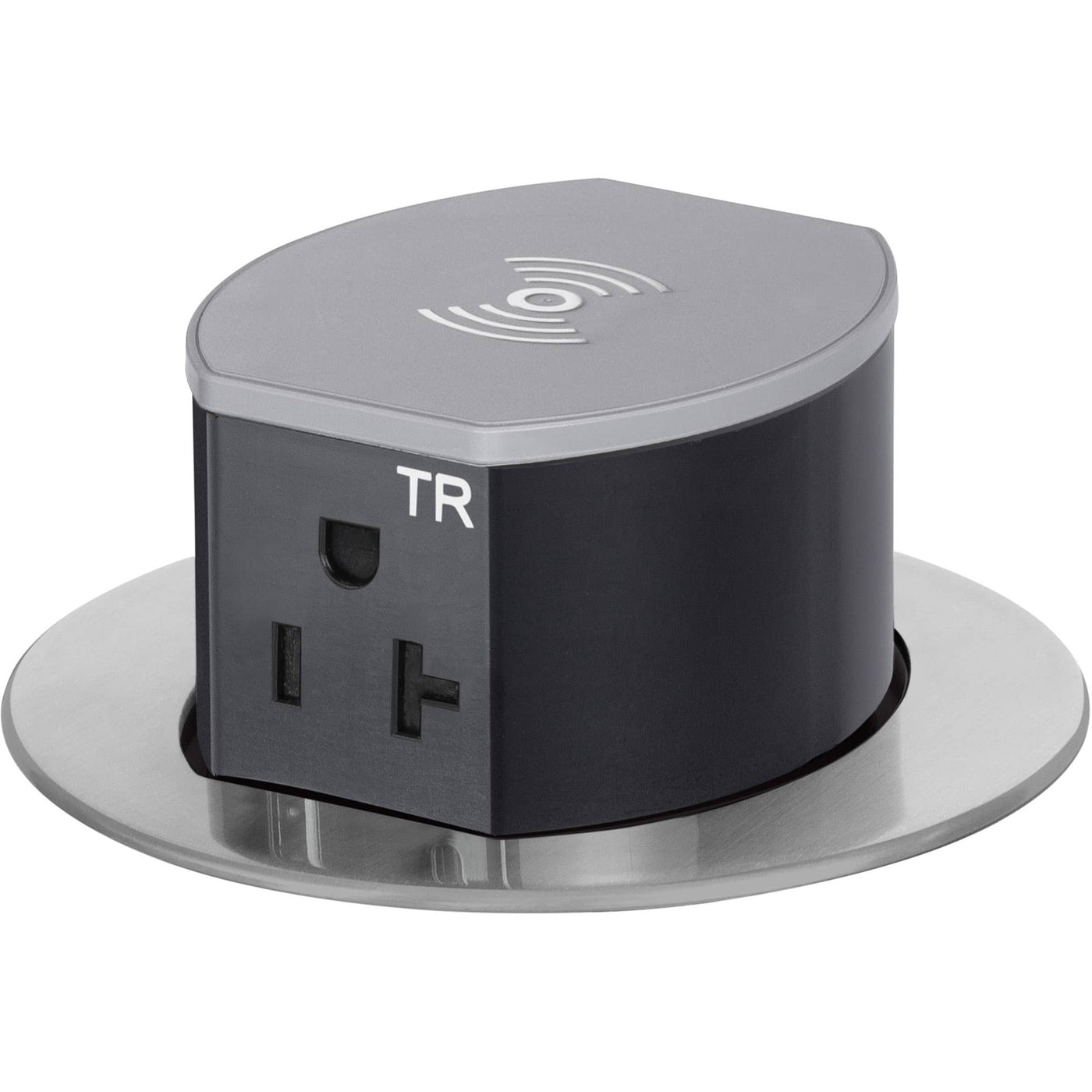

When in the closed position the top is an attractive aluminum color. The top is 4.55 inches in diameter and only .09" thick, making it look almost flush on the surface it is installed in. When pressed, the top middle section fully opens 1.70" exposing the power and USB charging ports.

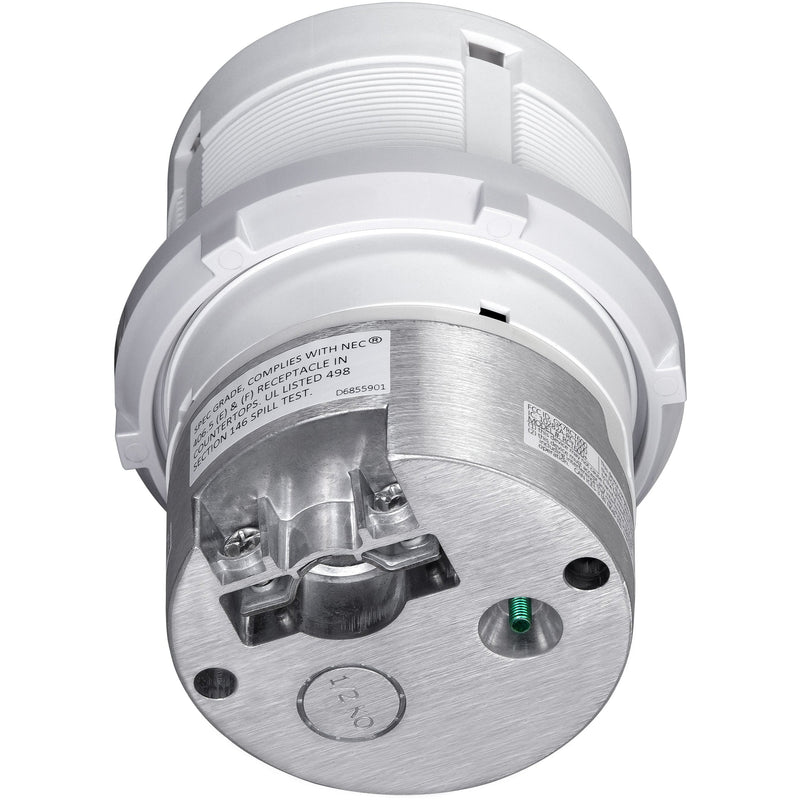

To install, cut a 4" round hole, drop in the hole, and secure it with the included nut. The pop-up does not come with a power cord, it is hardwired via MC cable or non-metallic sheath cable. It is UL listed for USA installations.
- Color (outer metal): Aluminum

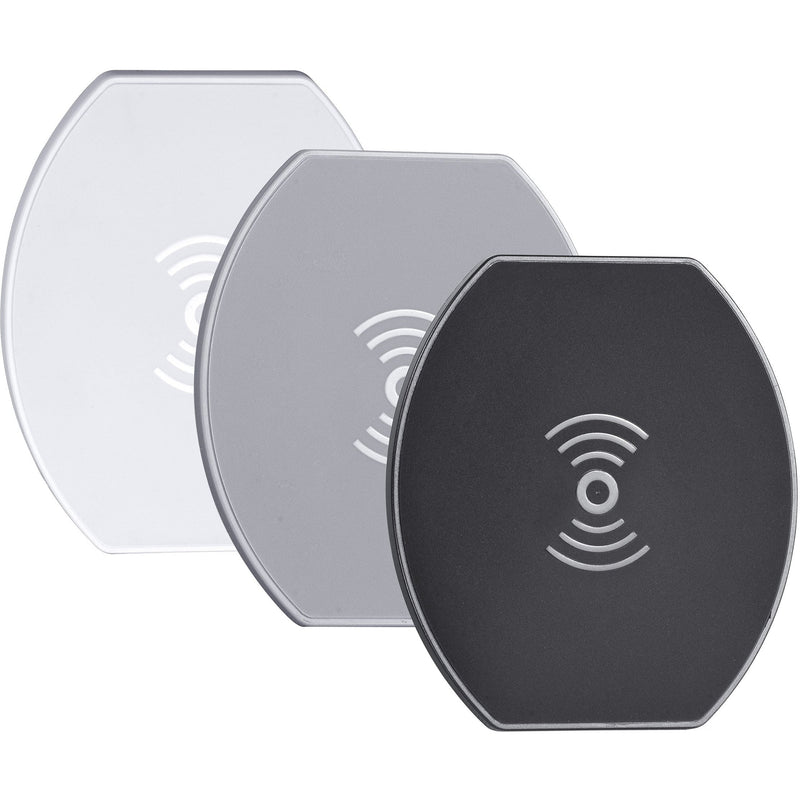

- Color (middle plastic): White, gray, or black
- 1 power, 20A, TR
- 1 USB-A charging port
- 1 USB-C charging port
- Top size: 4.55"
- Cutout size: 4"
- Pop-up height: 1.7"
- Depth: 5.59"
- Works in table thickness: .56" to 2.13"
- Hardwired installation
- UL listed for USA
- Includes locking nut
- 1-year warranty
- Brochure (PDF)
- Installation Instructions (PDF)
Color (outer metal): Aluminum
Color (middle plastic): White, black, or gray
1 power, 20A, TR
1 USB-A charging port
1 USB-C charging port
Top size: 4.55"
Cutout size: 4"
Pop-up height: 1.7"
Works in table thickness: .56" to 2.13"
UL listed for USA
Includes locking nut
Installation Instructions (PDF)
