1080p HDMI over Power Extension Cable, Anywire Transmitter, 100'

  |   Q&A

$446.25

Free shipping on orders over $99

Part #: TP315-103
Vendor: Altinex
Ships from manufacturer
You will be notified within 1 business day of the expected ship date
Ship To:
Check Arrival Date and Cost
Estimated Arrival
Estimated Cost
Maximum quantity available reached.

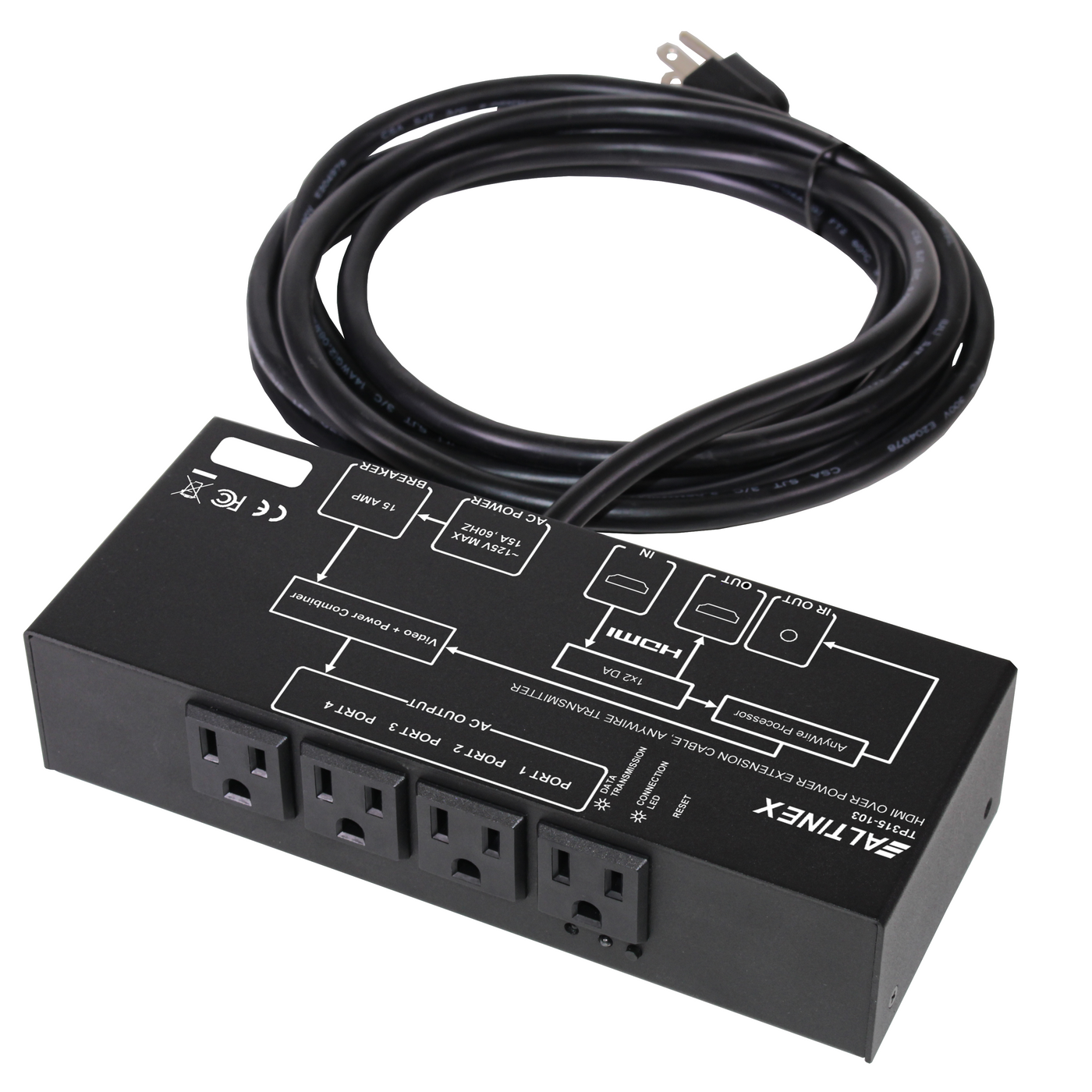

The Altinex TP315-103 is an HDMI over Power Extension Cable transmitter. It provides transmission of 1080p HDMI signals up to 100 ft. using a standard AC extension cord. The transmitter can send power and HDMI feed to four separately purchased receivers using either 4 individual extension cords, or by daisy chaining the receivers. Note: Extension cords from the transmitter to each receiver should not be bundled together to avoid crosstalk. The TP315-103 is an easy to install and simple to use solution for many AV installations requiring extended length signal delivery.

High Performance Extender

The TP315-103 transmitter provides stable video transmission up to 1080p over greater distances than straight HDMI cable systems. It features four 15A AC outlets with embedded HDMI signal capacity to transmit both power and HDMI feed to four receivers. The transmitter includes a video output for a local monitor allowing the user to preview displayed content. For added convenience, the TP315-103 provides IR (Infrared) support for remote control of cable TV and related output boxes without corrupting the HDMI signal.

Easy Installation and operation

Using conventional AC power extension cords; which can readily be purchased at any hardware store, the TP315-103 is a simple and economical solution. It eliminates the need to cut and splice wires, install expensive connectors, or purchase costly cables. For installation, simply route the extension cords, connect the receiver (purchased separately) to the extension cord, and plug the display into the receiver. Operation of the TP315-103 does not require any user control or interaction. Connect the HDMI input and the transmitter scans for the receiver and; when detected, automatically pairs to the receiver then begins video transmission for effortless use.

Specifications:

Inputs: Female HDMI, Digital Video + Audio, AC power, NEMA 5-15P (1)
Outputs: Female HDMI, Digital Video + Audio, AnyWire Video + VAC
IR (from receiver side), female 3.5mm Audio, NEMA 5-15R (4)
Included: Transmitter, AC power cord, HDMI cable, IR emitter
Resolutions: 720p, 1080i, 1080p
9 ft AC Power cord attached
Dimensions: 8.44" x 3.55" x 1.96"
Weight:  1.0 lbs
3 year warranty
User Manual (PDF)

Inputs: Female HDMI, Digital Video + Audio, AC power, NEMA 5-15P (1)
Outputs: Female HDMI, Digital Video + Audio, AnyWire Video + VAC
IR (from receiver side), female 3.5mm Audio, NEMA 5-15R (4)
Included: Transmitter, AC power cord, HDMI cable, IR emitter
Resolutions: 720p, 1080i, 1080p
9 ft AC Power cord attached
Dimensions: 8.44" x 3.55" x 1.96"
Weight:  1.0 lbs
3 year warranty
User Manual (PDF)
