Dual Sided Pop Up Table AV Box, 8 Power, 4 USB, 2 Cat6, 2 HDMI - Black

  |   Q&A

$1,400.37

Free shipping on orders over $99

Part #: PNP400C-B2
Vendor: Altinex
5 business day lead time to build before shipping. This is a special order item, there would be a 15% restocking fee to return
Ship To:
Check Arrival Date and Cost
Estimated Arrival
Estimated Cost
Maximum quantity available reached.

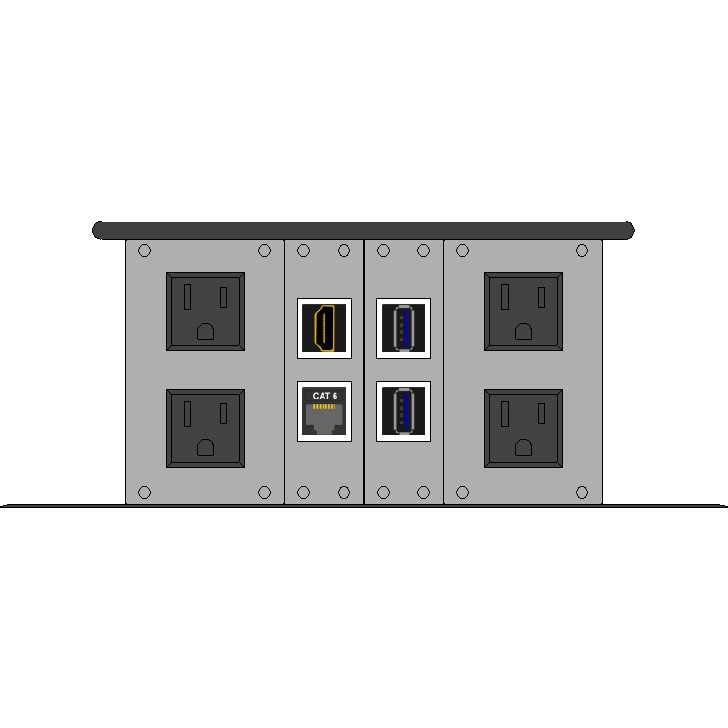

The PNP400C-B2 from Altinex is a dual sided pop up box enclosure that houses your video, audio, data, and power connections discretely and recessed in your conference room table.  The cable management box on each side holds 4 power, 1 HDMI, 2 USB 3.0, and 1 RJ45 Cat6 data jacks. If you wish to make the USB charging, simply plug the end of the cable into a USB charging hub. Dual sided pop ups are perfect when you want to have easier access from multiple sides of the table.

When in the closed position the black anodized aluminum top is nearly flush with your table, when you press the top the unit pops straight up so you can plug in your connections. To close, unplug your connections and press the top till it latches and it is back to being hidden in your table. The gas spring provides a super smooth and quiet operation for opening and closing.

The pop up can be installed in table thicknesses up to 4", if your table is thicker than this you will need to thin down the table where the pop up is to be installed. After cutting the 7.46" x 6.13" hole in your table, place the pop up in the hole, then secure the unit to the underside of the table with the included brackets. Your cables can then be plugged in, the video and data cables are 6' long with male ends, the power are two 9' long 3 prong plug cords.

The pop up can be installed in any table surface or podium that wants a concealed way to manage your connections in an attractive, functional, and affordable pop up for nearly any work surface.

Color:  Black anodized aluminum
Each side: 4 Power, 1 Cat6, 1 HDMI, 2 USB
6' male ended AV cables
Two 9' male ended power cables
UL listed for USA
Bezel size:  7.86" x 6.53"
Cutout size:  7.46" x 6.13"
Depth:  5.76"
Pop up height:  2.909"
Works in table thickness up to 4"
Weight:  8.3lbs
Includes all mounting hardware
10 year warranty, 1 year in spring

Color:  Black anodized aluminum
Each side: 4 power, 1 Cat6, 1 HDMI, 2 USB
6' male ended AV cables
Two 9' male ended power cables
UL listed for USA
Bezel size:  7.86" x 6.53"
Cutout size:  7.46" x 6.13"
Depth:  5.76"
Pop up height:  2.909"
Works in table thickness up to 4"
Weight:  8.3lbs
Includes all mounting hardware
10 year warranty, 1 year in spring
