Pop Up Connectivity AV Box, 2 Power, 2 Data, 2 HDMI, 2 USB-C - Silver

  |   Q&A

$433.35

Free shipping on orders over $99

Part #: TNP327CS2
Vendor: Altinex
Made to order
3 to 5 business day lead time to build before shipping
Ship To:
Check Arrival Date and Cost
Estimated Arrival
Estimated Cost
Maximum quantity available reached.

Altinex TNP327CS2 Pop Up Conference Table Audio, Video, and Power Pop Up Box

The pop up box is a single sided enclosure that houses your video, audio, data, and power connections discretely in your conference room table. When shut all you see is the beautiful and durable anodized silver aluminum finish, press the top and the unit flips up and is ready to be plugged into.

The Most Desired Connections Needed in Conference Rooms

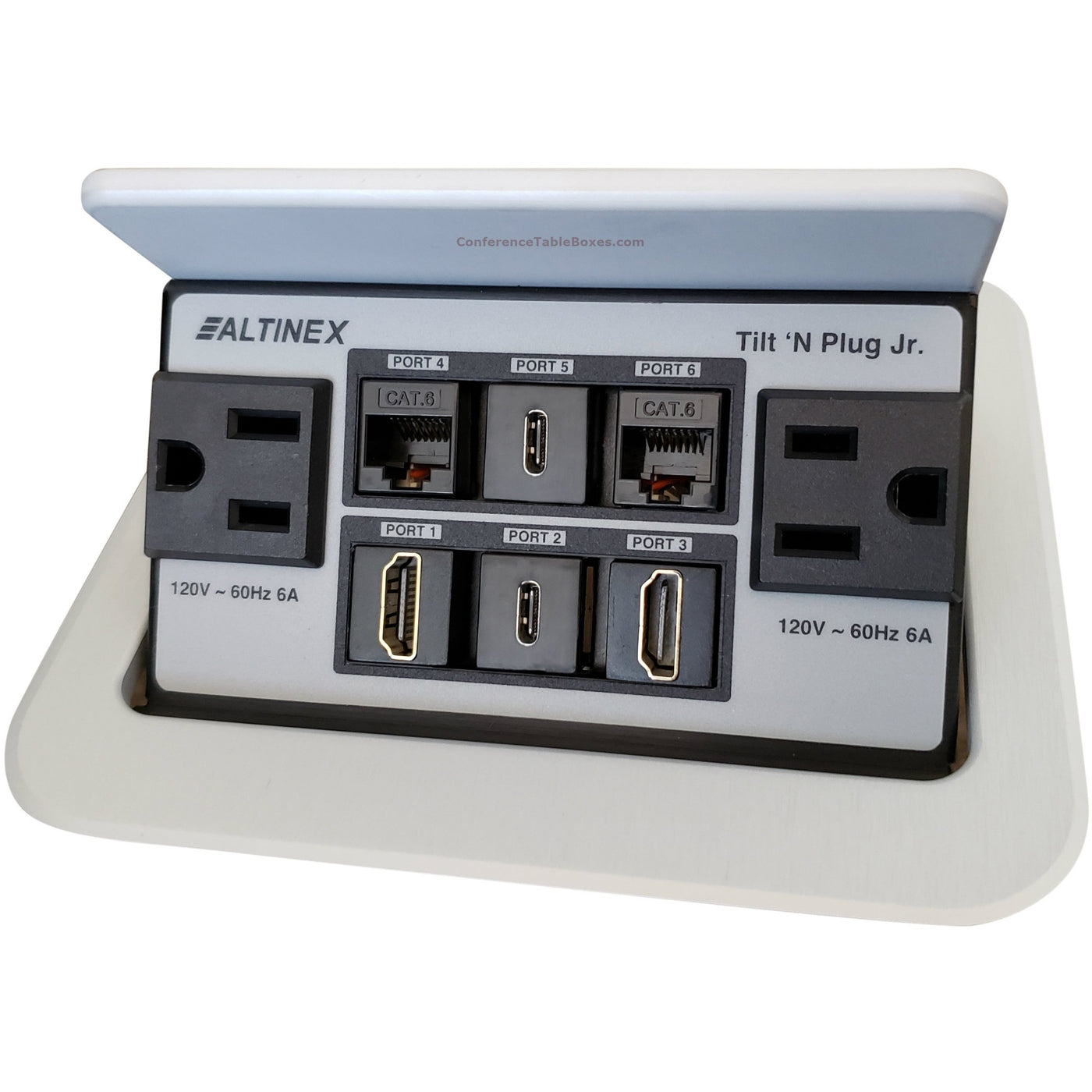

The cable management junction box holds 2 power, 2 HDMI, 2 USB-C, and 2 RJ45 Cat6 data jacks. The USB connections can be used for charging or as a pass through for data. These connections cover the most commonly needed ports in any conference room or boardroom.  Since there are two of each type, two users can be plugged in at once.

Beautiful Flush Appearance that Pops Up When Needed

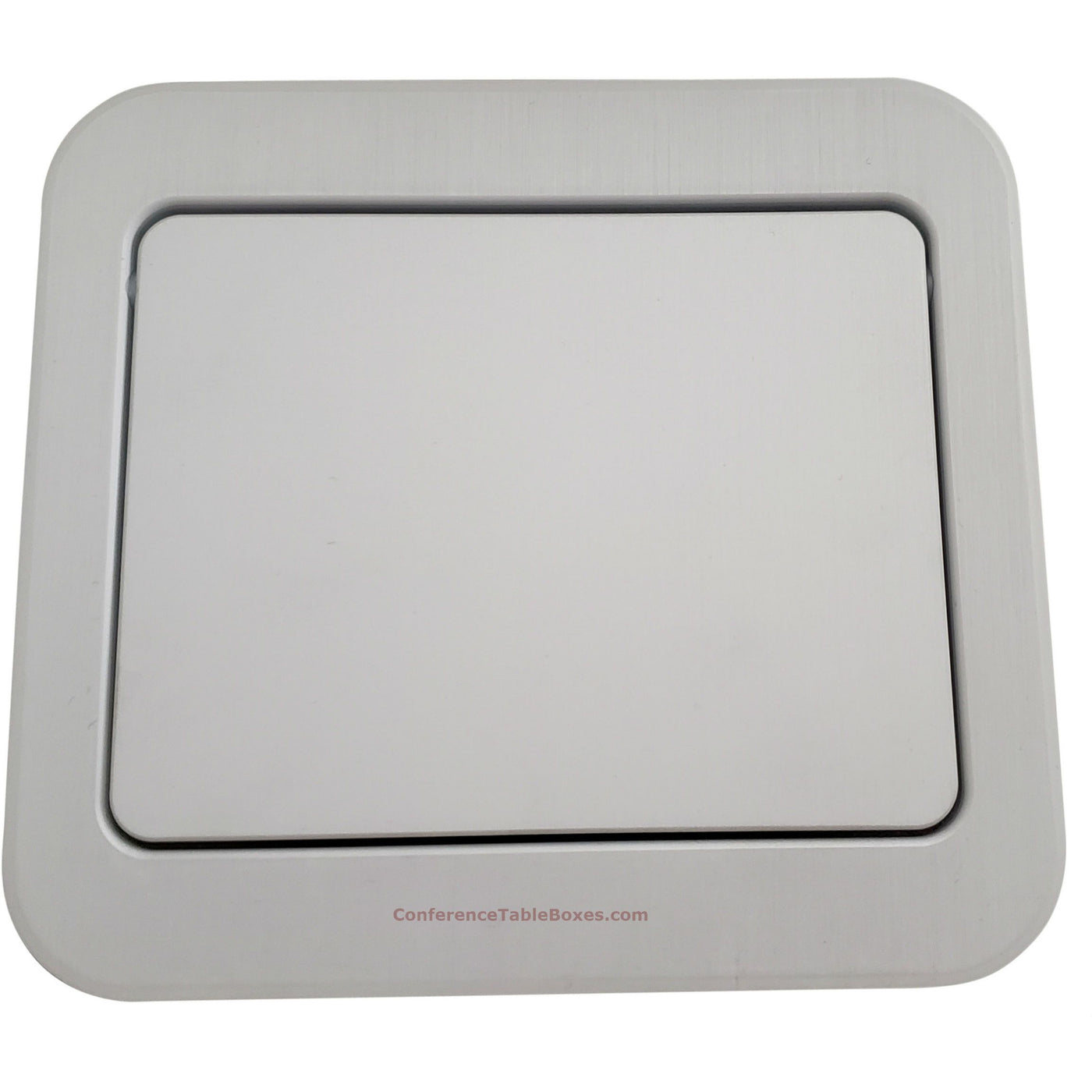

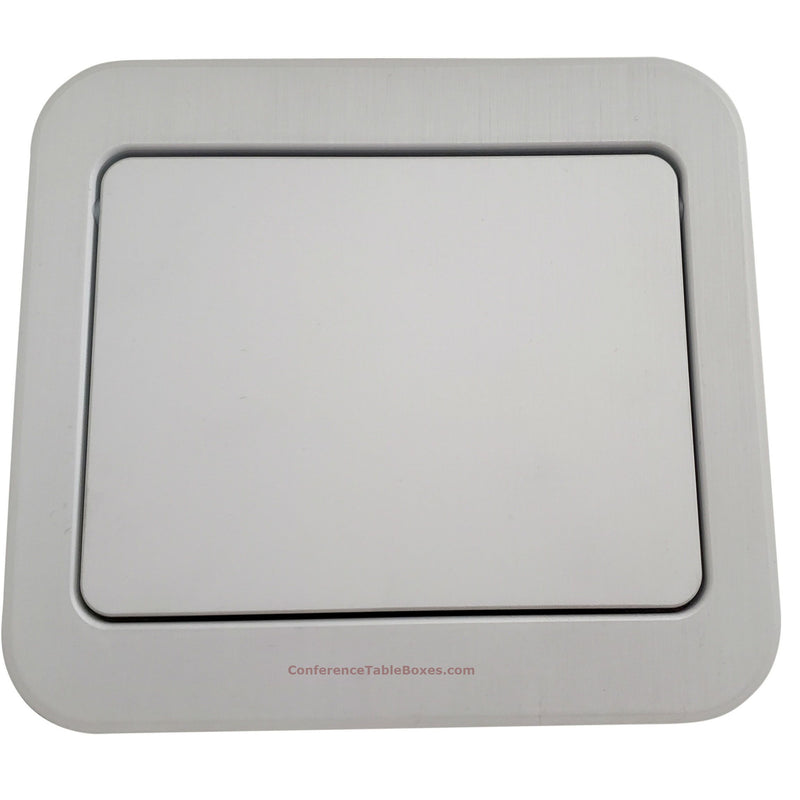

When in the closed position the silver anodized aluminum top is nearly flush with your table, the top is small coming in at only 5.7" x 5.2" making it very unobtrusive in your table. When you press the top the unit flips up at a 45 degree angle, so you can plug in your connections. To close, unplug your connections and press the top till it latches closed, and it is back to being hidden in your table. The hydraulic spring provides a super smooth and quiet operation for opening and closing.

Easy Installation for USA or Canada!

The pop up can be installed in table thicknesses up to 2.25", if your table is thicker than this, you will need to thin down the underside of the table where the pop up is to be installed. After cutting the 5.3" x 4.8" hole in your table, insert the pop up in the hole, then secure the unit to the underside of the table with the included brackets. Your cables can then be plugged in, the video and data cables are 6' long with male ends, the USB are 6' long with USB-A ends, the power is a single 9' long 3 prong plug cord. The tilt up box has been UL certified to work in the USA, and cUL certified for installations in Canada. The pop up can be installed in any table surface or podium that needs a concealed way to manage your connections in an attractive, functional, and affordable pop up.

Customizable if Needed

The connections in this pop up can be changed to meet your needs if required for your application, please contact us for a quote.

Specifications:

Color:  Silver anodized aluminum
2 power, 2 RJ45, 2 HDMI, 2 USB-C
6' male ended AV cables
Single 9' male ended power cable
Smooth and quiet gas spring operation
UL listed for USA, cUL listed for Canada
UL File # E254082
Bezel size:  5.7" x 5.2"
Cutout size:  5.3" x 4.8"
Depth:  3.86"
Pop up height: 2.51"
Works in table thickness up to 2.5"
Weight:  2.8lbs
Includes all mounting hardware
10 year warranty, 1 year on spring
Replaceable spring, part # AC401-307
Altinex TNP327CS2 User Guide (PDF)
Altinex TNP327CS2 Cutout Template (PDF)


Color:  Silver anodized aluminum
2 power, 2 RJ45, 2 HDMI, 2 USB-C
6' male ended AV cables
Single 9' male ended power cable
Smooth and quiet gas spring operation
UL listed for USA, cUL listed for Canada
UL File # E254082
Bezel size:  5.7" x 5.2"
Cutout size:  5.3" x 4.8"
Depth:  3.86"
Pop up height: 2.51"
Works in table thickness up to 2.5"
Weight:  2.8lbs
Includes all mounting hardware
10 year warranty, 1 year on spring
Replaceable spring, part # AC401-307
