HDMI 2.0 HDBaseT Extension Set, 4K60, 18G, PoC, IR, Ethernet, 330'

  |   Q&A

$690.77

Free shipping on orders over $99

Part #: DL-HDE100-H2
Vendor: Liberty AV
Ships from manufacturer
You will be notified within 1 business day of the expected ship date
Ship To:
Check Arrival Date and Cost
Estimated Arrival
Estimated Cost
Maximum quantity available reached.

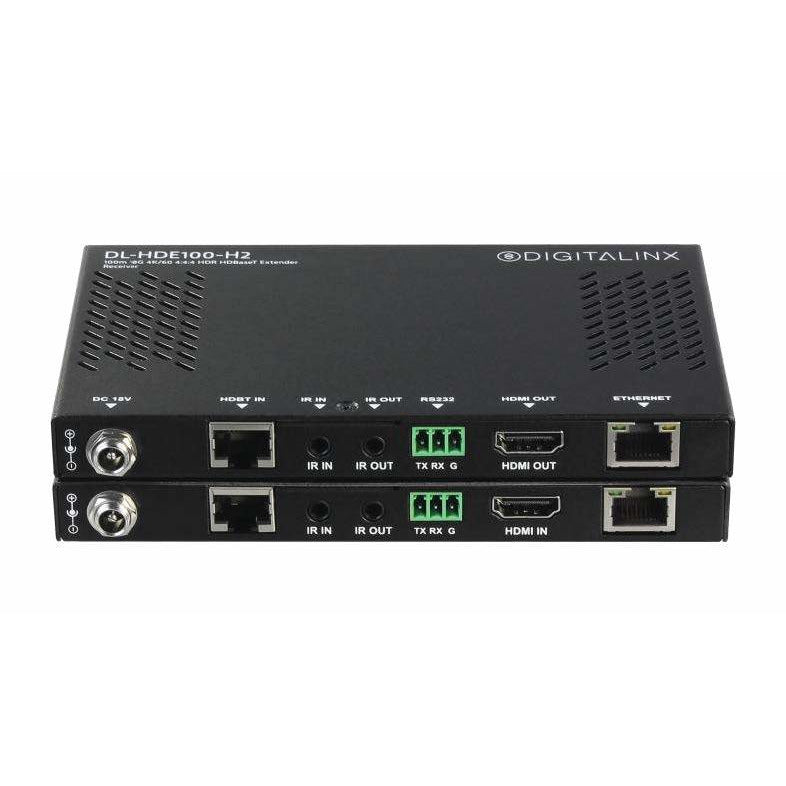

The Digitalinx DL-HDE100-H2 is an extender set containing a transmitter and receiver for providing long reach signals and 2-way power over CAT6 twisted pair cable. The DL-HDE100-H2 extends video and audio signals as well as control up to 330' at 4K 60Hz (4:4:4) resolution and supports HDMI 2.0, HDR10, and HDCP 2.2 in addition to Dolby Atmos and DTS:X audio.

High Performance Extender

The extender system supports flexible power so an entire extender circuit can be powered by either the transmitter or receiver side. The DL-HDE100-H2 can transport HDMI data rates up to 18Gbps for up to 330'. The system supports high data rates by utilizing visually lossless compression at a 2:1 data compression rate when the signal is greater than 10Gbps, anything under that will not be compressed. Control extension supports bidirectional IR (Infrared), Ethernet pass through, RS232 pass through; and with built in re-clocking circuitry, the system is backwards compatible with older HDMI version chip sets.

Specifications:

Video compliance: HDMI 2.0+, HDCP2.2, CEC
Resolution: SMPTE up to 4096x2160@60H (4:4:4) 8 bit deep color and
VESA: up to 1920x1200
Max Pixel Clock: 600MHz
Embedded Audio: UP to PCM 8 channel, Dolby Digital, DTS, True HD,
DTS-HD Master Audio, Dolby Atmos
Max Signal Distance: 1080p: 330 ft, 4K@60 4:4:4: 230 ft
Bandwidth: 18 Gbps
Includes: transmitter, receiver, power supply, adapter plugs (US, EU, AU, UK)
4 mounting brackets, 4 mounting screws, IR adapter cable, IR emitter and receiver
Dimensions: 5.90" x 3.75" x .62"
Weight:  0.57lbs
5 year warranty
Quick Start Guide (PDF)
User Manual (PDF)

Video compliance: HDMI 2.0+, HDCP2.2, CEC
Resolution: SMPTE up to 4096x2160@60H (4:4:4) 8 bit deep color and
VESA: up to 1920x1200
Max Pixel Clock: 600MHz
Embedded Audio: UP to PCM 8 channel, Dolby Digital, DTS, True HD,
DTS-HD Master Audio, Dolby Atmos
Max Signal Distance: 1080p: 330 ft, 4K@60 4:4:4: 230 ft
Bandwidth: 18 Gbps
Includes: transmitter, receiver, power supply, adapter plugs (US, EU, AU, UK)
4 mounting brackets, 4 mounting screws, IR adapter cable, IR emitter and receiver
Dimensions: 5.90" x 3.75" x .62"
Weight:  0.57lbs
5 year warranty
Quick Start Guide (PDF)
User Manual (PDF)
