Pop Up Podcast Box, Volume, USB, HDMI, Headphone Jack, Cough Button

1 review   |   Q&A

$517.50

Free shipping on orders over $99

Part #: TNP130
Vendor: Altinex
Ships directly from manufacturer
Maximum quantity available reached.

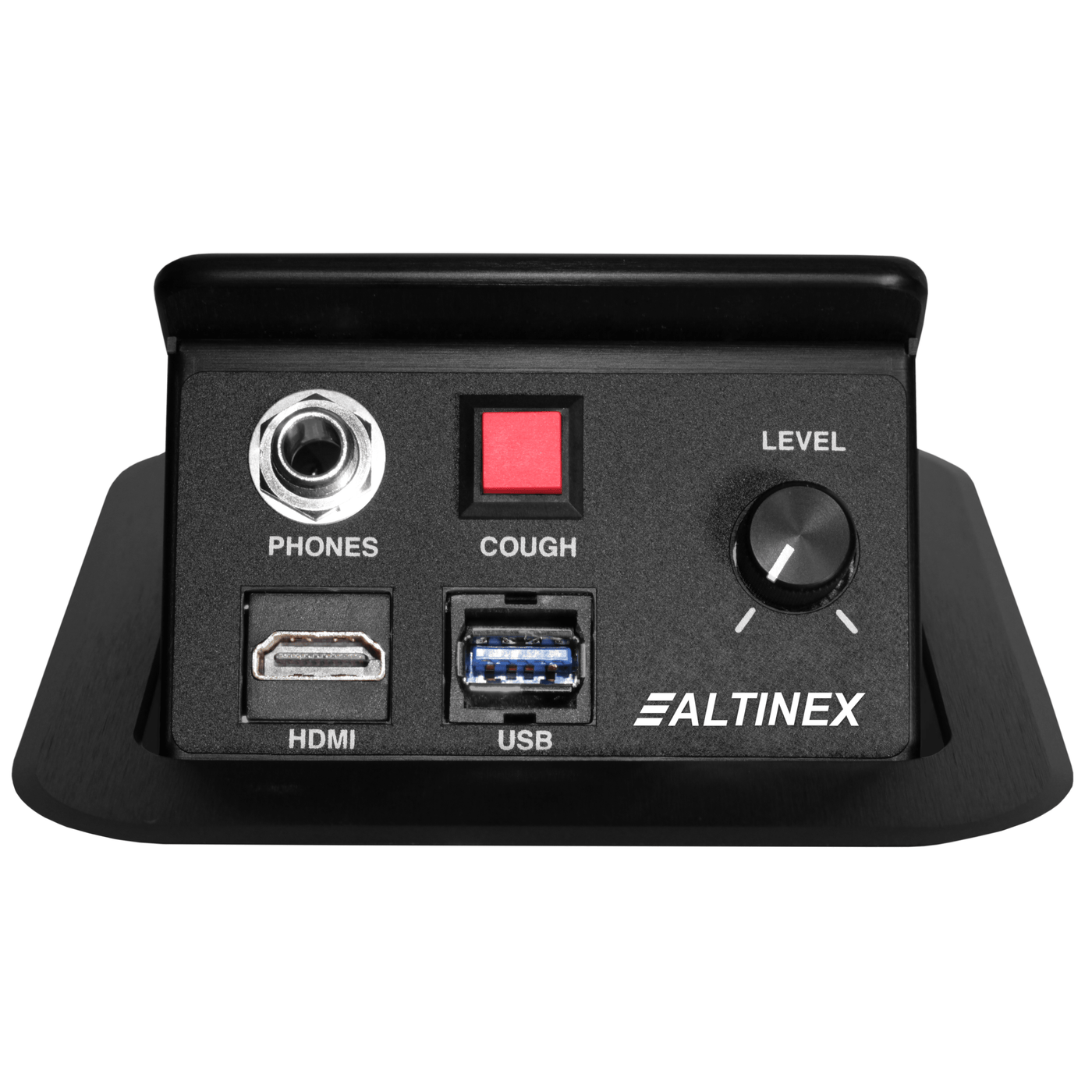

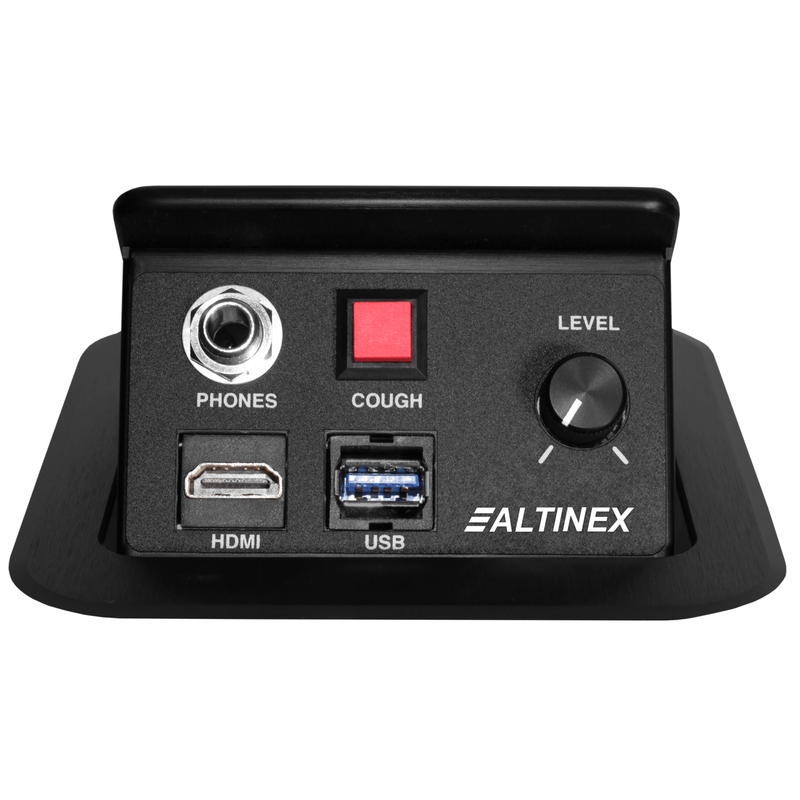

Altinex TNP130 Pop Up Podcast Communication Box

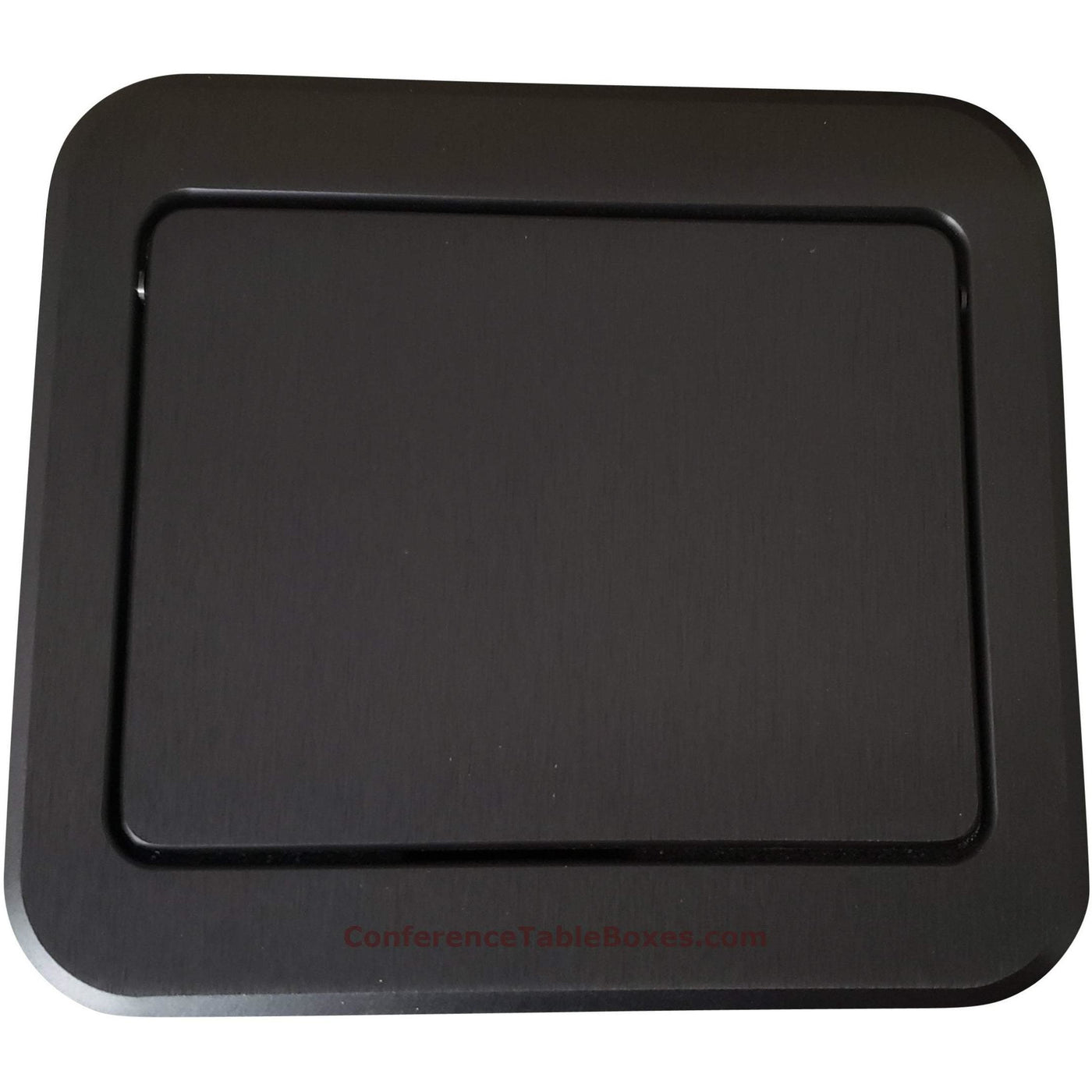

The single sided pop up box enclosure houses all the equipment connections you need for your podcast including volume control, headphone jack, cough button (mute), HDMI, and USB. When in the closed position the black anodized aluminum top is nearly flush with your table, when you press the top the unit flips up at a 45 degree angle so you can plug in your connections.  To close, unplug your connections and press the top till it latches and it is back to being hidden in your table. The hydraulic spring provides a super smooth and quiet operation for opening and closing.

Contains all the Necessary Connections for any Podcast

Volume Control: The user can control the level of volume heard through their headphones.

Cough Button: The user can mute their microphone whenever they need to cough, or make any noise that they don't want to be heard.

Headset Plug: Standard sized 1/4" headphone jack for quick connection.

HDMI: The user can plug in an HDMI connection to display content.

USB 3.0: Use as a passive connection to transfer data via the USB connection. Alternatively simply plug the end of the USB connection into a USB charging hub to make the port charging, this is perfect for guests to be able to charge their phones or laptops.

Create a Hidden Look in a Podcast Table in Minutes

The pop up can be installed in table thicknesses up to 2.25", if your table is thicker than this you will need to thin down the table where the pop up is to be installed. After cutting the 4.5" x 4.2" hole in your table, place the pop up in the hole, then secure the unit to the underside of the table with the included brackets. Your cables can then be plugged in, the cables are 6' long with male ends, the power is 9' long.

The tilt up box has been UL certified to work in the USA, and cUL certified for installations in Canada. The pop up can be installed in any table surface that wants a concealed way to manage your connections in an attractive, functional, and affordable pop up for nearly any table surface.

Specifications:

Color:  Black anodized aluminum
Connections:  USB 3.0, HDMI, headphone
Volume control button
Cough (mute) button: SPST switch
6' male ended cables, 9' power
UL listed for USA, cUL listed for Canada

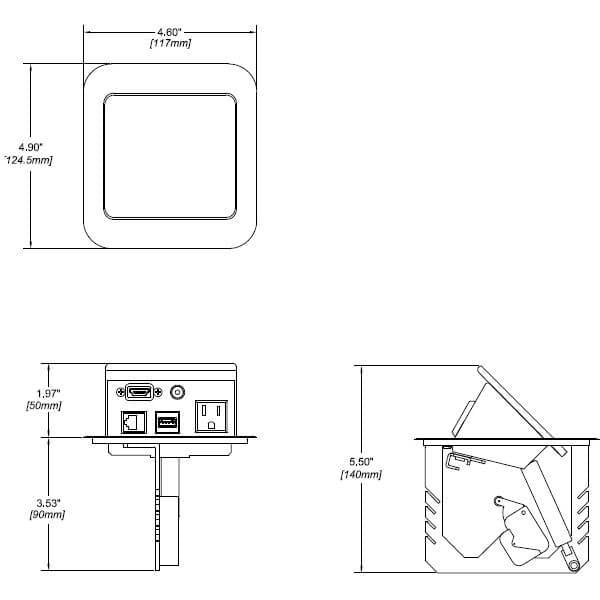

Bezel size:  4.9" x 4.6"
Cutout size:  4.5" x 4.2"
Depth:  3.53"
Pop up height:  1.97"
Works in table thickness up to 2.5"
Weight:  2.8lbs
Includes all mounting hardware
10 year warranty, 1 year on spring

Color:  Black anodized aluminum
Connections:  USB 3.0, HDMI, headphone
Volume control button
Cough (mute) button: SPST switch
6' male ended cables, 9' power
UL listed for USA, cUL listed for Canada
Bezel size:  4.9" x 4.6"
Cutout size:  4.5" x 4.2"
Depth:  3.53"
Pop up height:  1.97"
Works in table thickness up to 2.5"
Weight:  2.8lbs
Includes all mounting hardware
10 year warranty, 1 year on spring
