HDMI Pigtail Adapter Ring with Mini DisplayPort, Apple USB-C, Lightning
| Q&A$231.45
Free shipping on orders over $99
The Liberty AV Digitalinx DL-AR2789 is a digital key ring designed to hold video adapters that all convert to HDMI. The ring adapter converts from mini DisplayPort, USB-C, and Apple Lightning; to HDMI One great use of the ring is for presentations, when it may be unclear what device is required to display content. Adapter rings are perfect for conference rooms, boardrooms, training rooms, classrooms, or anywhere quick and easy video conversion is needed. No matter the laptop or mobile device source, the ring will always be ready to adjust the video output connection.
Always Have the Correct Adapter
With the Liberty AV Digitalinx key ring, the correct adapter is always available when needed most. Never again look for an adapter when the presentation needs to start. Included on the ring is the HDMI clamp. The HDMI cable clamps to the ring with the adapters, ready for use in one complete assembly. When time to present, simply plug the HDMI cable into the corresponding adapter on the ring, and the video will be properly converted and show on the display. Perfect for the IT department looking for an easy solution for employees and guests, IT administrators never need to be called to meetings again.

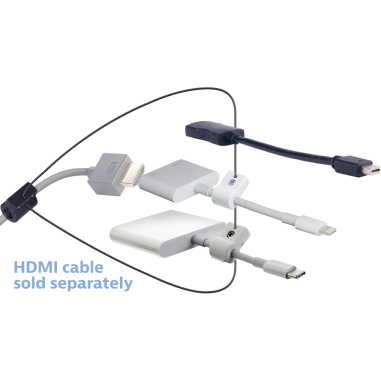

The Ring Includes the Following 3 Pigtail Adapters
1. Mini DisplayPort Male to HDMI Female 6" Adapter- The mini DisplayPort connection are common to older Macintosh computers, and other various laptops. Passes 1080P video with audio.
2. Apple Lightning to HDMI Female 4" Adapter- The Lightning adapter is used to connect up the latest Apple products and passes 1080P video with audio. Use with:
-iPhone 5 and above
-iPad 4th generation and above
-iPad Air and above
-iPad Mini 1st generation and above
-iPad Nano 7th generation
-iPad Touch 5th generation and above
3. USB-C Male to HDMI Female 4" Multiport Apple Adapter, with support for USB-A 3.1 and USB-C for charging- The USB-C is common to new laptops, phone, tablets, and MacBook. It is backwards compatible with Thunderbolt 3. Passes 4K30 video with audio. Use the USB female port to connect up a USB device, such as a flash drive. Use the USB-C female connector for charging.
Secure Cable Ring that Locks to an HDMI Cable, Easy Installation
The 6" long pigtail adapters are attached to a tensile aircraft strength cable. Inside the cable are several stainless steel strands of wires, making the cable very difficult to cut. Adapters easily slide on the smooth-to-the-touch cable. To install, attach your HDMI cable to the clamp on the ring, and installation is complete. The HDMI clamp can accommodate HDMI cables 4mm to 11mm thick.
Reliable Hardwired Connection, Requires no Power
The pigtail adapters pass 1080P HD video including audio, with zero degradation. The adapters are passive, they require no external power to convert the signal to HDMI. The adapter connectors are gold plated enabling transmission of the highest quality signals. Adapter rings are a dependable solution for all video display needs, and are an easy-to-install and affordable technology. The adapters are an excellent choice for conference rooms, huddle rooms, boardrooms, lecture halls, or any school or corporate location.
The Adapters can Easily be Modified as Technology Changes
When next generation technology develops, new adapters can easily be added to the ring, and no longer needed adapters can be removed from the ring. If a ring was ordered and adapters were missed, those can quickly be added as well. The ring was meant to be a fuss-free economical solution able to accommodate technology needs.
A T10 Torx pin screwdriver and a 1.5mm hex wrench is needed to add or remove adapters, as well as to attach the HDMI cable to the ring. This item is purchased separately as part number Liberty AV T10PD.
Fully Customizable Ring
There are several different adapter rings to choose from. If you are not seeing what you want, please see our full list of HDMI adapter rings HERE.
Need help configuring an adapter ring, or want a company logo on the adapter ring? Please contact us via live chat, or call us at 888-507-5957
Specifications:
3 pigtail adapters that each converts to HDMI
Adapters are attached to secure cable
Adapters pass 1080P video with audio
USB-C passes 4k video with audio
Includes HDMI cable clamp
Easily remove and add adapters as needed
To install, attach your HDMI cable to ring
T10 driver & 1.5mm hex needed to attach HDMI cable
Liberty AV T10PD screwdriver kit sold separately
Includes the following adapters:
1. Mini DisplayPort female to HDMI male, 6" pigtail
2. Apple Lightning female to HDMI male, 4" pigtail
3. USB-C Male to HDMI Female 4" Multiport Adapter
HDMI cable sold separately
Two year warranty
-Liberty AV Digitalinx DL-AR Specifications (PDF)
-How to Install Adapter Ring to HDMI Cable (PDF)
3 pigtail adapters that each convert to HDMI
Adapters are attached to secure cable
Adapters pass 1080P video with audio
USB-C passes 4K video with audio
Includes HDMI cable clamp
Easily add adapters when needed
To install, attach your HDMI cable to ring
T10 driver & 1.5mm hex needed to attach HDMI cable
Liberty AV T10PD screwdriver kit sold separately
Includes the following adapters:
1. Mini DisplayPort female to HDMI male, 6" pigtail
2. Apple Lightning female to HDMI male, 6" pigtail
3. USB-C Male to HDMI Female 4" Multiport Adapter
HDMI cable sold separately
2 year warranty
-Liberty AV Digitalinx DL-AR Specifications (PDF)
-How to Install Adapter Ring to HDMI Cable (PDF)
