Recessed Round Floor Box for Concrete with Power & Data, Dark Bronze
| Q&A$109.00
Free shipping on orders over $99

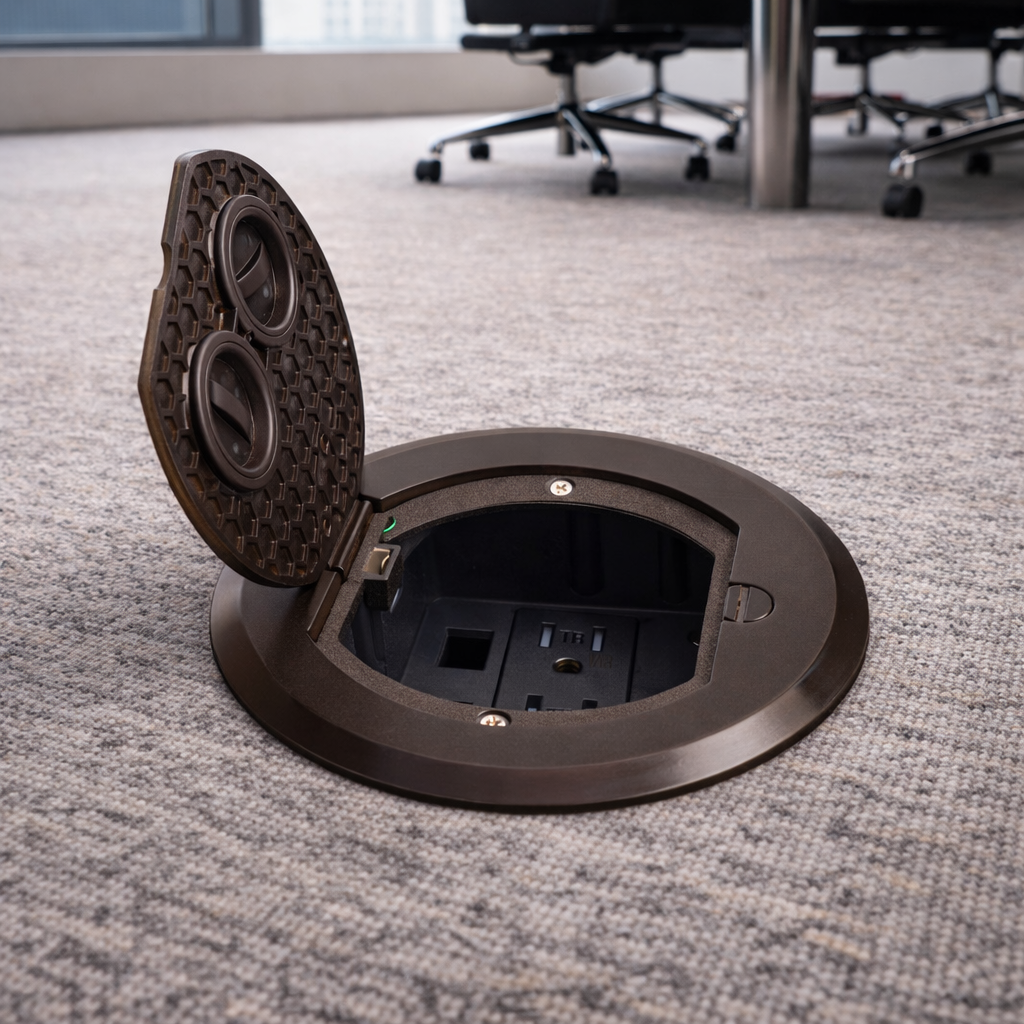

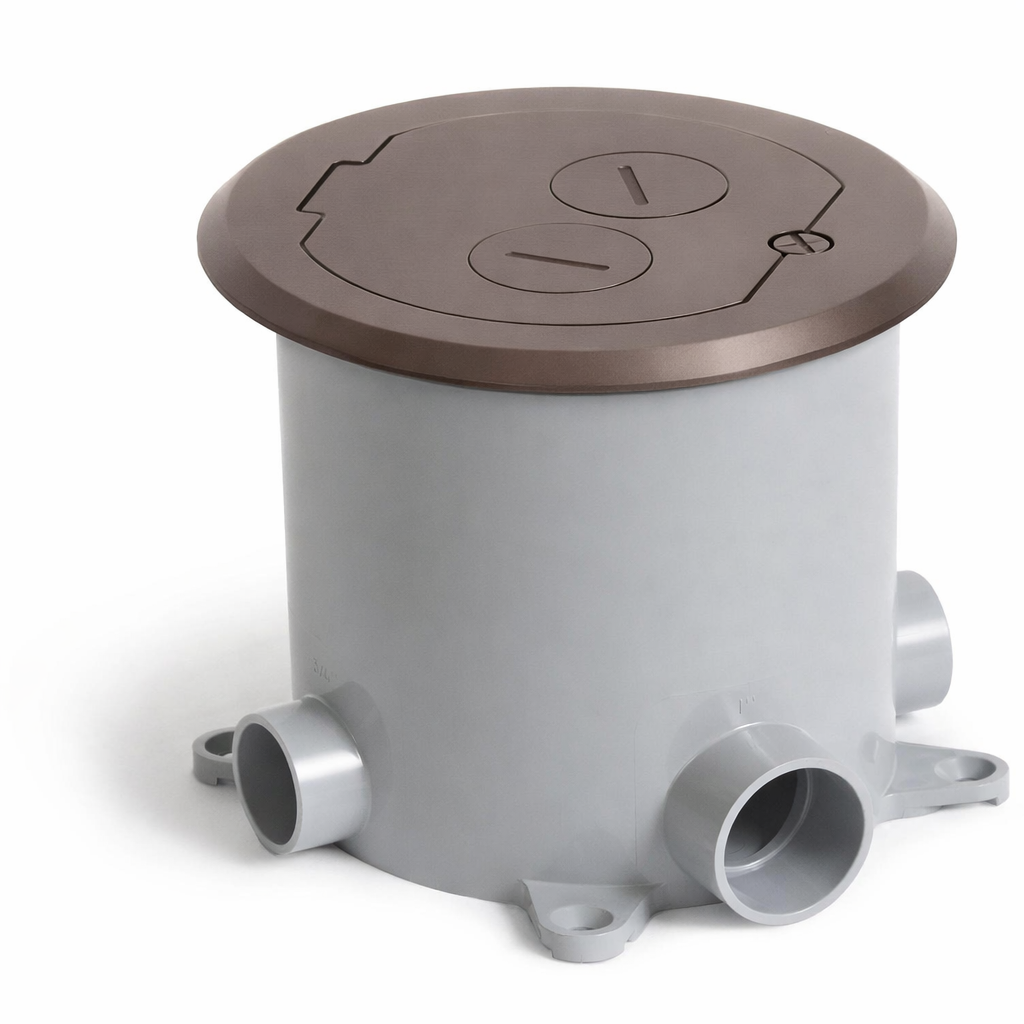

Lew Electric RRFB-DB-FB Round Dark Bronze Recessed Floor Box for Conference Rooms
Deliver clean, professional power directly to your conference room floor without disrupting the space. The Lew Electric RRFB-DB-FB is designed to keep connections organized, protected, and out of sight making it an ideal solution for boardrooms, meeting areas, and collaborative workspaces.
With a recessed design and low-profile dark bronze finish, this floor box allows power and data to be accessed exactly where it’s needed while maintaining a clean, modern appearance.
Built for Concrete Conference Room Floors
Engineered for commercial environments, this system installs directly into concrete and is suitable for both new construction and retrofit applications.
Included components:
- Lew Electric FB series floor box
- RRFB-LRA leveling ring assembly for precise height adjustment
Recessed Power for Safer, Cleaner Meeting Spaces
Unlike traditional floor outlets, this design keeps plugs below the floor surface, helping maintain a safer and more organized environment—especially important in conference rooms with foot traffic and rolling chairs.
Key advantages:
- Minimizes trip hazards around tables and walkways
- Protects cords from damage and wear
- Keeps cable clutter hidden and contained
- Maintains a clean, professional floor appearance
The cover allows flexible use:
- Open the hinged lid for temporary access
- Use the screw plug openings for dedicated, always-connected equipment
Rubber grommets are included to protect cords and maintain a finished look.
Dark Bronze Finish for Modern Interiors
The durable dark bronze cover is designed to complement contemporary office environments and high-end conference tables.
- Low-profile, flush-to-floor design
- Blends seamlessly with commercial flooring finishes
- Resistant to wear in high-traffic areas
- Clean aesthetic suited for executive spaces
Power + Data Connectivity for Conference Tables
Inside the box, you’ll find integrated power along with customizable data capability—perfect for modern meeting rooms.
- 15A duplex receptacle (black)
- Two keystone openings for data, AV, or communication ports
- Internal divider separates power and low-voltage for code compliance
Ideal for:
- Ethernet (Cat6)
- HDMI or AV connections
- Custom conference room integrations
Certified for Commercial Use
Built to meet North American electrical standards for both safety and performance.
- ETL Listed (Intertek) – USA & Canada
- ETL File #: 4004534
- Conforms to UL 498
- Conforms to CSA C22.2 No. 42
- UL Listed receptacle – File E309821
Ideal for Conference & Commercial Applications
Specifically suited for spaces where clean floor access is critical:
- Conference rooms & boardrooms
- Training and meeting spaces
- Open office collaboration areas
- Hospitality meeting rooms
- Retail and commercial environments
Installation Overview
Designed for straightforward installation in concrete floors:
- Secure the floor box in position
- Pour concrete around the unit
- Run electrical and low-voltage connections
- Trim inner box to finished floor height
- Adjust leveling ring for a flush finish
Why This Works for Conference Rooms
- Keeps power exactly where teams need it—under the table
- Eliminates messy extension cords across the floor
- Supports both power and data in one location
- Maintains a clean, high-end appearance
- Built for durability in high-use commercial environments
- Affordable!
Specifications:

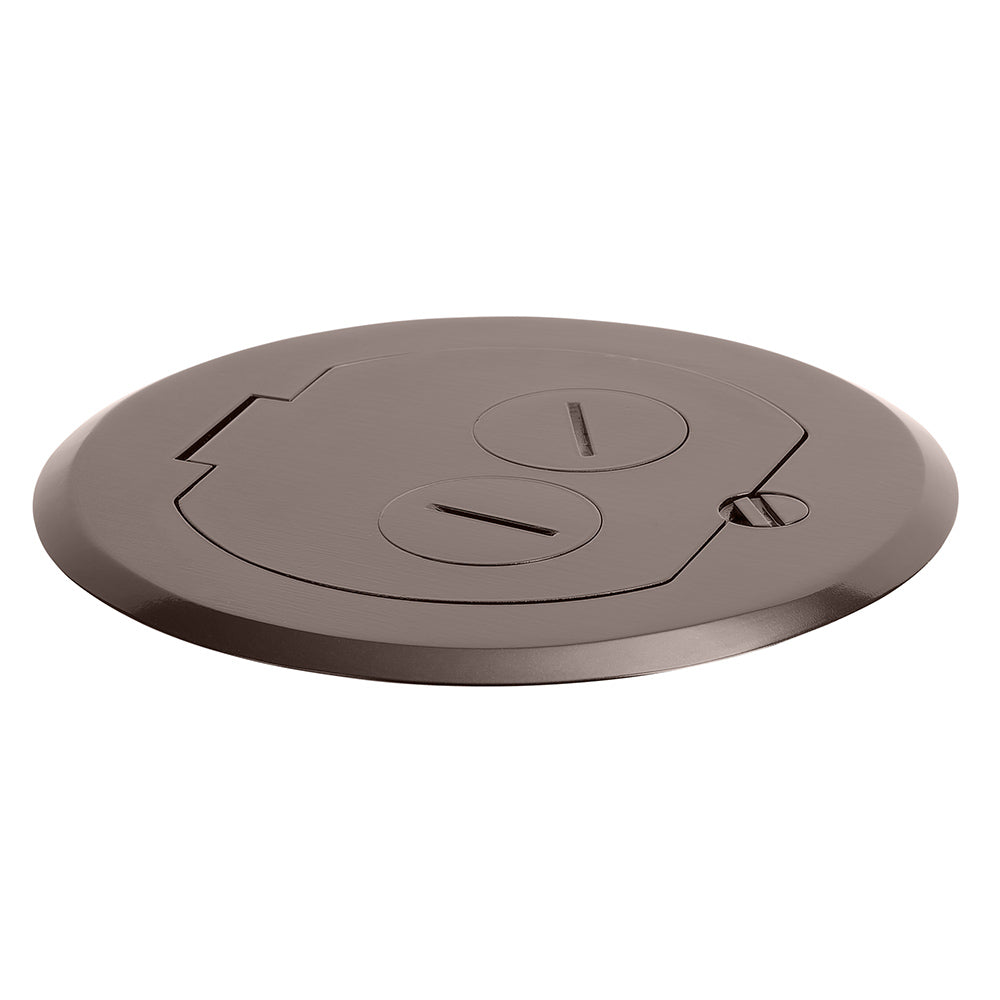

- Cover: Metal dark bronze
- Installs in concrete with included FB box
- Single hinged lid or
- (2) 1.25" screw plugs for access with rubber grommets
- Outlet: 1 duplex 15A tamper-proof
- 2 keystone openings, buy data jacks HERE
- Built-in divider in box
- Connect low in the box to hide your plugs
- ETL listed # 4004534
- UL listed outlet# E309821
- Conforms to CSA C22.2 No. 42 for Canada
- Includes keystone blanks
- Cover size: 5.75"
- Back box size: 4.52"round, 5.95" deep
- Cover thickness: .2188"
- Minimum height: 3.15"
- Warranty: 1 year
Box Diagram (PDF)
Cover Diagram (PDF)
Concrete Installation Instructions (PDF)
- Cover: Metal dark bronze
- Installs in concrete with included FB box
- Single hinged lid or
- (2) 1.25" screw plugs for access with rubber grommets
- Outlet: 1 duplex 15A tamper-proof
- 2 keystone openings, buy data jacks HERE
- Built-in divider in box
- Connect low in the box to hide your plugs
- ETL listed # 4004534
- UL listed outlet# E309821
- Conforms to CSA C22.2 No. 42 for Canada
- Includes keystone blanks
- Cover size: 5.75"
- Back box size: 4.52"round, 5.95" deep
- Cover thickness: .2188"
- Minimum height: 3.15"
- Warranty: 1 year
Installation Manual (PDF)
