Concrete Pour Floor Box, 4 Decora Openings, Hinged Lid, Black

  |   Q&A

$325.00

Free shipping on orders over $99

Part #: CF9C4B
Vendor: Lew Electric
Maximum quantity available reached.

Raised Access Floor Box

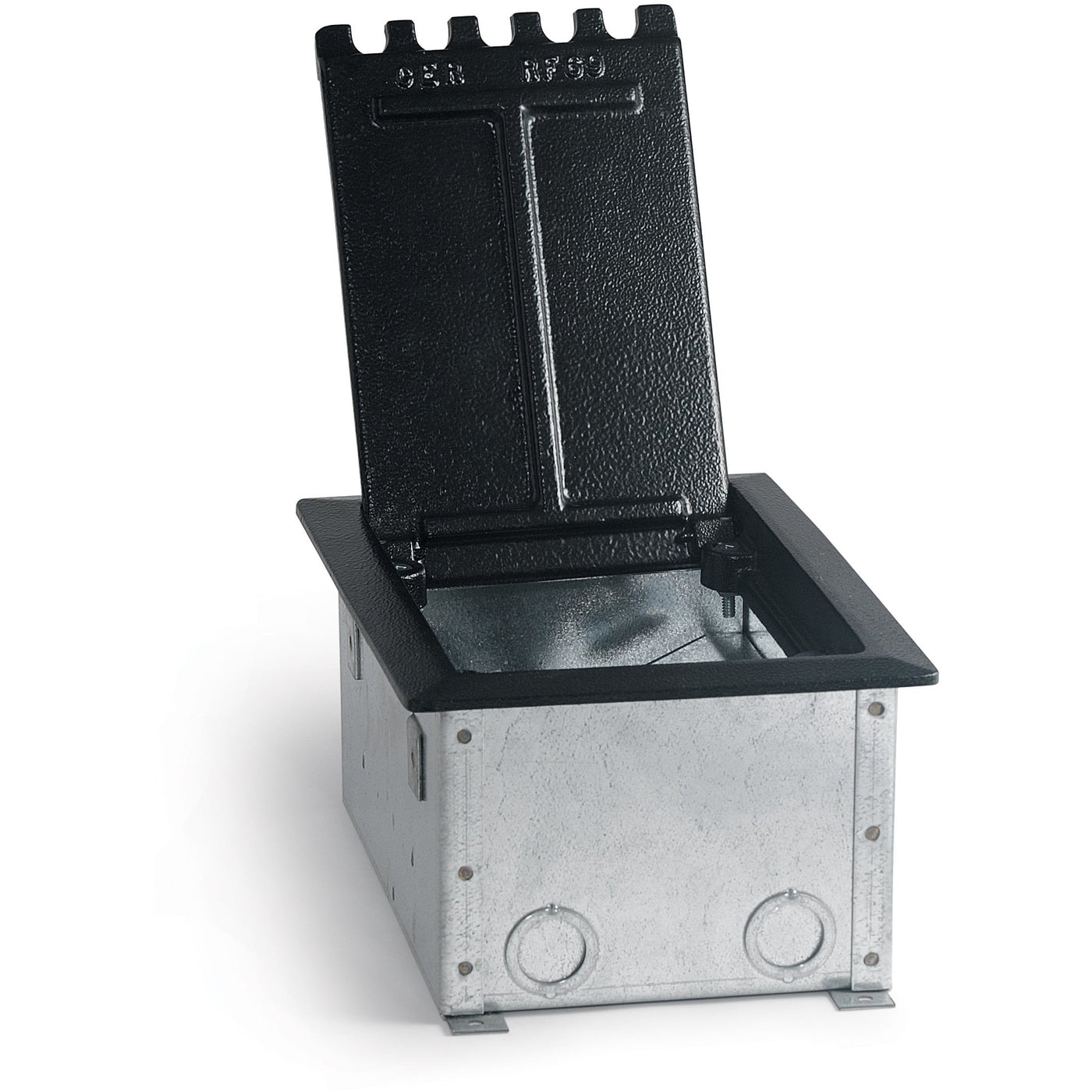

The Lew Electric CF9C4B provides an in-floor solution for connectivity in a concrete poured floor.  The box is simple to install, and the decora openings allow the user to install exactly their choice of power, data, and video connections.

Connections

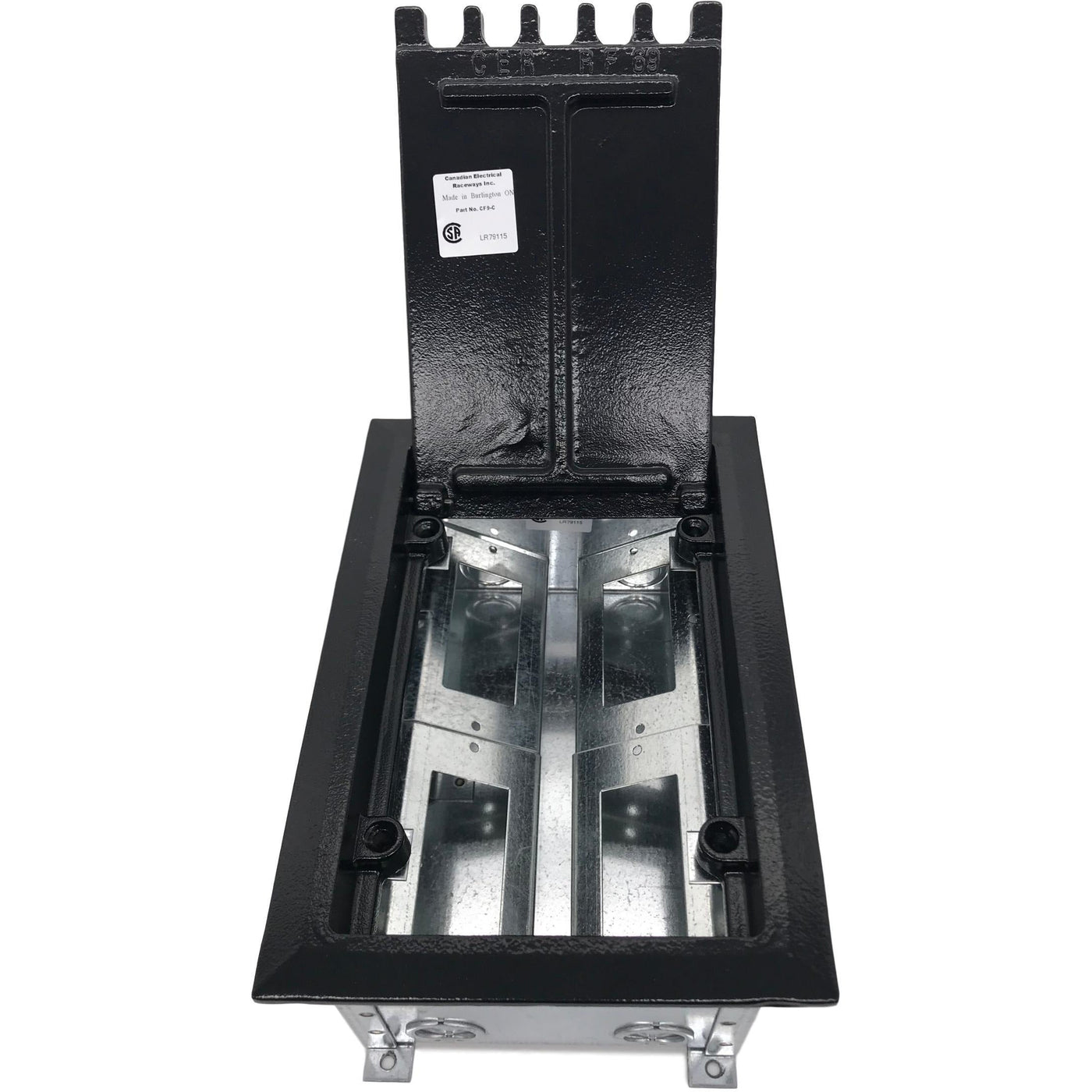

Inside the box you will find 4 decora openings, this makes it simple to add whatever connections you need by using standard decora size devices. Add any decora outlet for power or USB charging, or any decora keystone plate for video, audio, and data connections.

Hinged Lid with Cable Pass Thru

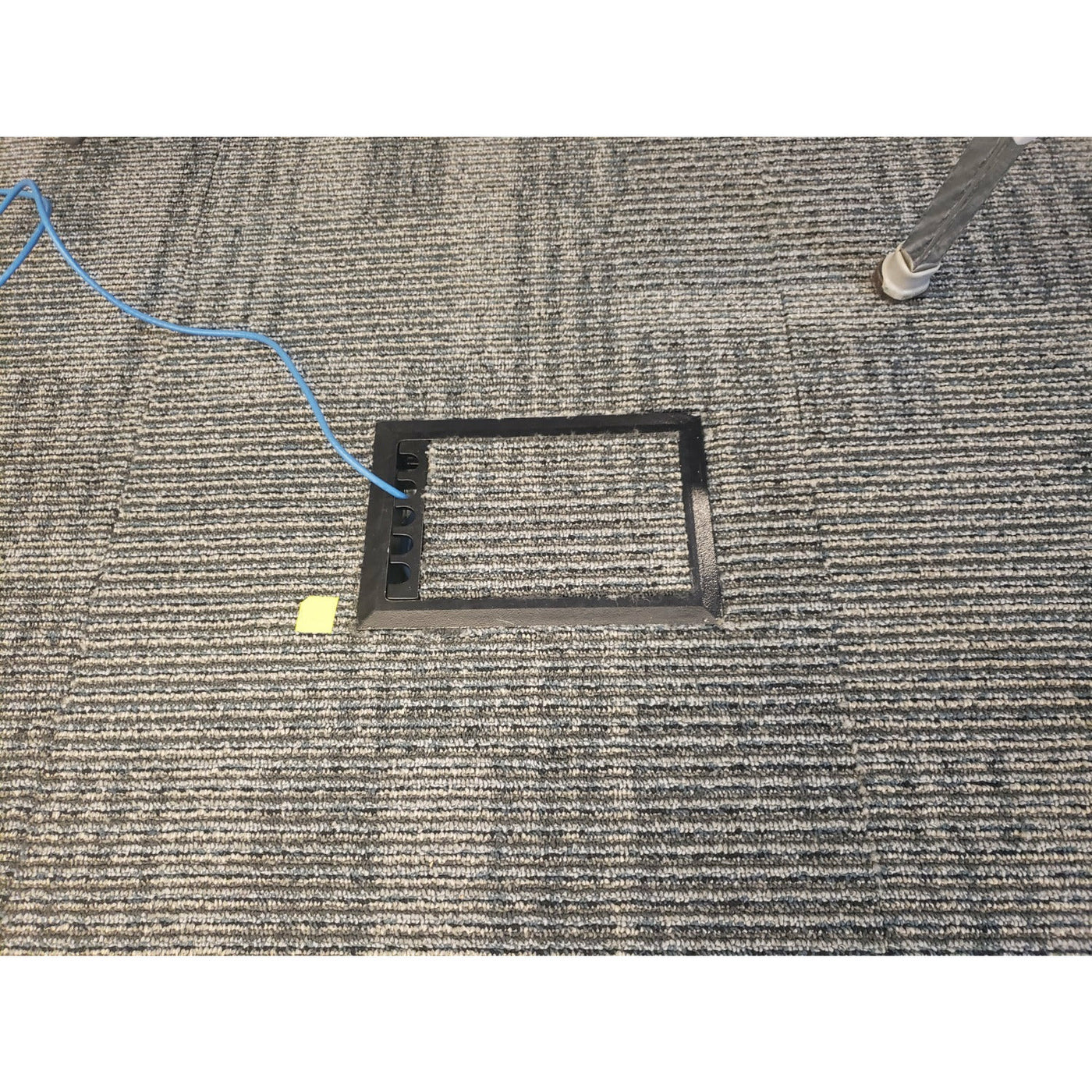

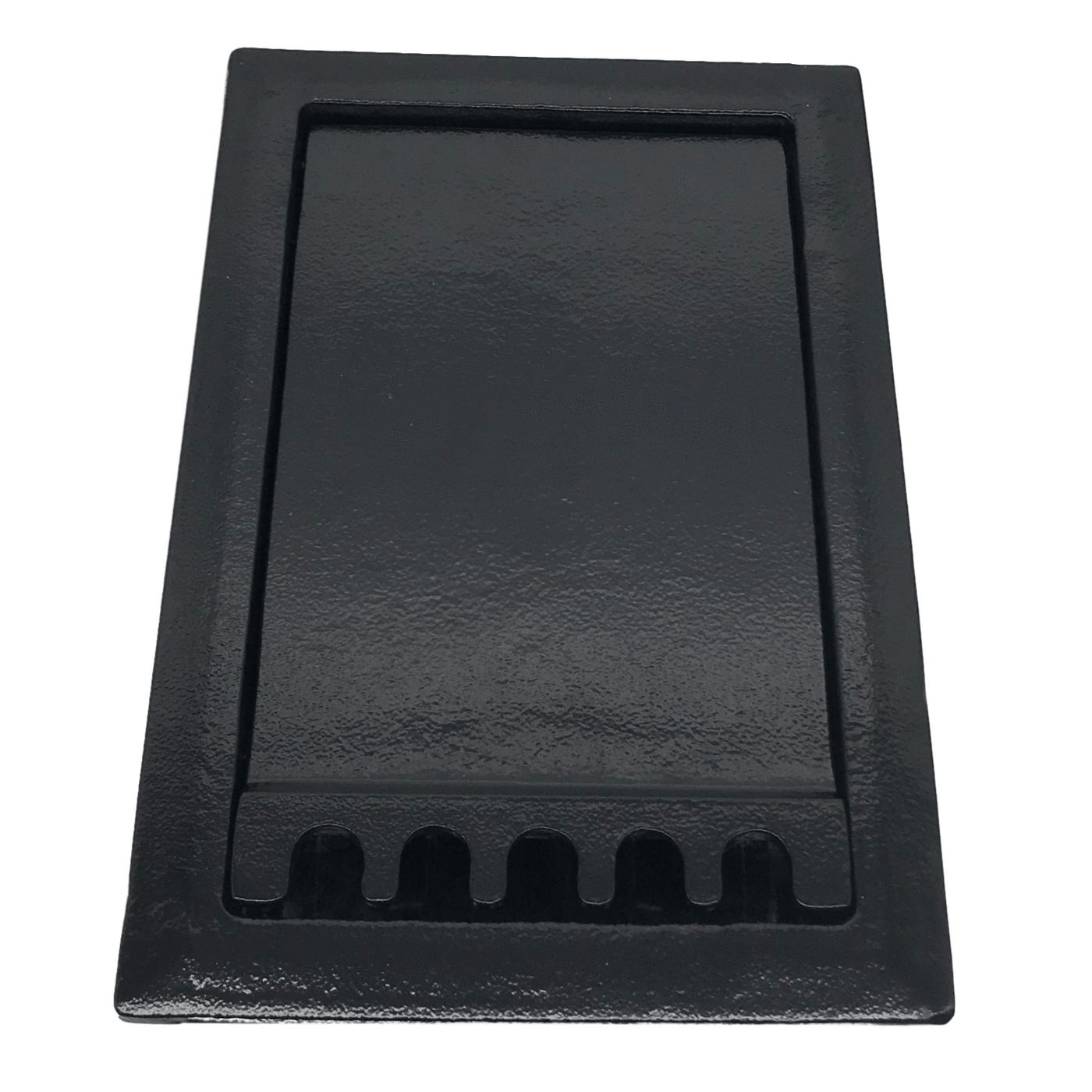

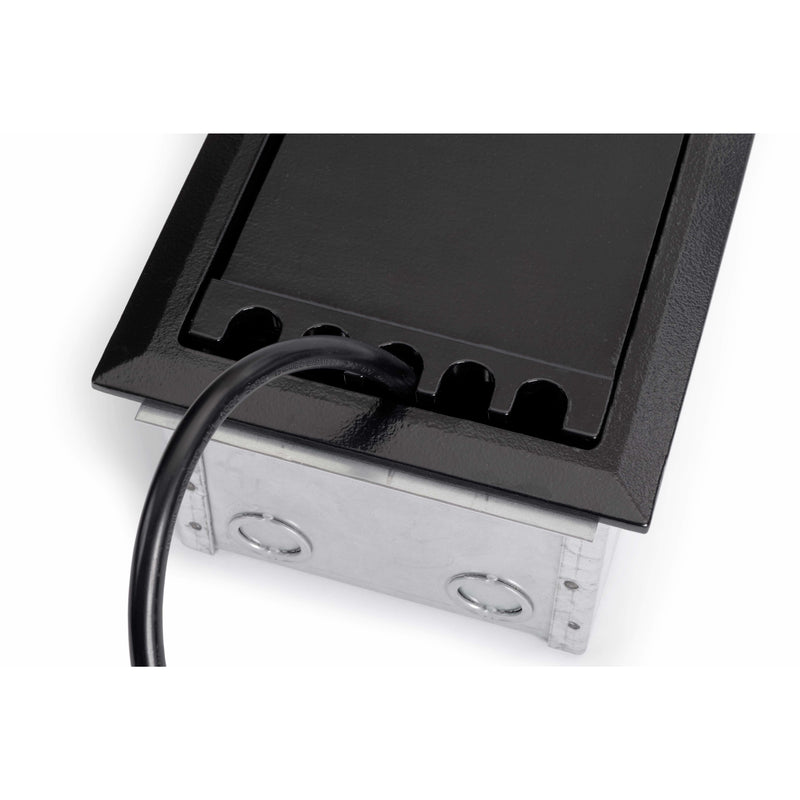

Simply lift the lid to gain access to your connections, there are 5 openings in the cover that allow the lid to be closed while the cables are still plugged in. The cover features a 1/4" recess opening to allow carpet to be installed on the top to help blend in with the floor.

Easy Installation

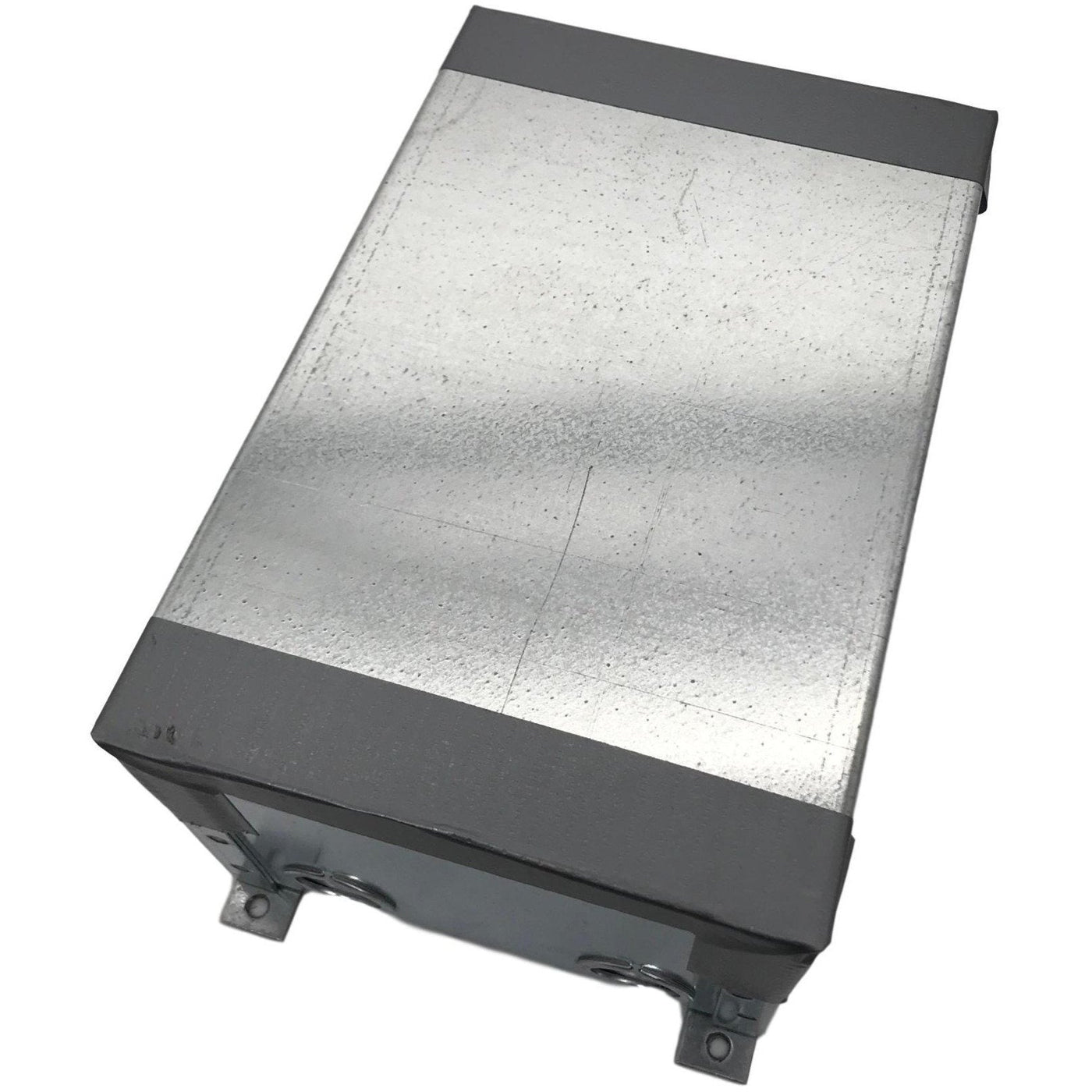

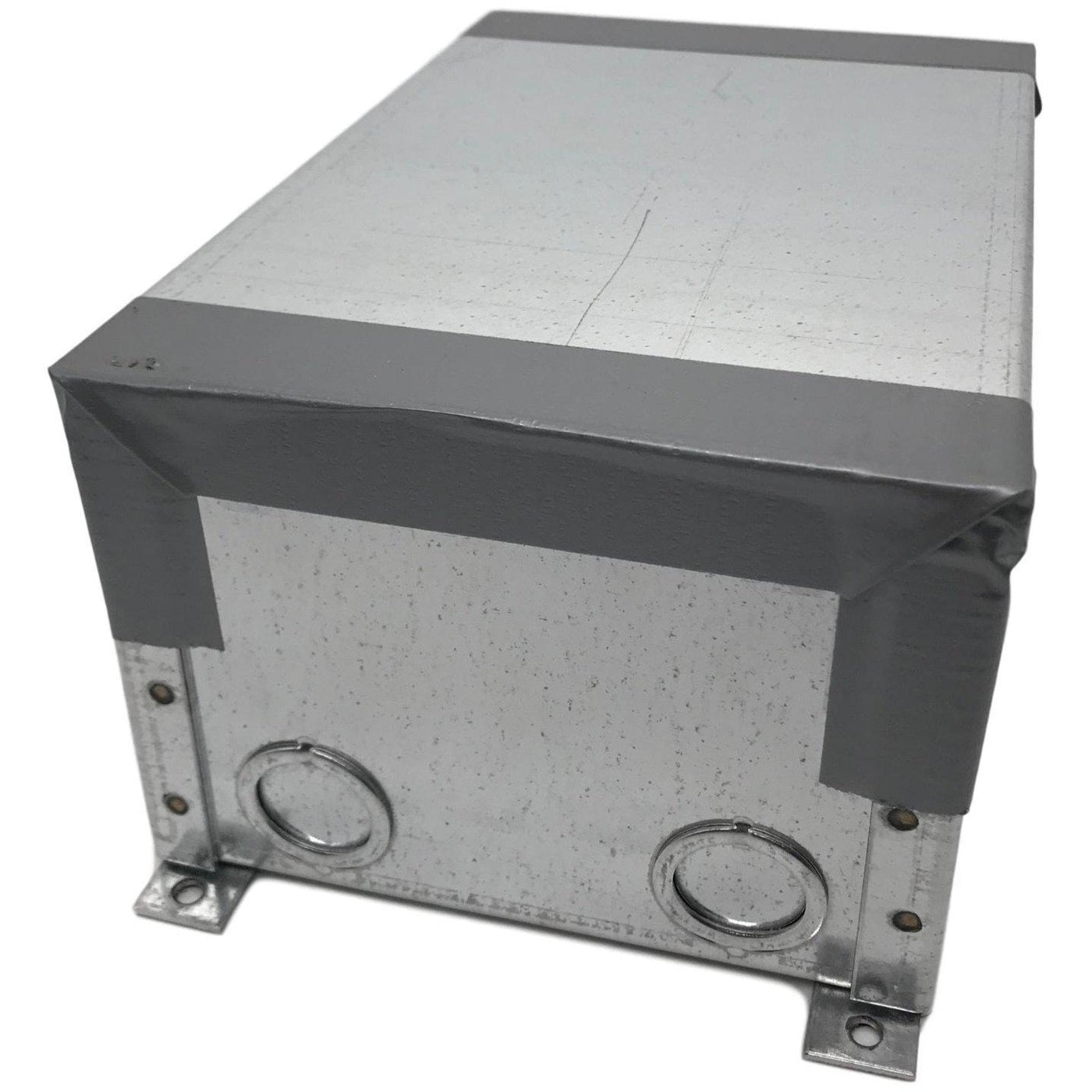

The box ships with a construction cover to be used while the concrete is being poured to keep the box safe and the inside clean.  The bottom of the box features 4 leveling feet allowing the installer to get the box level before the concrete is poured. To wire into the box there are 2 knockouts on each end of the box, there you can wire in your 1/2" or 3/4" conduit.

Customizable

Need help adding power and connections in this box?  Just not finding exactly what you want? If you need help finding the perfect floor box with your exact connections, we would love to help. Please contact us via live chat, or call 888-507-5957.

Specifications:

Color: Black
4 decora openings
Built in low voltage divider
Hinged lid with cable pass thru

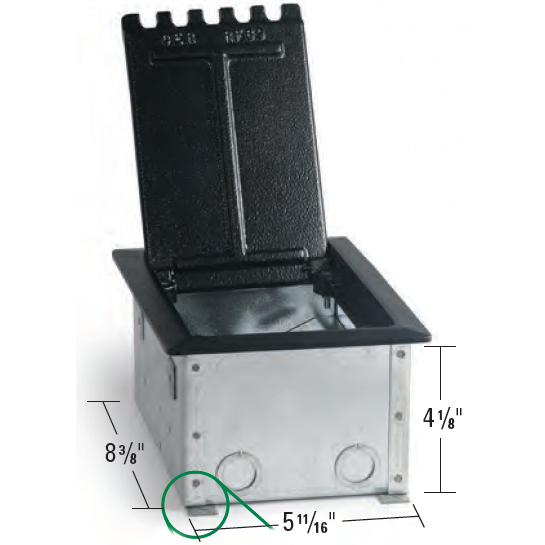

Depth: 4 1/8"
2 knockouts on each side, 1/2" or 3/4"
Cover construction: Cast aluminum
Box construction: 16 gauge galvanized steel
Configurable for future changes
4 leveling feet
Box size: 8 3/4" L x 5 11/16" W
Cover size: 9 11/16" L x 6 11/16" W
Minimum pour depth: 4 3/16"
Includes protective cover
Made in Canada
CSA approved
1 year warranty
Drawing (PDF)
Installation Manual (PDF)

Color: Black
4 decora openings
Built in low voltage divider
Hinged lid with cable pass thru
Depth: 4"
2 knockouts on each side, 1/2" or 3/4"
Cover construction: Cast aluminum
Box construction: 16 gauge galvanized steel
Configurable for future changes
4 leveling feet
Box size: 8 3/4" L x 5 11/16" W
Cover size: 9 11/16" L x 6 11/16" W
Minimum pour depth
Includes protective cover
Made in Canada
CSA approved
1 year warranty
Drawing (PDF)
Installation Manual (PDF)
