8x1 HDMI 2.0 Auto Sensing 4K60 4:4:4 Auto Switcher, HDR, HDCP 2.2

  |   Q&A

$364.99

Free shipping on orders over $99

Part #: VS0801HB
Vendor: ATEN
Ships from manufacturer
You will be notified within 1 business day of the expected ship date
Maximum quantity available reached.

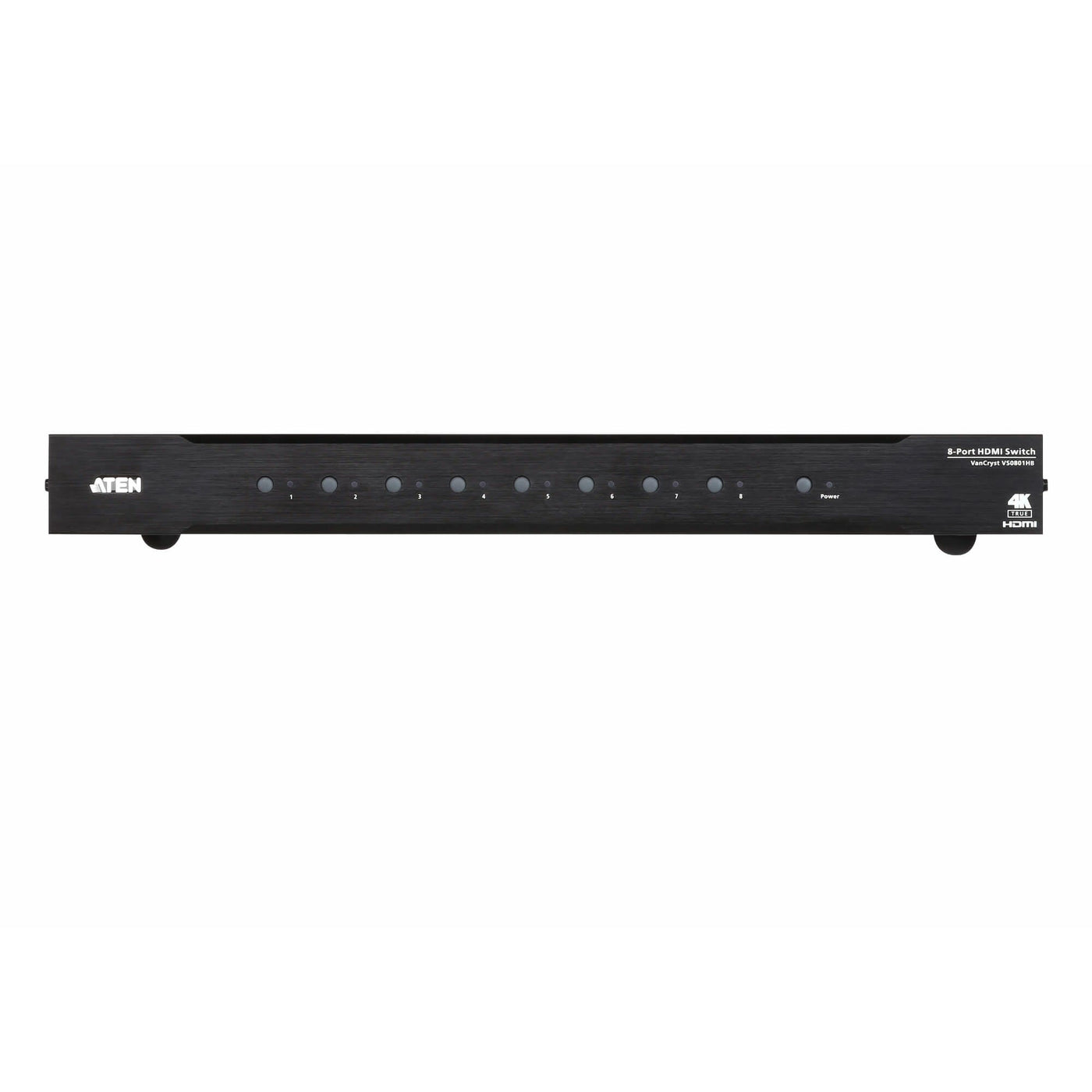

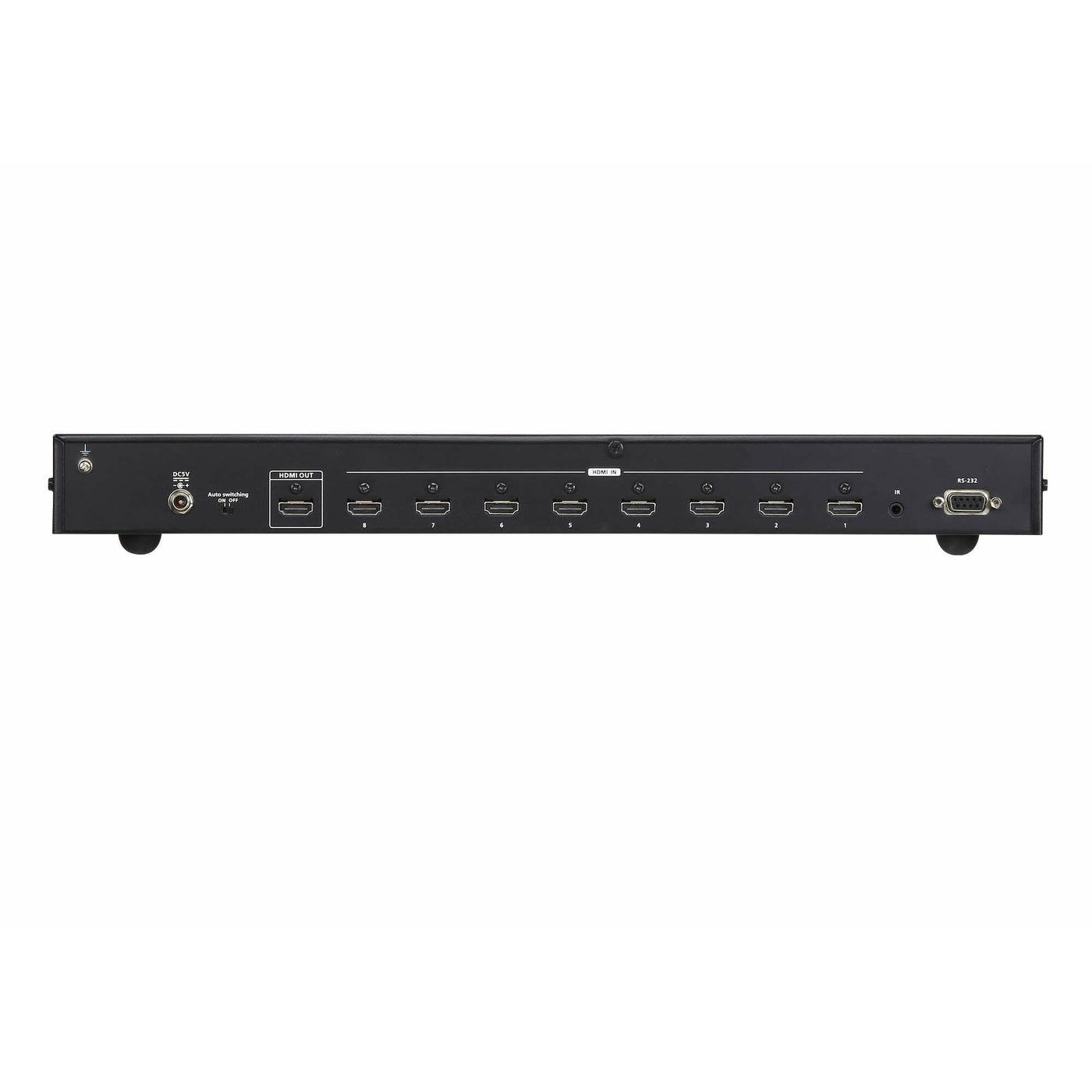

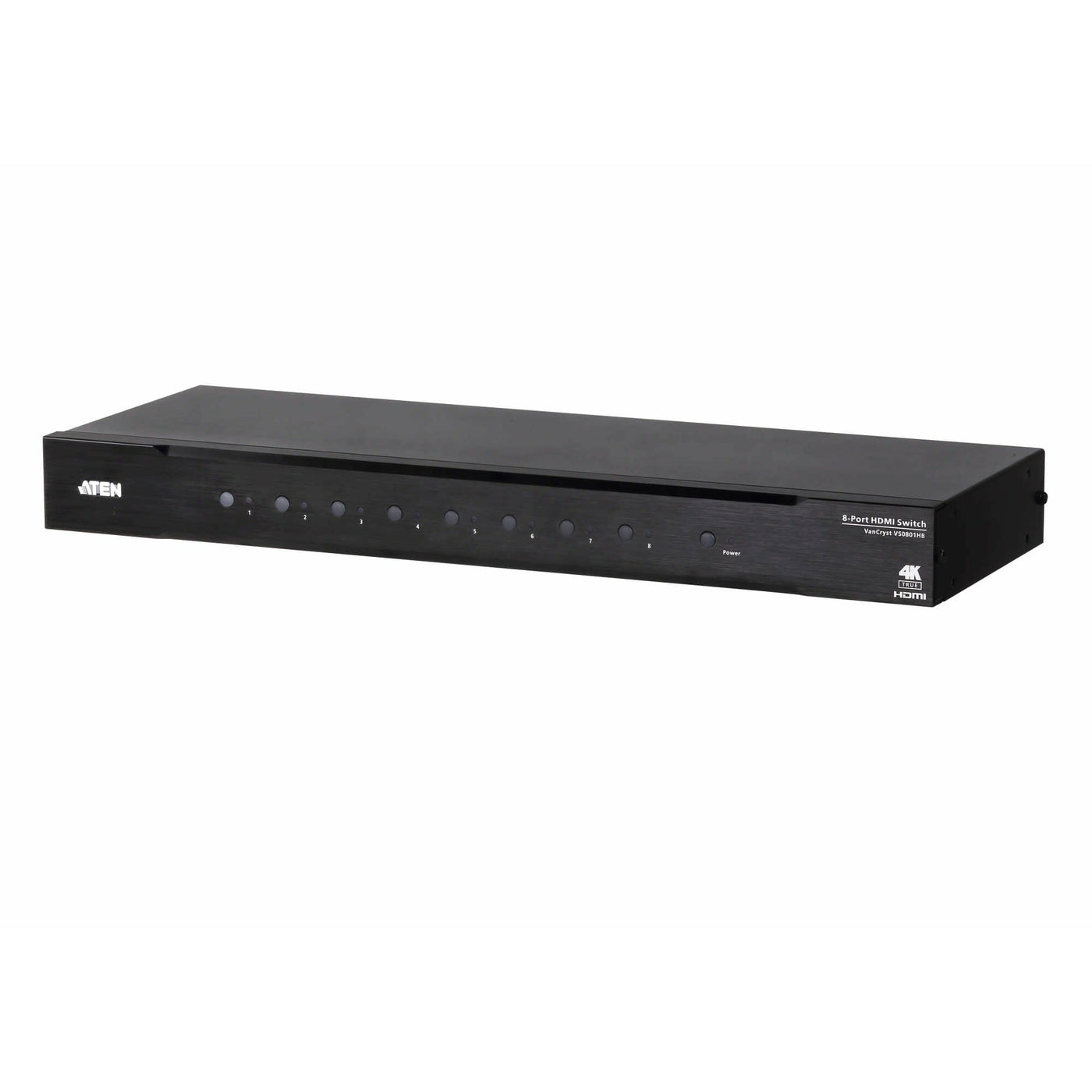

ATEN VS0801HB 8x1 Ultra HD 4K Auto Switcher

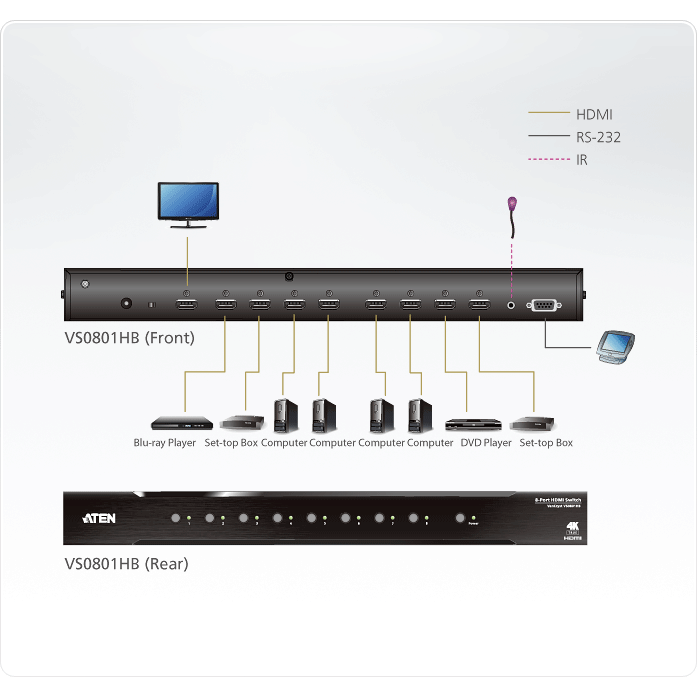

The ATEN 8x1 HDMI auto switcher features 8 HDMI input ports, 1 HDMI output port, and auto sense switching technology. This auto switcher is the only model on the market that features 8 HDMI inputs. The 8 HDMI inputs are auto switching, they will auto detect the last plugged in signal, and automatically switch on your TV, to the last input that was plugged in. There is only a single HDMI output that needs to be ran to your TV. Now you can connect up multiple HDMI sources to one HDMI display.

Why Do You Need An Auto Switcher?

Auto switchers are an affordable and easy solution for conference rooms, they typically mount directly under your audio video tabletop box that is installed in your table.  Plug the connections from the table box into the inputs, then run the HDMI output cable to the TV. They are also perfect for your home entertainment video switching needs at an affordable price.

There are two benefits to using an auto switcher:
#1. Only run one cable to your TV
#2. If you had run multiple cables to your TV, you would have to change the input on the TV remote, every time a user plugs into a different connection in the table box.

HDR 8x1 HDMI 4K60 4:4:4 Auto Switcher

The VS0801HB supports the latest 4K60 4:4:4 HDMI 2.0 technology, creating an ultra HD picture with HDR10+ support. The switcher supports HDCP 2.2 content, future proofing your purchase knowing that it can handle the latest encryption.

Easy Installation and Quick Setup

The switcher can also be used with the included IR remote, RS-232 for high end control, or via the push buttons. If you have a situation where manually switching inputs would work best, this switcher has you covered with four different ways to switch inputs.

This large switcher is extremely affordable for how many connections you get, and will cover any needs in a conference room, or any room that needs quick and easy HDMI auto sense switching with the highest resolution.

Specifications:

Inputs:  8 HDMI 2.0
Output:  1 HDMI 2.0
Video compliance:  HDCP 2.2
Bandwidth: 18Gbps
HDR 10+
Resolution: Up to 4K60, 4:4:4, 12-bit color
Supports IR extension
Switching: Auto, RS-232, remote, front panel
Includes: IR remote, power supply, IR receiver cable
Dimensions: 17.21" x 6.23" x 1.73"
Weight:  4.71lb
2 year warranty
ATEN VS0801HB Specifications (PDF)
ATEN VS0801HB Manual (PDF)

Inputs:  8 HDMI 2.0
Output:  1 HDMI 2.0
Video compliance:  HDCP 2.2
Bandwidth: 18Gbps
HDR 10+
Resolution: Up to 4K60, 4:4:4, 12-bit color
Supports IR extension
Switching: Auto, RS-232, remote, front panel
Includes: IR remote, power supply, IR receiver cable
Dimensions: 17.21" x 6.23" x 1.73"
Weight:  4.71lb
2 year warranty
ATEN VS0801HB Specifications (PDF)
ATEN VS0801HB Manual (PDF)
